Billet Narrow Dynalite Radial Mount

Wilwood · Étriers

Billet Narrow Dynalite Radial Mount

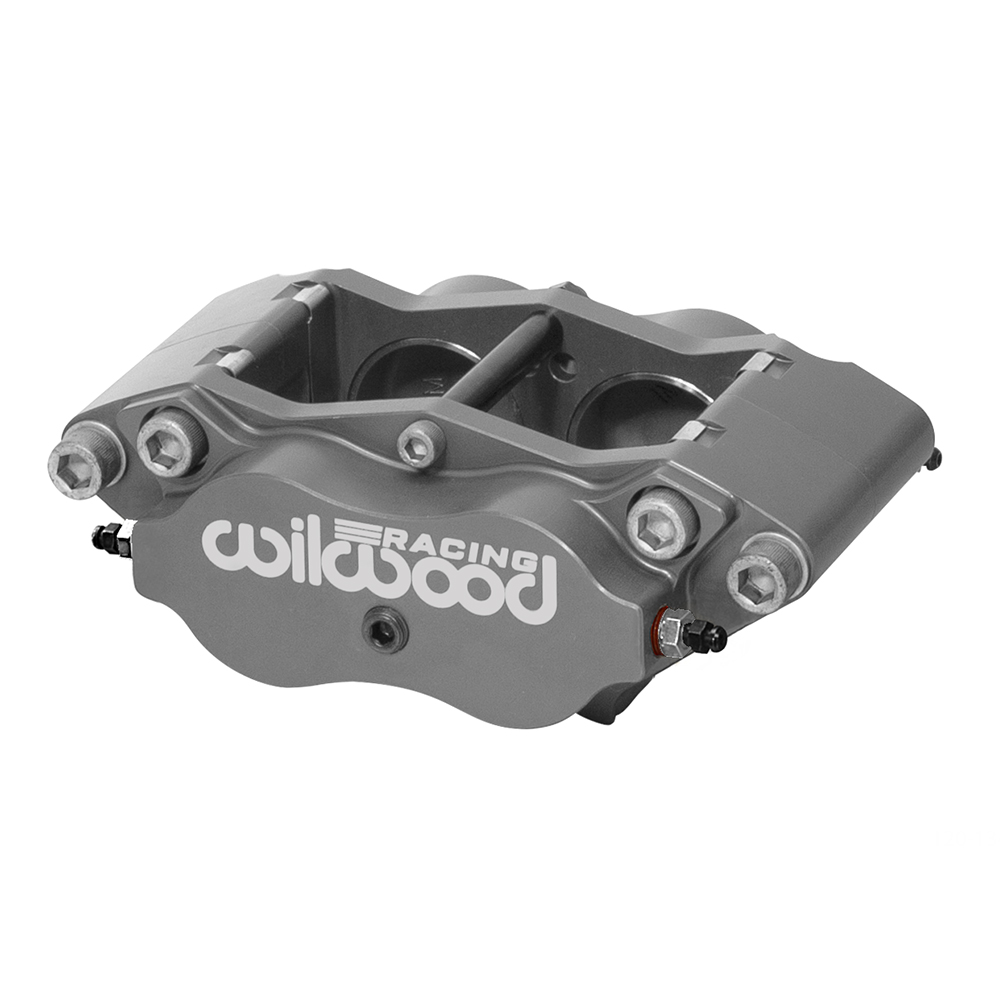

Wilwood's venerable DynaLite calipers are used in all forms of racing, and the latest Billet Narrow Dynalite Radial Mount (NDLR) series are better than ever. Starting at just 3.20 pounds, this compact and lightweight caliper now incorporates a more rigid radial mount design. Engineered with a spacer-less body specifically for .38”, .810” and 1.00" width rotors and a center bridge bolt adding to overall caliper strength and positive retention of the top-loaded pads. A durable aluminum-oxide ceramic Mil-Spec Type III hard-anodized finish further enhances the durability of the caliper by resisting bore wear and surface abrasion. Billet NDLR calipers can be directly mounted over studs on a 4.75" center, or used with a radial mount bracket kit in place of a tab-mount caliper. Internal damping springs, internal fluid crossover, controlled retraction in-bore seals, and 3/8” cross bolts for added strength and rigidity all adds up to consistent pedal feel from start to finish. Uses type 7816 brake pads with many Wilwood compound options to fine-tune your driving style and track conditions.

€ 349,19 € 377,12

TVA incluse

Référence: 120-15567-SI

C'est ce numéro que vous commandez.

Poids : 1,61 kg

Caractéristiques

Modèle
Billet Narrow Dynalite Radial Mount
Finition
Type III Anodize
Fixation
Radial Mount
Nombre de pistons
4
Diamètre de piston
44,5 mm
Surface de piston
3.096,8 mm²
Entraxe de fixation
120,6 mm
Épaisseur de disque
25,4 mm
Diamètre de disque max.
309,6 mm
Volume de plaquette
49,2 cm³
Forme de plaquette
7816
Matériau de piston
Stainless

Supports compatibles

Sélectionnés selon la même cote de fixation (120,6 mm, Radial Mount). Vérifiez les cotes : le diamètre des goujons ou des vis et les trous de l'étrier peuvent différer.

Afficher 13 supports de plus

Voir et affiner ces supports dans le tableau
