Wilwood · Étriers

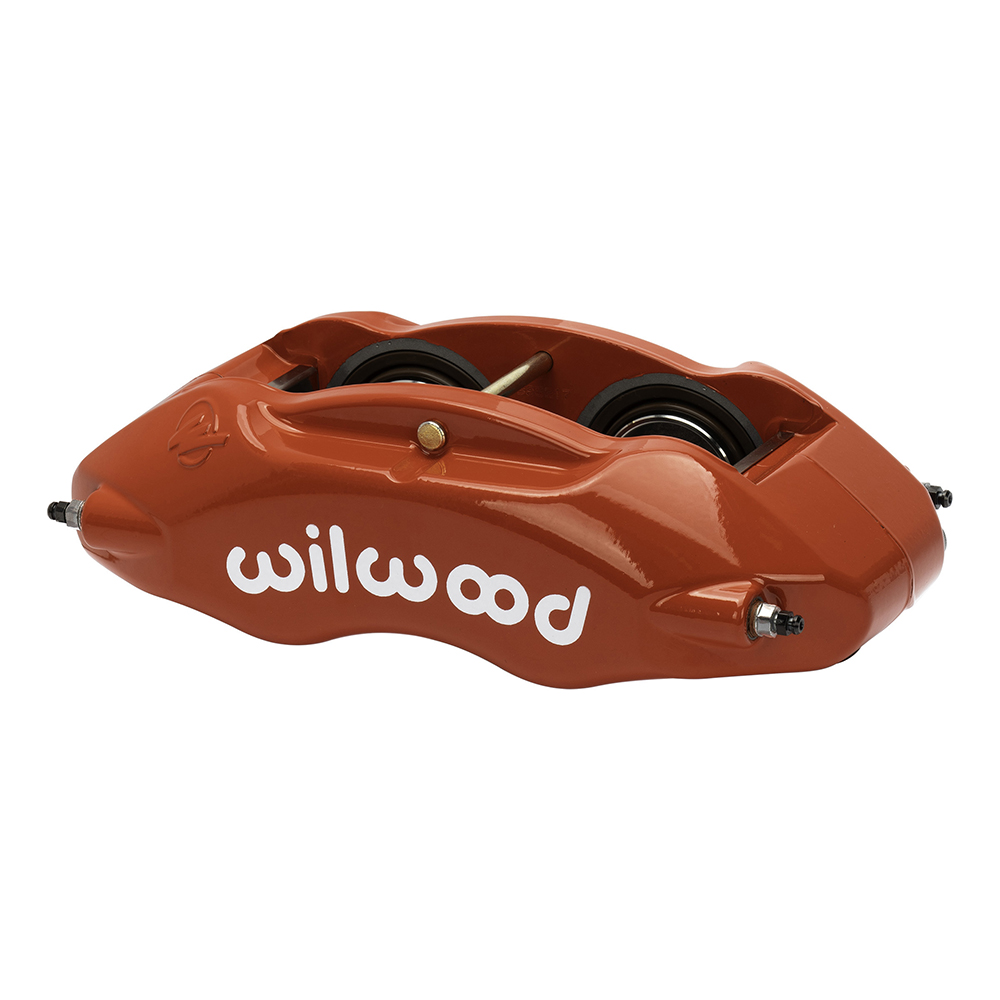

GNX4 Caliper
GNX4 calipers are the product of Wilwood's in-house FEA design and 3-D modeling technology. With its unyielding strength and superior piston design, the GNX4 generates positive pedal response and high clamping efficiency with a substantial weight savings over comparable OE Calipers. Base model calipers feature a natural aluminum finish protected by a durable clear coat anodizing. Forged billet aluminum bodies, stainless steel pistons, and high-temperature seals put an end to the rust, bore pitting, and seal failures that plague many OE caliper design. Warning: Current GNX4 caliper assemblies are designed solely for use with DOT 5 fluids and should not be used with DOT 3, 4 or 5.1 fluids. Note 1. Caliper for use with DOT 5 fluids only.
TVA incluse
Référence: 120-10754-RD
C'est ce numéro que vous commandez.
Poids : 3,49 kg
Caractéristiques
- Modèle
- GNX4 Caliper
- Finition
- Red Powder Coat
- Fixation
- Lug Mount
- Nombre de pistons
- 4
- Diamètre de piston
- 47,8 mm
- Surface de piston
- 3.587,1 mm²
- Entraxe de fixation
- 177,8 mm
- Épaisseur de disque
- 25,4 mm
- Diamètre de disque max.
- 331,7 mm
- Volume de plaquette
- 66,7 cm³
- Forme de plaquette
- 9115
- Matériau de piston
- Stainless
Supports compatibles
Sélectionnés selon la même cote de fixation (177,8 mm, Lug Mount). Vérifiez les cotes : le diamètre des goujons ou des vis et les trous de l'étrier peuvent différer.

Bracket Kit, Front - Lug Mount · disque 306,8 mm · L/H or R/H 250-11477
Bracket (ea) - GNX4 - HV1 - Front R/H
€ 221,38€ 239,10TVA incluse

Bracket Kit, Front - Lug Mount · disque 306,8 mm · L/H or R/H 250-11478
Bracket (ea) - GNX4 - HV1 - Front L/H
€ 221,38€ 239,10TVA incluse

Bracket Kit, Rear - Lug Mount · disque 306,8 mm · L/H or R/H 250-11479
Bracket (ea) - GNX4 - HV1 - Rear R/H
€ 163,35€ 176,42TVA incluse

Bracket Kit, Rear - Lug Mount · disque 306,8 mm · L/H or R/H 250-11480
Bracket (ea) - GNX4 - HV1 - Rear L/H
€ 163,35€ 176,42TVA incluse

Bracket Kit, Front - Lug Mount · disque 309,6 mm · L/H & R/H 249-13929/30
BRACKET KIT,D8,FRONT,BRONCO 76-77,DANA 4
Appelez pour le prix et la disponibilité
-
Bracket Kit, Front - Lug Mount · disque 309,6 mm · L/H or R/H 250-13931
BRACKET,CALIPER,D8,BRONCO 76-77
Appelez pour le prix et la disponibilité
