Wilwood · Remklauwen
WLD-20/ST

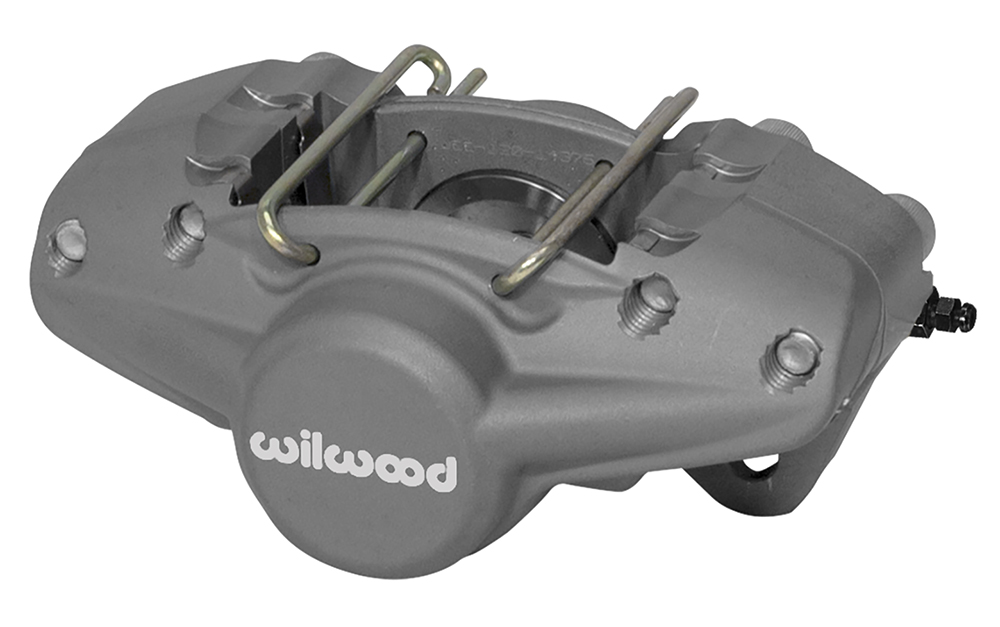

WLD-20 racing calipers provide the ultimate in strength, weight savings, and high efficiency brake clamping for F/F and all other formula category road race vehicles configured for use with the traditional LD20 lug mount style calipers. The calipers feature a high strength, light-weight 2.3 pound forged aluminum body fitted with machined stainless steel pistons in the standard WLD20 model, or heat-blocking Thermlock® pistons in the WLD20/ST models. All WDL20 series calipers utilize the same mounting centers, height and offset as the traditional LD20 calipers. The calipers accept WIlwood type 5214 brake pads, or any brake pad made to fit the original LD20 models.
incl. btw
Onderdeelnummer: 120-14376
Dit is het nummer dat je bestelt.
Gewicht: 1,18 kg
Specificaties
- Model
- WLD-20/ST
- Afwerking
- Type III Anodize
- Montage
- Lug Mount
- Aantal zuigers
- 2
- Zuigerdiameter
- 44,5 mm
- Zuigeroppervlak
- 1.548,4 mm²
- Bevestigingsmaat
- 88,9 mm
- Schijfdikte
- 9,7 mm
- Max. schijfdiameter
- 254 mm
- Remblokvolume
- 42,9 cm³
- Remblokmodel
- 5214
- Zuigermateriaal
- Thermlock
Passende brackets
Gekozen op dezelfde bevestigingsmaat (88,9 mm, Lug Mount). Controleer de maten: de dikte van de studs of bouten en de gaten in de remklauw kunnen verschillen.
