Wilwood · Remklauwen

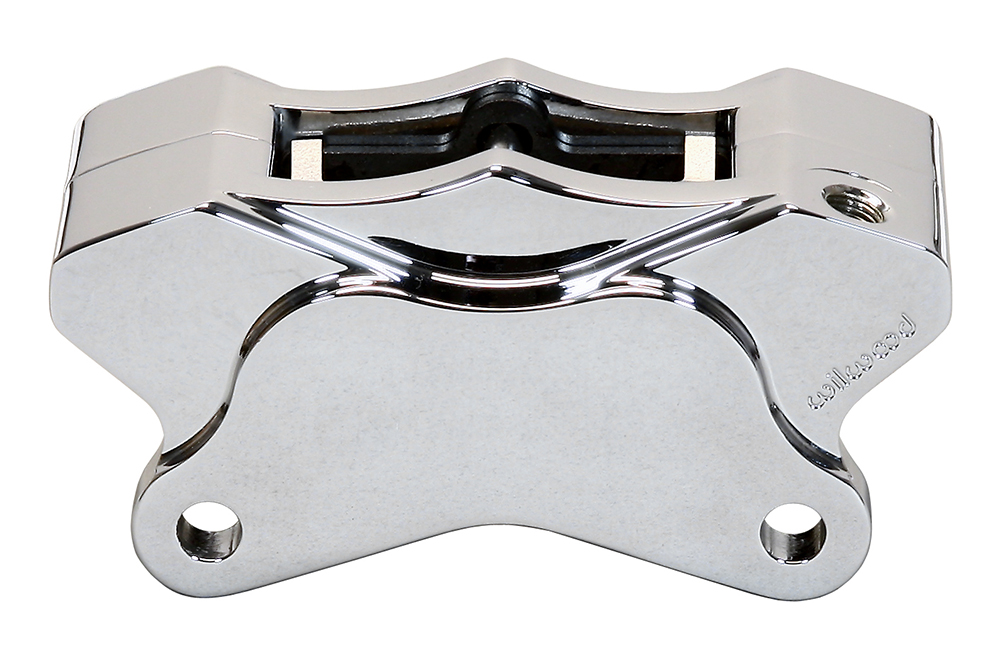

GP310 Motorcycle Rear (Sprocket Brake)
Wilwood's GP310 Motorcycle Rear Sprocket brake caliper has been designed and engineered for use on Custom Harley-Davidson® Motorcycles. Built around a 4-piston, high performance powerhouse, this billet aluminum caliper brings distinctive, bolt-on styling: Bracket-mounted calipers are available for 48 and 51 tooth applications Note 1. Harley-Davidson® Rear Sprocket Brake Calipers (Requires additional bracket assembly, Sprocket and custom installation.)
incl. btw
Onderdeelnummer: 120-10174
Dit is het nummer dat je bestelt.

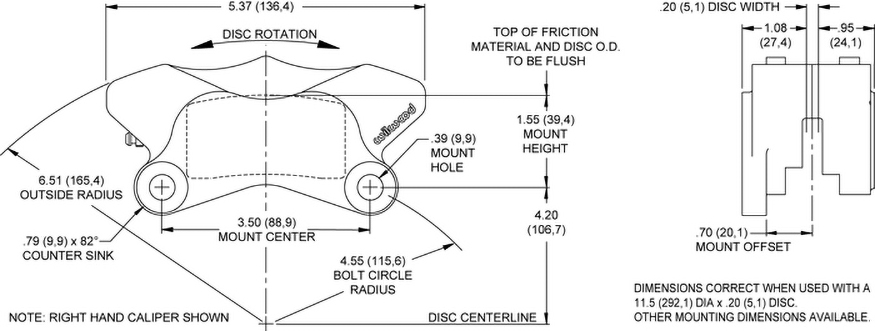

Specificaties
- Model
- GP310 Motorcycle Rear (Sprocket Brake)
- Afwerking
- Chrome
- Montage
- Lug Mount
- Aantal zuigers
- 4
- Zuigerdiameter
- 31,8 mm
- Zuigeroppervlak
- 1.587,1 mm²
- Bevestigingsmaat
- 88,9 mm
- Schijfdikte
- 8,9 mm
- Max. schijfdiameter
- 292,1 mm
- Remblokvolume
- 10,3 cm³
- Remblokmodel
- 6208
- Zuigermateriaal
- Stainless
Passende brackets
Gekozen op dezelfde bevestigingsmaat (88,9 mm, Lug Mount). Controleer de maten: de dikte van de studs of bouten en de gaten in de remklauw kunnen verschillen.
Bracket Kit, Rear - Motorcycle · schijf 251 mm 250-10177-P
Caliper Mounting Kit, Chrome,w/Bracket — GP310,Sprocket Brake, 48 Tooth
€ 285,69€ 379,59incl. btw
Bracket Kit, Rear - Motorcycle · schijf 268,5 mm 250-10180-P
Caliper Mounting Kit, Chrome,w/Bracket — GP310,Sprocket Brake, 51 Tooth
€ 285,69€ 379,59incl. btw
Bracket Kit, Open Wheel - Front Asphalt Midget · schijf 266,7 mm · L/H & R/H 250-10534
Caliper Bracket Kit, GP320, Midget Top Mount 10.50 Rotor
€ 110,45€ 119,28incl. btw
Bracket Kit, Open Wheel - Right or Left Rear · schijf 266,7 mm · R/H 250-13411
Caliper Bracket Right Rear Sprint 10.50" Rotor GP320
€ 44,12€ 47,65incl. btw
Bracket Kit, Open Wheel - Left Front Sprint · schijf 266,7 mm · L/H 250-16236
Caliper Bracket Left Front Sprint 10.50" Rotor GP320
€ 83,22€ 89,88incl. btw
Bracket Kit, Rear - Motorcycle · schijf 292,1 mm 250-8033
Caliper Mounting Kit,Chrome,w/Bracket — GP310,2000-Present Dyna
€ 329,43€ 437,71incl. btw
Toon nog 4 brackets
Bracket Kit, Rear - Motorcycle · schijf 292,1 mm 250-8033-P
Caliper Mounting Kit,Polished, w/Bracket — GP310,2000-Present Dyna
€ 285,69€ 379,59incl. btw
Bracket Kit, Rear - Motorcycle · schijf 292,1 mm 250-8034
Caliper Mounting Kit,Chrome,w/Bracket — GP310,1984-99 Dyna
€ 481,13€ 639,26incl. btw
Bracket Kit, Rear - Motorcycle · schijf 292,1 mm 250-8035
Caliper Mounting Kit,Chrome, w/Bracket — GP310,1984-99 Softail
€ 307,44€ 408,48incl. btw
Bracket Kit, Rear - Motorcycle · schijf 292,1 mm 250-8036
Caliper Mounting Kit, Chrome,w/Bracket — GP310,2000-Present Softail
€ 307,44€ 408,48incl. btw
