Wilwood · Calipers
DH4 Dual Hydraulic

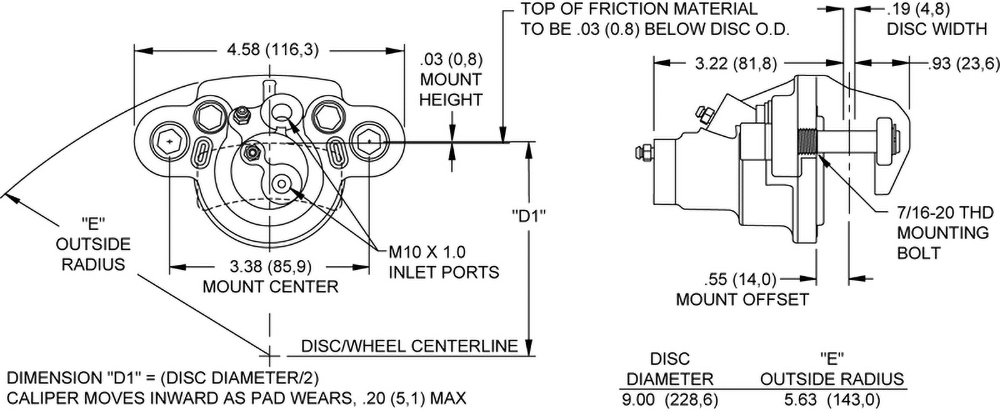

Wilwood’s DH4, Dual Hydraulic Calipers offers a step bore piston with a unique primary braking circuit and an additional isolated secondary hydraulic actuated parking brake. Primary piston bore is 1.50” inches, secondary is .94 “diameter and is further isolated with dual 10mm x 1.00 fluid inlets. Designed for rotors no larger 9.00” diameter and .19” width. DH4 caliper feature a floating, single piston design with 3.38” wide slide pin mounting. The DH4’s Low squeeze version use a modified seal design to maximize piston retraction in applications where low drag is paramount. Calipers are supplied without brackets. Additional steel brackets are available.
Call for price and availability
Call us: 020-6862709Part number: 120-8476
This is the number you are ordering.
Specifications
- Model
- DH4 Dual Hydraulic
- Finish
- Clear Anodize
- Mount
- Floating Mount
- Pistons
- 1
- Piston diameter
- 38,1 mm
- Piston area
- 1.141,9 mm²
- Mount size
- 85,9 mm
- Rotor width
- 4,8 mm
- Max. rotor diameter
- 228,6 mm
- Pad volume
- 5,4 cm³
- Pad plate
- 4508
- Piston material
- Aluminum
