Wilwood · Calipers

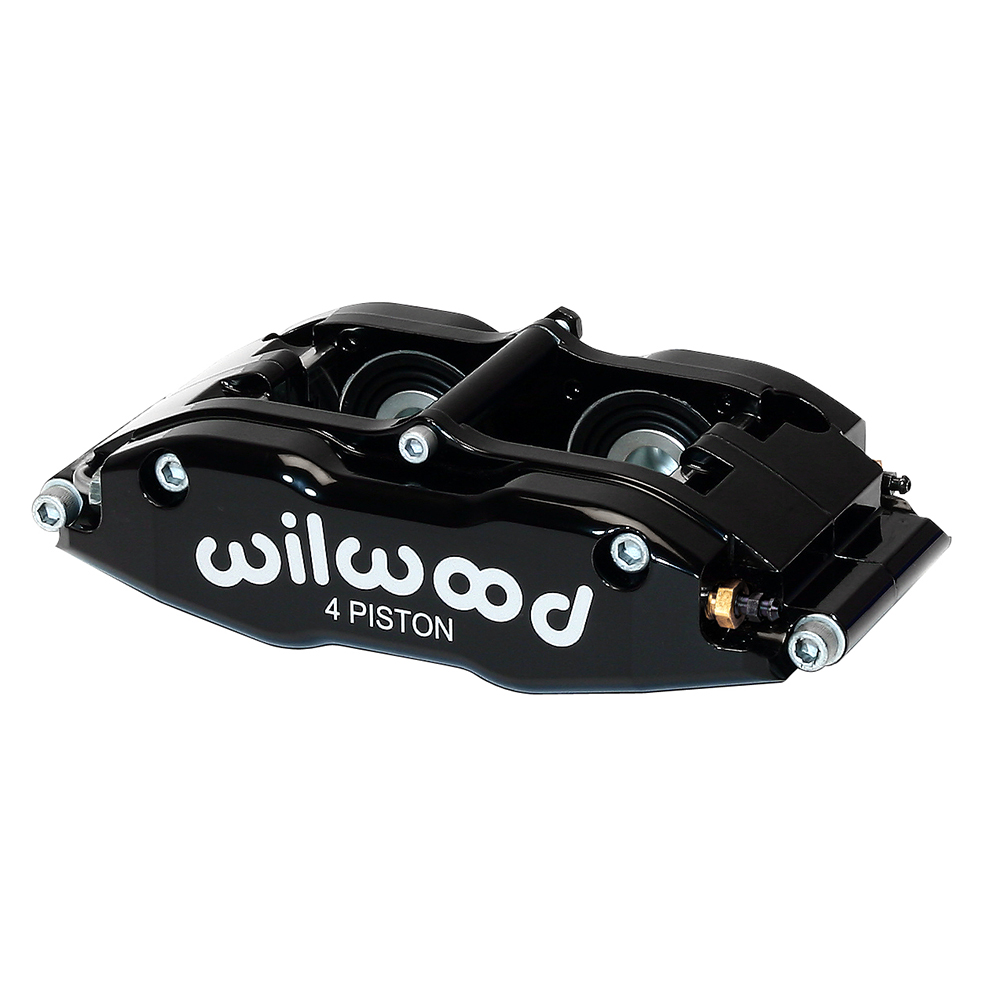

Billet Narrow Superlite 4
The Superlite caliper series has set the standard for many years in short track, late model, modified and open wheel competition. It has also enjoyed prominence in a variety of road-race, off-road, rally and sport driving applications. Starting at 4.40 pounds, the Forged Billet Narrow Superlite (FNSLR) is innovation to this series from Wilwood. New and adaptive technologies have been applied providing substantial improvements in strength, fluid volume displacement, and overall performance. FNSL4R calipers are the the only Superlite series calipers with piston dust boots, primarily for export mandates.
incl. VAT
Part number: 120-8062-L
This is the number you are ordering.
Weight: 2,27 kg
Specifications
- Model
- Billet Narrow Superlite 4
- Finish
- Black Powder Coat
- Mount
- Radial Mount
- Pistons
- 4
- Piston diameter
- 31,8 mm
- Piston area
- 1.587,1 mm²
- Mount size
- 151,9 mm
- Rotor width
- 27,9 mm
- Max. rotor diameter
- 355,6 mm
- Pad volume
- 62,3 cm³
- Pad plate
- 7416
- Piston material
- Aluminum
Matching brackets
Selected by the same mount size (151,9 mm, Radial Mount). Check the dimensions: the stud or bolt diameter and the holes in the caliper may differ.
Bracket Kit, Open Wheel - Front · rotor 298,5 mm · L/H & R/H 249-14497/98
Brackets (2) - Front Sprint DPR Dynamic 11.75"
€ 198,86€ 214,78incl. VAT
Bracket Kit, Caliper Mounting (Racing) · rotor 298,5 mm · L/H & R/H 249-16484/85
Caliper Mounting Bracket-XRZ4R-11.75" RTR-3.50" Mount-10 deg Clock
€ 187,42€ 202,41incl. VAT
Bracket Kit, Caliper Mounting (Racing) · rotor 298,5 mm · L/H & R/H 249-16488/89
Caliper Mounting Bracket-FSL4R/FSL6R-11.75" RTR-3.50" Mount-5 deg Clock
€ 187,42€ 202,41incl. VAT
Bracket Kit, Caliper Mount, Disc/Drum · rotor 327,2 mm · L/H & R/H 249-9632L/R
Brackets (2) - w/Mounting Kit - SL4R - P-Brake Kit 13" Rotor
€ 260,74€ 281,60incl. VAT
Bracket Kit, Caliper Mount, Disc/Drum · rotor 355,6 mm · L/H & R/H 249-9633L/R
Brackets (2) - w/Mounting Kit - SL4R - P-Brake Kit 14" Rotor
€ 282,83€ 305,45incl. VAT
Bracket Kit, Front - Radial Mount · rotor 331,7 mm · L/H or R/H 250-10147
Caliper Mounting Kit,w/ Bracket, BNSL6 / BNSL4 to 3.50" SL Mount
€ 154,59€ 166,97incl. VAT
Show 34 more brackets
Bracket Kit, Rear · rotor 309,6 mm · L/H or R/H 250-14296
Caliper Mounting Kit w/Bracket-FNSLR, Tiger Rear End
€ 139,14€ 150,27incl. VAT
Bracket Kit, Caliper Mounting (Racing) · rotor 309,6 mm · L/H or R/H 250-14393
Bracket Kit-FSL4/6R-3.50" MT,Modified / Late Model, 12.19" Rotor
€ 112,80€ 121,82incl. VAT
Bracket Kit, Open Wheel - Front · rotor 309,6 mm · L/H or R/H 250-15316
Bracket Kit-FSL4/6R-3.40" MT,Modified / Late Model, updated
€ 133,84€ 144,55incl. VAT
Bracket Kit, Front - Radial Mount · rotor 327,2 mm · L/H or R/H 250-6249
Caliper Mounting Kits w/Bracket-SL6R Mustang 94-04, 12.88 Rotor
€ 217,03€ 234,39incl. VAT
Bracket Kit, Caliper Mounting (Racing) · rotor 327,2 mm · L/H or R/H 250-6308
Caliper Mounting Kits w/Bracket-SL6R-5.25" Mount
€ 217,03€ 234,39incl. VAT
Bracket Kit, Caliper Mount · rotor 331,7 mm · L/H or R/H 250-7691
Caliper Mounting Kits w/Bracket-SL6R 98-02 "F" Body,Front
€ 217,03€ 234,39incl. VAT
Bracket Kit, Rear · rotor 327,2 mm · L/H or R/H 250-8168
Caliper Mounting Kits w/Bracket-SL4R 97-03 'Vette,12.90" Rtr,Rear
€ 291,34€ 314,65incl. VAT
Bracket Kit, Front - Radial Mount · rotor 309,6 mm · L/H or R/H 250-8271
Caliper Mounting Kits w/Bracket-DPR 99-03 VW/Audi- Jetta/Golf/TT
€ 217,03€ 234,39incl. VAT
Bracket Kit, Front - Radial Mount · rotor 309,6 mm · L/H or R/H 250-8322
Caliper Mounting Kits w/Bracket-DPR 95-99 Mitsubishi Eclipse
€ 217,03€ 234,39incl. VAT
Bracket Kit, Front - Radial Mount · rotor 331,7 mm · L/H or R/H 250-8519
Caliper Mounting Kits w/Bracket-SL6R 88-96 Vette,13" Rotor,Frnt
€ 291,34€ 314,65incl. VAT
Bracket Kit, Front - Radial Mount · rotor 309,6 mm · L/H or R/H 250-8694
Caliper Mounting Kits w/Bracket-DPR Mini Cooper
€ 217,03€ 234,39incl. VAT
Bracket Kit, Front - Radial Mount · rotor 331,7 mm · L/H or R/H 250-8759
Caliper Mounting Kits w/Bracket-SL6R 2005 GTO,13" Rotor,Frnt
€ 291,34€ 314,65incl. VAT
Bracket Kit, Rear · rotor 309,6 mm · L/H or R/H 250-8761
Caliper Mounting Kits w/Bracket-2005 GTO-Rear
€ 217,03€ 234,39incl. VAT
Bracket Kit, Front - Radial Mount · rotor 327,2 mm · L/H or R/H 250-9130
Caliper Bracket Kit-FNSL6R 94-05 Mustang,13.00" Rotor,Front
€ 217,03€ 234,39incl. VAT
Bracket Kit, Open Wheel - Inboard Sprint · rotor 298,5 mm · L/H 250-9271
Caliper Mounting Kit w/Bracket-DPR-3.50" Mount, 11.75" Rotor,Sprint
€ 190,87€ 206,14incl. VAT
-
Bracket Kit, Rear · rotor 279,4 mm · L/H & R/H 249-10214/15
BRACKET KIT,CALIPER,CIVIC/INTEGRA,DRUM
Call for price and availability
Bracket Kit, Rear · rotor 309,6 mm · L/H & R/H 249-10222/23
BRACKET KIT,CALIPER,CPB,CIVIC/INTEGRA
Call for price and availability
Bracket Kit, Rear · rotor 309,6 mm · L/H & R/H 249-12393/94
BRACKET KIT,CPB,IRS,8.8 T-BIRD
Call for price and availability
Bracket Kit, Front - Radial Mount · rotor 309,6 mm · L/H & R/H 249-12610/11
BRACKET KIT,FNSL4R,JEEP WRANGLER CJ
Call for price and availability
Bracket Kit, Front - Radial Mount · rotor 327,2 mm · L/H & R/H 249-13591/92
BRACKET KIT,CALIPER,RADIAL MT,FRONT
Call for price and availability
Bracket Kit, Front - Radial Mount · rotor 355,6 mm · L/H & R/H 249-13669/70
BRACKET KIT,CALIPER,RADIAL MT,FRONT
Call for price and availability
Bracket Kit, Front - Radial Mount · rotor 309,6 mm · L/H & R/H 249-14593/94
BRACKET KIT,CALIPER MT,RADIAL,CPB,12.19
Call for price and availability
Bracket Kit, Rear,FNSL-MC4 · rotor 327,2 mm · L/H or R/H 249-14886/87
BRACKET KIT,REAR,C4 VETTE,88-96,FNSL4R/
Call for price and availability
Bracket Kit, Rear · rotor 327,2 mm · L/H & R/H 249-15141/42
BRACKET KIT,REAR,FFR,IRS,2015 MUSTANG
Call for price and availability
Bracket Kit, Rear · rotor 355,6 mm · L/H & R/H 249-15349/50
BRACKET KIT,REAR,FNSL,DSE,VETTE 63-79
Call for price and availability
Bracket Kit, Caliper Mount, Disc/Drum · rotor 327,2 mm · L/H & R/H 249-16335/36
BRACKET KIT,DISC/DRUM,CALIPER MT,FNSLR
Call for price and availability
Bracket Kit, Front - Radial Mount · rotor 327,2 mm · L/H & R/H 249-16811/12
BRACKET KIT,CALIPER,FNSL6R,MUSTANG II/
Call for price and availability
Bracket Kit, Front - Radial Mount · rotor 355,6 mm · L/H & R/H 249-16813/14
BRACKET KIT,CALIPER,FNSL6R,MUSTANG II/
Call for price and availability
Bracket Kit, Disc/Drum - FNSLR · rotor 355,6 mm · L/H & R/H 249-17537/38
BRACKET KIT,DISC/DRUM,CALIPER MT,FNSLR
Call for price and availability
Bracket Kit, Rear · rotor 327,2 mm · L/H or R/H 250-10026
BRACKET KIT,CALIPER,CPB,MUSTANG 05-UP
Call for price and availability
Bracket Kit, Rear · rotor 327,2 mm · L/H or R/H 250-10157
BRACKET KIT,CALIPER,CPB,MUSTANG 94-04
Call for price and availability
Bracket Kit, Rear · rotor 279,4 mm – 309,6 mm · L/H or R/H 250-10212
BRACKET KIT,CPB,REAR,BRAKE KIT,11.00/
Call for price and availability
Bracket Kit, Front - Radial Mount · rotor 327,2 mm · L/H or R/H 250-10250
BRACKET KIT,CALIPER,FNSL6R,GM,58-64
Call for price and availability
Bracket Kit, Front - Radial Mount · rotor 355,6 mm · L/H or R/H 250-10285
BRACKET KIT,CALIPER,FNSL6R,GM,58-64
Call for price and availability
The first 40 of 184 brackets are shown here. View and refine these brackets in the table
