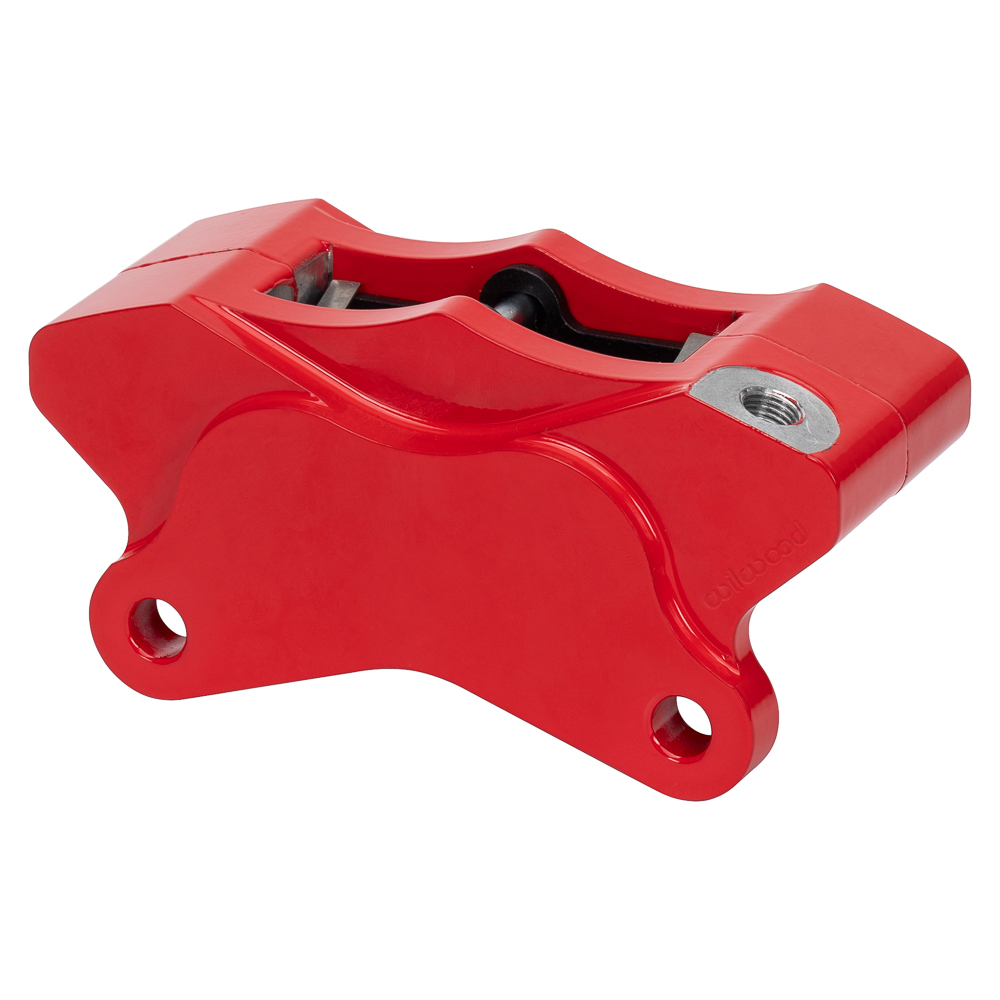

GP310 Motorcycle Rear (1984-UP)
Wilwood's GP310 Rear motorcycle disc brake caliper has been designed and engineered for use on 1984 - present Harley-Davidson® Motorcycles. Built around a 4-piston, high performance powerhouse, this billet aluminum caliper brings distinctive, bolt-on styling: Bracket-mounted calipers with a standard 3.50" mount spacing are available for all most models (except Springer and 4-speed FL models). Note 1. 1984 to Present Harley-Davidson® Rear Calipers (Requires additional bracket assembly.)
incl. VAT
Part number: 120-7740-RD
This is the number you are ordering.
Weight: 0,95 kg
Specifications
- Model
- GP310 Motorcycle Rear (1984-UP)
- Finish
- Red Powder Coat
- Mount
- Lug Mount
- Pistons
- 4
- Piston diameter
- 31,8 mm
- Piston area
- 1.587,1 mm²
- Mount size
- 88,9 mm
- Rotor width
- 6,3 mm
- Max. rotor diameter
- 292,1 mm
- Pad volume
- 10,3 cm³
- Pad plate
- 6208
- Piston material
- Stainless
Matching brackets
Selected by the same mount size (88,9 mm, Lug Mount). Check the dimensions: the stud or bolt diameter and the holes in the caliper may differ.
Bracket Kit, Rear - Motorcycle · rotor 251 mm 250-10177-P
Caliper Mounting Kit, Chrome,w/Bracket — GP310,Sprocket Brake, 48 Tooth
€ 285,69€ 379,59incl. VAT
Bracket Kit, Rear - Motorcycle · rotor 268,5 mm 250-10180-P
Caliper Mounting Kit, Chrome,w/Bracket — GP310,Sprocket Brake, 51 Tooth
€ 285,69€ 379,59incl. VAT
Bracket Kit, Open Wheel - Front Asphalt Midget · rotor 266,7 mm · L/H & R/H 250-10534
Caliper Bracket Kit, GP320, Midget Top Mount 10.50 Rotor
€ 110,45€ 119,28incl. VAT
Bracket Kit, Open Wheel - Right or Left Rear · rotor 266,7 mm · R/H 250-13411
Caliper Bracket Right Rear Sprint 10.50" Rotor GP320
€ 44,12€ 47,65incl. VAT
Bracket Kit, Open Wheel - Left Front Sprint · rotor 266,7 mm · L/H 250-16236
Caliper Bracket Left Front Sprint 10.50" Rotor GP320
€ 83,22€ 89,88incl. VAT
Bracket Kit, Rear - Motorcycle · rotor 292,1 mm 250-8033
Caliper Mounting Kit,Chrome,w/Bracket — GP310,2000-Present Dyna
€ 329,43€ 437,71incl. VAT
Show 4 more brackets
Bracket Kit, Rear - Motorcycle · rotor 292,1 mm 250-8033-P
Caliper Mounting Kit,Polished, w/Bracket — GP310,2000-Present Dyna
€ 285,69€ 379,59incl. VAT
Bracket Kit, Rear - Motorcycle · rotor 292,1 mm 250-8034
Caliper Mounting Kit,Chrome,w/Bracket — GP310,1984-99 Dyna
€ 481,13€ 639,26incl. VAT
Bracket Kit, Rear - Motorcycle · rotor 292,1 mm 250-8035
Caliper Mounting Kit,Chrome, w/Bracket — GP310,1984-99 Softail
€ 307,44€ 408,48incl. VAT
Bracket Kit, Rear - Motorcycle · rotor 292,1 mm 250-8036
Caliper Mounting Kit, Chrome,w/Bracket — GP310,2000-Present Softail
€ 307,44€ 408,48incl. VAT
