Wilwood · Calipers

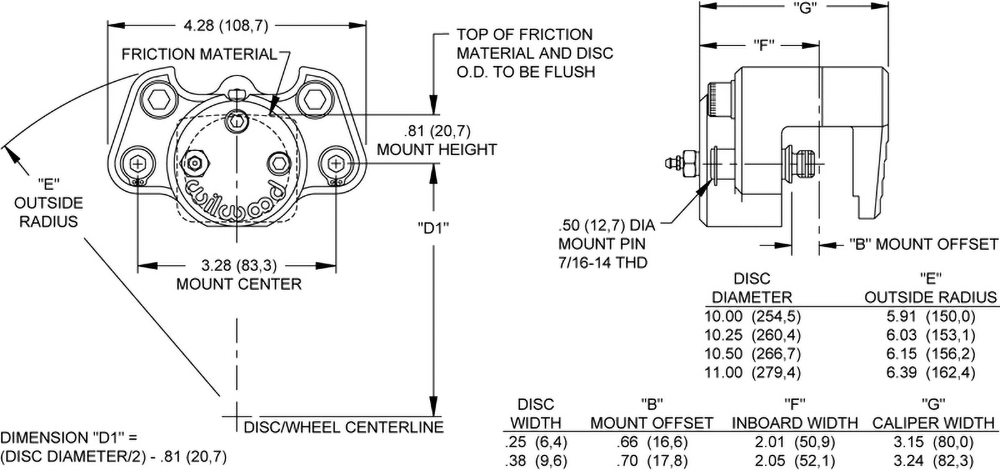

Dynalite Single Floater
Wilwood’s Dynalite Single Floater is a single piston billet caliper designed for Open Wheel, Drag Race, Karting and Motorcycle applications. The rigid outboard anvil half’s low profile design allows it to fit in tight clearance situations where opposed piston designs will not. Weighing just 1.40 pounds, the caliper uses the same .49” thick, 1.1 cubic inch Dynalite Single quick change pads. Multiple 1/8-27 NPT inlet and bleed screw locations allow for versatile mounting positions. It comes with precision machined dry lubricated slide pins for bind-free operation. The Dynalite Single Floater is black anodized to resist corrosion and fits rotors from .25” to .38” wide and diameters from 6.00” to 13.00”.
incl. VAT
Part number: 120-2498
This is the number you are ordering.
Weight: 0,73 kg
Specifications
- Model
- Dynalite Single Floater
- Finish
- Type III Anodize
- Mount
- Floating Mount
- Pistons
- 1
- Piston diameter
- 44,5 mm
- Piston area
- 1.548,4 mm²
- Mount size
- 83,3 mm
- Rotor width
- 6,3 mm
- Max. rotor diameter
- 330,2 mm
- Pad volume
- 18 cm³
- Pad plate
- 6812
- Piston material
- Stainless
Matching brackets
Selected by the same mount size (83,3 mm, Floating Mount). Check the dimensions: the stud or bolt diameter and the holes in the caliper may differ.
