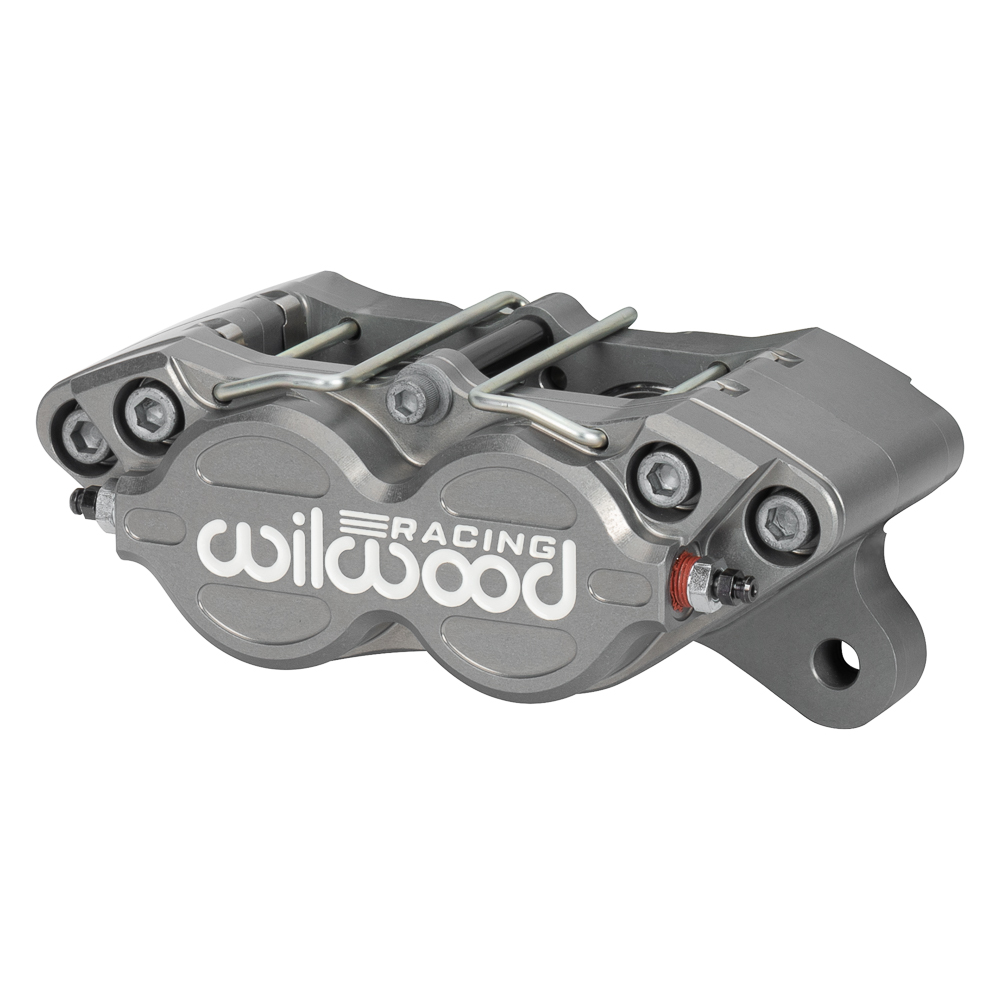

Forged XRD Lug Mount
The XRD Lug Mount forged caliper represents the newest generation of calipers available as an upgrade or replacement for applications previously using the long-standing Dynalite model series. XRD calipers combine pure race technology with several new exclusive Wilwood performance enhancements. A sleek profile with superior strength and a fully detail machined finish provide the performance for competition.
incl. VAT
Part number: 120-17866
This is the number you are ordering.
Weight: 1,52 kg

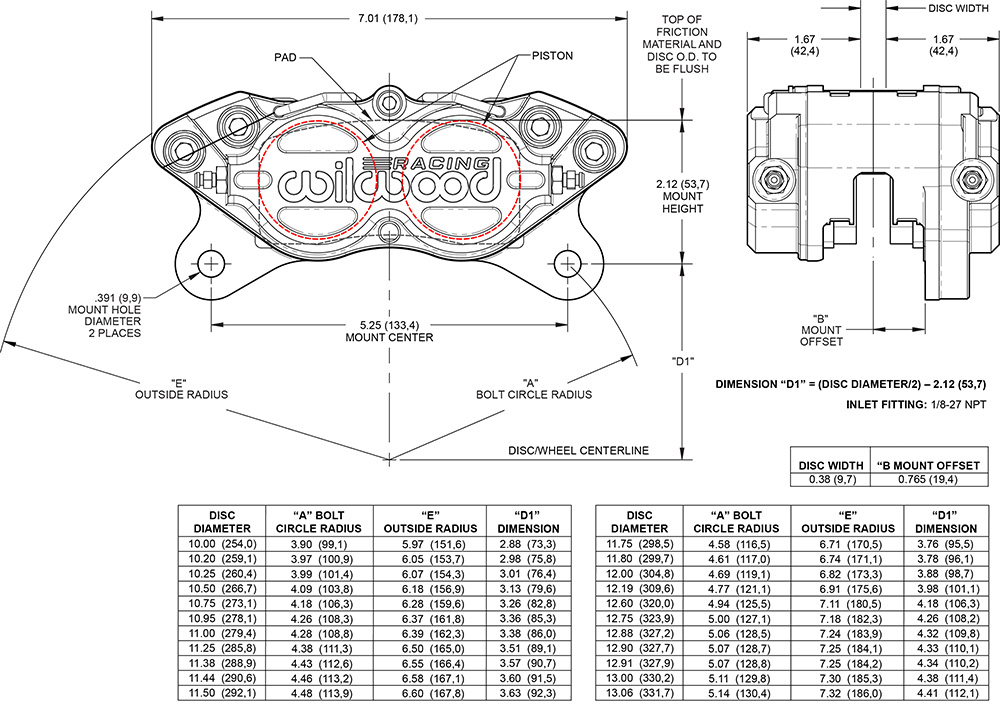

Specifications
- Model
- Forged XRD Lug Mount
- Finish
- Type III Anodize
- Mount
- Lug Mount
- Pistons
- 4
- Piston diameter
- 44,5 mm
- Piston area
- 3.096,8 mm²
- Mount size
- 133,3 mm
- Rotor width
- 9,7 mm
- Max. rotor diameter
- 331,7 mm
- Pad volume
- 34,4 cm³
- Pad plate
- 7812
- Piston material
- Stainless
Matching brackets
Selected by the same mount size (133,3 mm, Lug Mount). Check the dimensions: the stud or bolt diameter and the holes in the caliper may differ.
Bracket Kit, Rear - Drag · rotor 290,6 mm · L/H & R/H 249-0250L/R
Brackets (2) - Rear Drag - Big Ford
€ 136,33€ 147,23incl. VAT
-
Bracket Kit, Rear - Drag · rotor 290,6 mm · L/H & R/H 249-0251L/R
Brackets (2) - Rear Drag - Small Ford
€ 136,33€ 147,23incl. VAT
Bracket Kit, Rear - Drag · rotor 290,6 mm · L/H & R/H 249-0252L/R
Brackets (2) - Rear Drag - 12 Bolt Chevy
€ 136,33€ 147,23incl. VAT
Bracket Kit, Rear - Drag · rotor 290,6 mm · L/H & R/H 249-0254/55
Brackets (2) - Rear Drag - Olds / Pont
€ 136,33€ 147,23incl. VAT
Bracket Kit, Front - Lug Mount · rotor 273,1 mm · L/H & R/H 249-0973L/R
Brackets (2) - Front Drag - HD 67-69 Camaro, 64-72 Nova
€ 136,33€ 147,23incl. VAT
Bracket Kit, Rear - Drag · rotor 290,6 mm · L/H & R/H 249-0992L/R
Brackets (2) - Front Drag - MW / Lamb Kit
€ 136,33€ 147,23incl. VAT
Show 34 more brackets
Bracket Kit, Front - Lug Mount · rotor 279,4 mm · L/H & R/H 249-10994/95
Brackets (2) - HD Front - 67-74 Camaro/Nova, 11" Rotor
€ 136,33€ 147,23incl. VAT
Bracket Kit, Front - Lug Mount · rotor 279,4 mm · L/H & R/H 249-11536/37
Brackets (2) - HD Front - 65-76 A-Body Drum Mopar, 11" Rotor
€ 265,10€ 286,30incl. VAT
Bracket Kit, Front - Lug Mount · rotor 273,1 mm · L/H & R/H 249-1442L/R
Brackets (2) - Front Drag - MD Pinto 71-78
€ 136,33€ 147,23incl. VAT
Bracket Kit, Rear Pro Street · rotor 309,6 mm · L/H & R/H 249-2095/96
Brackets (2) - P/S Rear-Olds/Pont,2.81" Offset
€ 242,85€ 262,27incl. VAT
Bracket Kit, Rear Pro Street · rotor 309,6 mm · L/H & R/H 249-2097/98
Brackets (2) - P/S Rear - Small Ford,2.66" Offset
€ 242,85€ 262,27incl. VAT
Bracket Kit, Rear Pro Street · rotor 309,6 mm · L/H & R/H 249-2099/00
Brackets (2) - P/S Rear - Big Ford,2.36" Offset
€ 260,11€ 280,93incl. VAT
Bracket Kit, Rear Pro Street · rotor 309,6 mm · L/H & R/H 249-2101/02
Brackets (2) - P/S Rear - Mopar/Dana,2.36" Offset
€ 286,90€ 309,86incl. VAT
Bracket Kit, Rear Pro Street · rotor 309,6 mm · L/H & R/H 249-2103/04
Brackets (2) - P/S Rear - 12 Bolt,2.81" Offset
€ 242,85€ 262,27incl. VAT
Bracket Kit, Rear Pro Street · rotor 309,6 mm · L/H & R/H 249-2105/06
Brackets (2) - P/S Rear - Big Ford,2.50" Offset
€ 242,85€ 262,27incl. VAT
Bracket Kit, Rear Pro Street · rotor 309,6 mm · L/H & R/H 249-2107/08
Brackets (2) - P/S Rear - Mopar/Dana,2.72" Offset
€ 311,78€ 336,72incl. VAT
Bracket Kit, Rear Pro Street · rotor 309,6 mm · L/H & R/H 249-2109/10
Brackets (2) - P/S Rear - New Style Big Ford,2.50" Offset
€ 242,85€ 262,27incl. VAT
Bracket Kit, Rear - Drag · rotor 290,6 mm · L/H & R/H 249-2120/21
Brackets (2) - Rear Drag - New Style Big Ford
€ 136,33€ 147,23incl. VAT
Bracket Kit, Caliper Mount · rotor 309,6 mm · L/H & R/H 249-2229L/R
Brackets (2) - Park Brake Calipers R/L
€ 140,05€ 151,25incl. VAT
Bracket Kit, Rear Pro Street · rotor 309,6 mm · L/H & R/H 249-2777/78
Brackets (2) - P/S Rear - Mustang 8.8
€ 242,85€ 262,27incl. VAT
Bracket Kit, Front - Lug Mount · rotor 273,1 mm · L/H & R/H 249-3113/14
Brackets (2) - MD-HD Front - Mopar
€ 136,33€ 147,23incl. VAT
Bracket Kit, Front - Lug Mount · rotor 273,1 mm · L/H & R/H 249-3447/48
Brackets (2) - MD Front - Mopar
€ 147,28€ 159,07incl. VAT
Bracket Kit, Front - Lug Mount · rotor 273,1 mm · L/H & R/H 249-3511/12
Brackets (2) - MD Front - Mopar
€ 136,33€ 147,23incl. VAT
Bracket Kit, Front - Lug Mount · rotor 273,1 mm · L/H & R/H 249-3681/82
Brackets (2) - MD Front - Mopar
€ 136,33€ 147,23incl. VAT
Bracket Kit, Rear - Drag · rotor 290,6 mm · L/H & R/H 249-3981/82
Brackets (2) - Rear Drag - Mopar
€ 136,33€ 147,23incl. VAT
Bracket Kit, Front - Lug Mount · rotor 298,5 mm · L/H & R/H 249-4302/03
Brackets (2) - MD Front, 65-69 Mustang
€ 136,33€ 147,23incl. VAT
Bracket Kit, Front - Lug Mount · rotor 273,1 mm · L/H & R/H 249-4501/02
Brackets (2) - MD Front, 87-93 Mustang
€ 136,33€ 147,23incl. VAT
Bracket Kit, Rear - Drag · rotor 290,6 mm · L/H & R/H 249-4541/42
Brackets (2) - Rear Drag - 12 Bolt
€ 136,33€ 147,23incl. VAT
Bracket Kit, Rear Pro Street · rotor 309,6 mm · L/H & R/H 249-5234/35
Brackets (2) - P/S Rear - 12 Bolt C-Clip Eliminator
€ 242,85€ 262,27incl. VAT
Bracket Kit, Rear - Drag · rotor 290,6 mm · L/H & R/H 249-5253/54
Brackets (2) - Rear Drag - Dana
€ 136,33€ 147,23incl. VAT
Bracket Kit, Rear Pro Street · rotor 309,6 mm · L/H & R/H 249-5620/21
Brackets (2) - Pro Street - Mopar/Dana - Green Snap Ring, 2.36" Offset
€ 286,90€ 309,86incl. VAT
Bracket Kit, Rear - Drag · rotor 290,6 mm · L/H & R/H 249-5715/16
Brackets (2) - Drag - Chevy 3.15" Bearing
€ 136,33€ 147,23incl. VAT
Bracket Kit, Rear Pro Street · rotor 309,6 mm · L/H & R/H 249-5719/20
Brackets (2) - Pro Street - Chevy 3.15" Bearing, 2.81" Offset
€ 242,85€ 262,27incl. VAT
Bracket Kit, Front - Lug Mount · rotor 309,6 mm · L/H & R/H 249-6935/36
Brackets (2) - ST Rod, 71-78 Pinto, 12.19" Rotor
€ 143,12€ 154,57incl. VAT
Bracket Kit, Disc/Drum - FDL · rotor 309,6 mm · L/H & R/H 249-7108/09
Brackets (2) - Disc/Drum, Big Ford-Old, 2.36" Offset, 1pc vented
€ 509,08€ 549,80incl. VAT
Bracket Kit, Disc/Drum - FDL · rotor 309,6 mm · L/H & R/H 249-7110/11
Brackets (2) - Disc/Drum, Big Ford-New, 2.50" Offset, 1pc vented
€ 509,08€ 549,80incl. VAT
Bracket Kit, Disc/Drum - FDL · rotor 309,6 mm · L/H & R/H 249-7112/13
Brackets (2) - Disc/Drum,Small Ford, 2.66" Offset, 1pc vented
€ 509,08€ 549,80incl. VAT
Bracket Kit, Disc/Drum - FDL · rotor 309,6 mm · L/H & R/H 249-7114/15
Brackets (2) - Disc/Drum, 12 Bolt Chevy, 2.81" Offset, 1pc vented
€ 509,08€ 549,80incl. VAT
Bracket Kit, Disc/Drum - FDL · rotor 309,6 mm · L/H & R/H 249-7116/17
Brackets (2) - Disc/Drum, Mpr/Dana-Grn w/Ring, 2.36" Off,1 pc vented
€ 509,08€ 549,80incl. VAT
Bracket Kit, Disc/Drum - FDL · rotor 309,6 mm · L/H & R/H 249-7118/19
Brackets (2) - Disc/Drum, Mustang 8.8, 2.50" Offset, 1pc vented
€ 509,08€ 549,80incl. VAT
The first 40 of 214 brackets are shown here. View and refine these brackets in the table
