Wilwood · Calipers

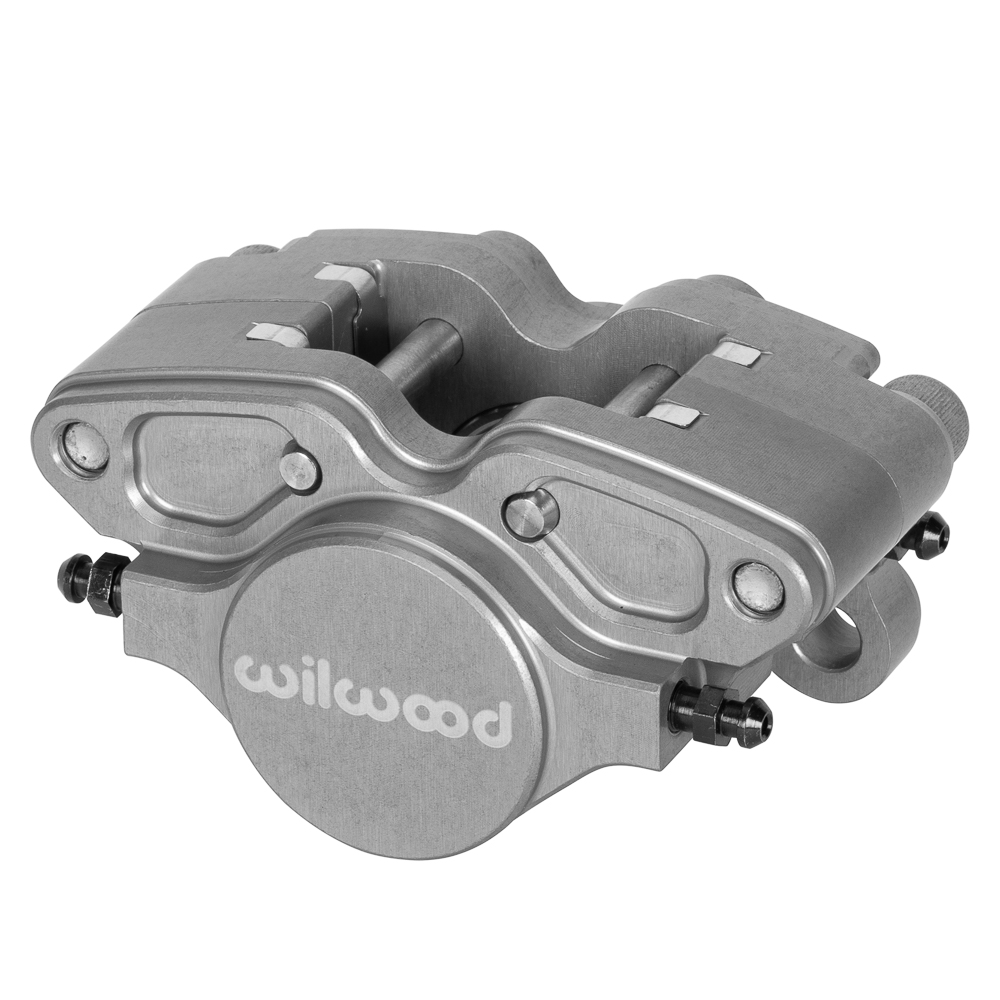

GP200 Caliper
The new GP 200A billet caliper represents the lightest (only .90 pounds) caliper specifically designed for tight fit applications while utilizing a standard 2.38” lug mount. Now available (depending on part number) in either 1/8-27 NPT or a 3/8-24 fluid inlets. The GP 200A combines superior strength with a type III hard anodized finish along with several new performance features. The strength of the GP 200A is a combination of process and design. GP 200A calipers are fully CNC machined from premium grade alloy billet. The FEA generated body design incorporates a highly fortified transition between the piston housings and the bridges. Strengthening this critical area of the caliper has substantially increased its resistance to deflection and body separation under load.
incl. VAT
Part number: 120-17702
This is the number you are ordering.
Weight: 0,54 kg

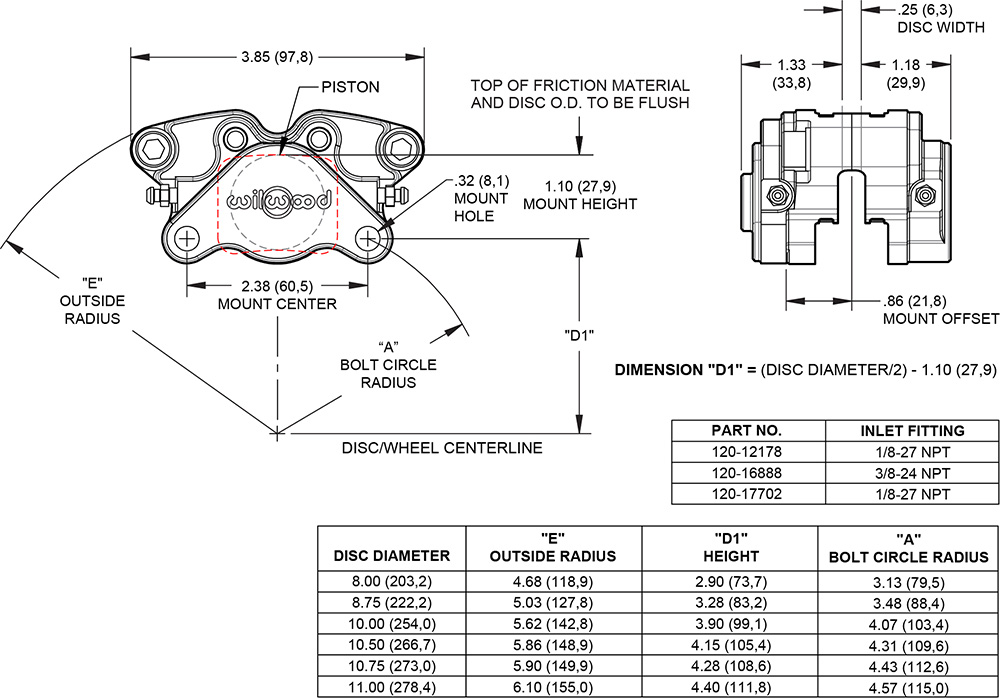

Specifications
- Model
- GP200 Caliper
- Finish
- Type III Anodize
- Mount
- Lug Mount
- Pistons
- 2
- Piston diameter
- 31,8 mm
- Piston area
- 793,6 mm²
- Mount size
- 60,5 mm
- Rotor width
- 6,3 mm
- Max. rotor diameter
- 279,4 mm
- Pad volume
- 5,6 cm³
- Pad plate
- 4908
- Piston material
- Stainless
