Wilwood · Calipers

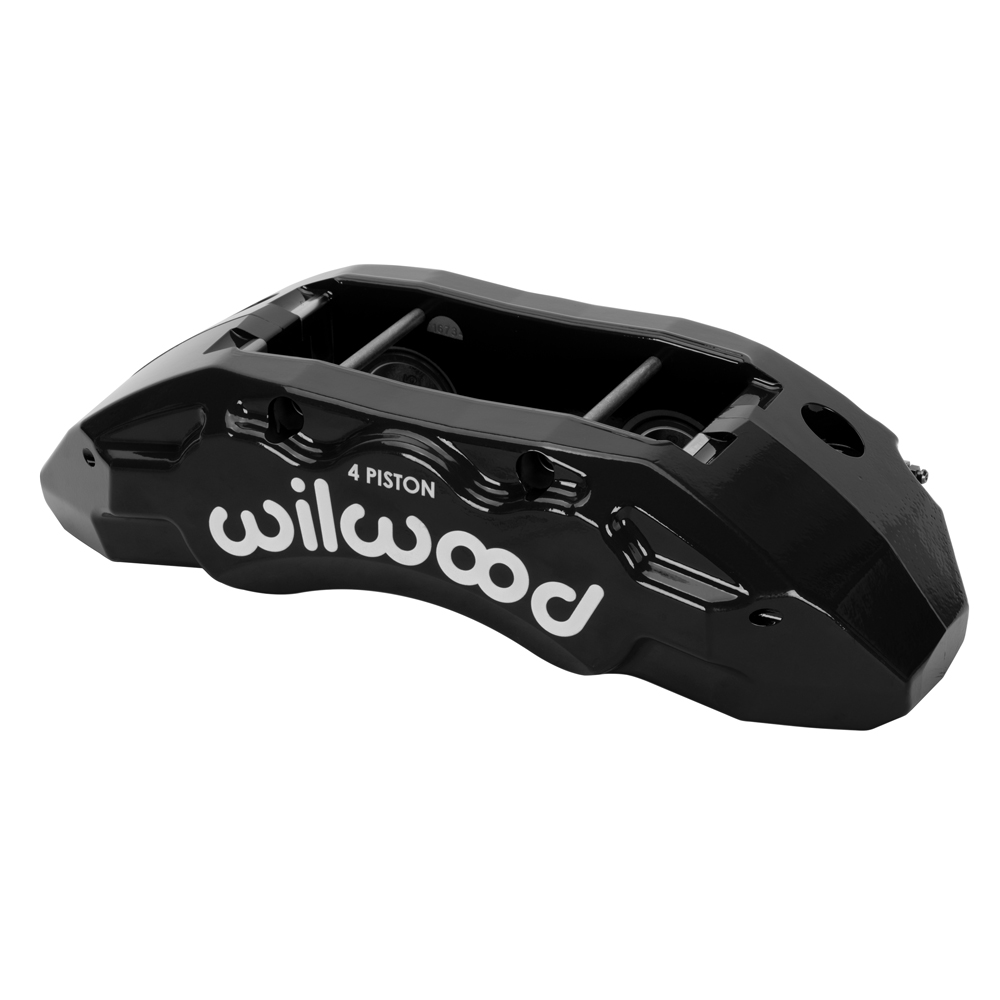

TX4R Forged Radial Mount
The Tactical Xtreme TX4R radial mount four-piston calipers are engineered and purpose built for severe duty service on heavy duty Trucks, SUV's, and Class 1, 2, and 3 Armored Vehicles up to 14,000 lbs. GVWR. The combination of the forged aluminum body, stainless steel pistons, large pad volume, and the ability to accommodate brake rotors up to 1.50” thick, make the TX4R the ultimate choice for high strength, lightweight, and tactical level braking capacity for all types of highway and off-road extreme duty service applications. TX4R calipers have a hard anodized finish on base models with options for gloss black or red powder coat.
incl. VAT
Part number: 120-16731-BK
This is the number you are ordering.
Weight: 6,1 kg
Specifications
- Model
- TX4R Forged Radial Mount
- Finish
- Black Powder Coat
- Mount
- Radial Mount
- Pistons
- 4
- Piston diameter
- 41,2 mm / 35,1 mm
- Piston area
- 2.296,8 mm²
- Mount size
- 244,6 mm
- Rotor width
- 31,8 mm
- Max. rotor diameter
- 406,4 mm
- Pad volume
- 111,6 cm³
- Pad plate
- 10120
- Piston material
- Stainless
Matching brackets
Selected by the same mount size (244,6 mm, Radial Mount). Check the dimensions: the stud or bolt diameter and the holes in the caliper may differ.
-
Bracket Kit, Front - Radial Mount · rotor 393,7 mm · L/H & R/H 249-17809/10
BRACKET KIT,FRONT,TX6R,FORD F150,10-24
Call for price and availability
Bracket Kit, Front - Radial Mount · rotor 406,4 mm · L/H or R/H 250-13991
BRACKET KIT,CALIPER MT,TX6R,GM 1500
Call for price and availability
Bracket Kit, Front - Radial Mount · rotor 406,4 mm · L/H or R/H 250-14030
BRACKET KIT,CALIPER MT,TX6R,H2/2500
Call for price and availability
Bracket Kit, Rear · rotor 406,4 mm · L/H or R/H 250-14032
BRACKET KIT,CALIPER MT,TX6R,H2/2500
Call for price and availability
Bracket Kit, Front - Radial Mount · rotor 381 mm · L/H or R/H 250-14049
BRACKET KIT,CALIPER MT,TX6R,GM,2500
Call for price and availability
Bracket Kit, Rear · rotor 393,7 mm · L/H or R/H 250-14050
BRACKET KIT,CALIPER MT,TX6R,GM,2500
Call for price and availability
Show 10 more brackets
Bracket Kit, Front - Radial Mount · rotor 381 mm · L/H or R/H 250-14561
BRACKET KIT,FORD,F250/F350,4WD,FRONT
Call for price and availability
Bracket Kit, Rear · rotor 393,7 mm · L/H or R/H 250-14564
BRACKET KIT,REAR,FORD,F250/F350,4WD
Call for price and availability
Bracket Kit, Front - Radial Mount · rotor 406,4 mm · L/H or R/H 250-15061
BRACKET KIT,FRONT,FORD,F250-350,4x4,TX6R
Call for price and availability
Bracket Kit, Rear · rotor 393,7 mm · L/H or R/H 250-15064
BRACKET KIT,REAR,FORD,F250/F350,TX6R
Call for price and availability
Bracket Kit, Front - Radial Mount · rotor 393,7 mm · L/H or R/H 250-15287
BRACKET KIT,CALIPER MT,TX6R,FORD F150
Call for price and availability
Bracket Kit, Front - Radial Mount · rotor 406,4 mm · L/H or R/H 250-15385
BRACKET KIT,FRONT,TX6R,RAM,2500/3500
Call for price and availability
Bracket Kit, Front - Radial Mount · rotor 406,4 mm · L/H or R/H 250-16789
BRACKET KIT,CALIPER MT,TX6R,RAM 1500
Call for price and availability
Bracket Kit, Rear · rotor 406,4 mm · L/H or R/H 250-16863
BRACKET KIT,REAR,TX4R,GM,TRUCK/SUV,1500
Call for price and availability
Bracket Kit, Rear · rotor 406,4 mm · L/H or R/H 250-17751
BRACKET KIT,REAR,TX6R,RAM,2500/3500
Call for price and availability
Bracket Kit, Rear · rotor 406,4 mm · L/H or R/H 250-18107
BRACKET KIT,CALIPER MT,TX6R,GM2500,20-24
Call for price and availability
