Wilwood · Calipers

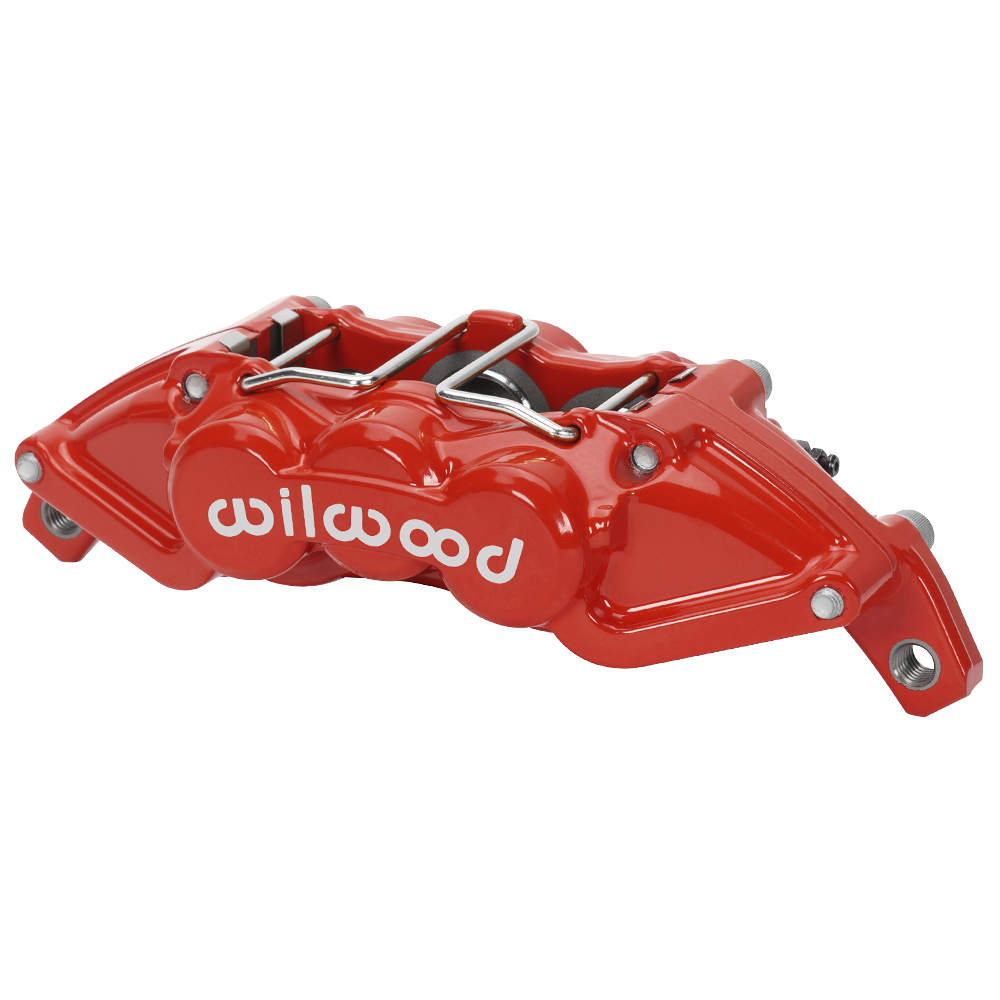

UTV6 Caliper
UTV4 and UTV6 forged aluminum differential-bore four and six piston calipers are newest design for the specificaly UTV market. ASM design and forged construction reduce deflection and provide more uniform engagement to increase braking force and improve feel. Stainless steel pistons and anti-knock back springs further enhance the pedal feel. Calipers use standard 7812 shape, high-friction brake pads.
incl. VAT
Part number: 120-16567-RD
This is the number you are ordering.
Weight: 1,47 kg
Specifications
- Model
- UTV6 Caliper
- Finish
- Red Powder Coat
- Mount
- Lug Mount
- Pistons
- 6
- Piston diameter
- 28,5 mm / 25,4 mm
- Piston area
- 1.787,1 mm²
- Mount size
- 222,3 mm
- Rotor width
- 6,3 mm
- Max. rotor diameter
- 285,8 mm
- Pad volume
- 34,4 cm³
- Pad plate
- 7812
- Piston material
- Stainless
Matching brackets
Selected by the same mount size (222,3 mm, Lug Mount). Check the dimensions: the stud or bolt diameter and the holes in the caliper may differ.
Bracket Kit, Front - Lug Mount · rotor 285,8 mm · L/H or R/H 250-16592
BRACKET,FLAT,CALIPER MT,UTV-C,8.75,.200
Call for price and availability
Bracket Kit, Rear - Lug Mount · rotor 285,8 mm · L/H or R/H 250-16593
BRACKET,FLAT,CALIPER MT,UTV-C,8.75,.207
Call for price and availability
Bracket Kit, Front - Lug Mount · rotor 285,8 mm · L/H or R/H 250-16594
BRACKET,FLAT,CALIPER MT,UTV-P,8.75,0.00
Call for price and availability
Bracket Kit, Front - Lug Mount · rotor 285,8 mm · L/H or R/H 250-16596
BRACKET,FLAT,CALIPER MT,UTV-P,8.75,.117
Call for price and availability
Bracket Kit, Rear - Lug Mount · rotor 285,8 mm · L/H or R/H 250-16597
BRACKET,FLAT,CALIPER MT,UTV-P,8.75,.110
Call for price and availability
Bracket Kit, Front - Lug Mount · rotor 285,8 mm · L/H or R/H 250-16598
BRACKET,FLAT,CALIPER MT,UTV-H,8.75,.234
Call for price and availability
Show 3 more brackets
Bracket Kit, Rear - Lug Mount · rotor 285,8 mm · L/H or R/H 250-16599
BRACKET,FLAT,CALIPER MT,UTV-H,8.75,.030
Call for price and availability
Bracket Kit, Rear - Lug Mount · rotor 285,8 mm · L/H or R/H 250-17281
BRACKET,FLAT,CALIPER MT,UTV-P,8.75,0.00
Call for price and availability
Bracket Kit, Rear · rotor 285,8 mm · L/H or R/H 250-17575
BRACKET,FLAT,CALIPER MT,UTV-P,8.75,.100
Call for price and availability
