Wilwood · Calipers

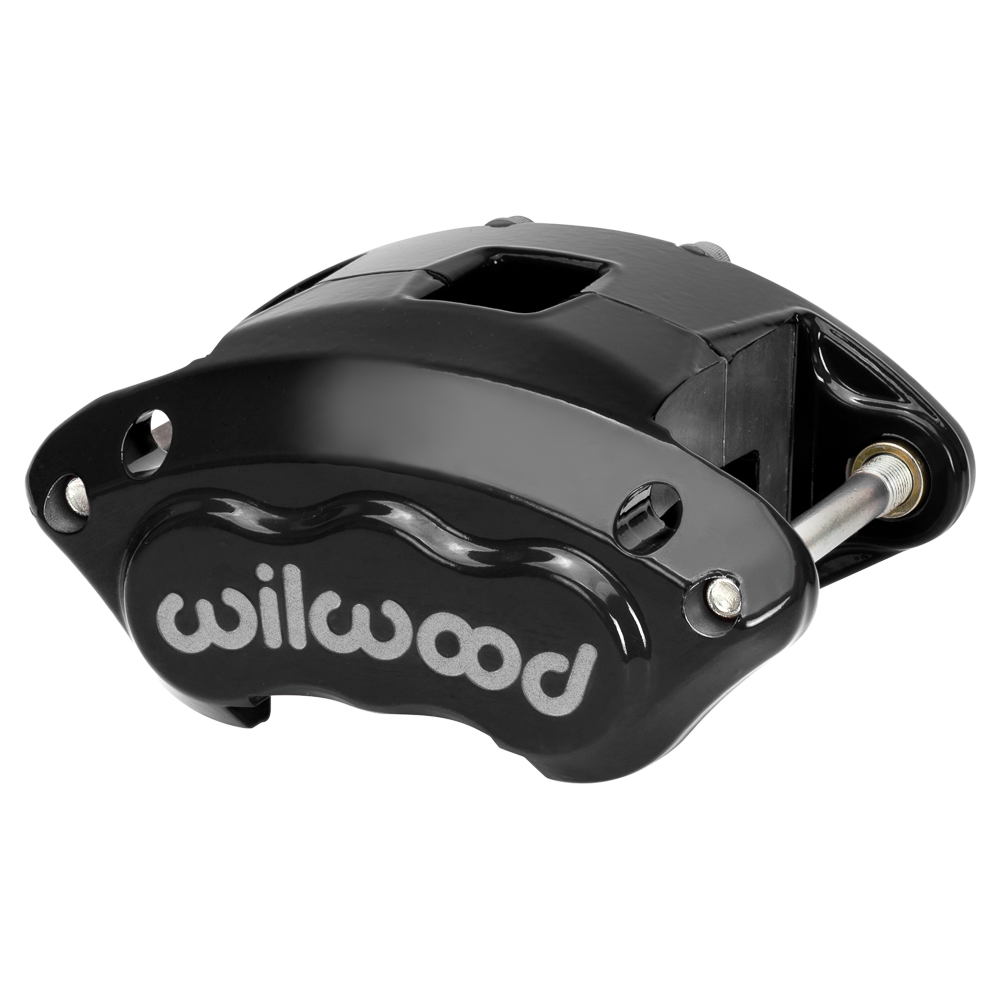

D154-Dust Seal Single Piston Floater
Wilwood's D154-DS forged billet caliper is a direct bolt-on, lightweight, high-strength, extreme duty alternative to the OE cast iron calipers that were used on a wide range of factory disc brake equipped mid-size GM cars and small trucks beginning in 1978. Use of this caliper can still be found on some GM models as late as the year 2002. D154-DS calipers incorporate an exclusive dust wiper seal that further protects the piston bore from dust and corrosion, allowing the caliper to be used in locales that mandate a method of environmental sealing. The wide spread and affordable availability of D154-DS calipers and brake pad compounds also made it a popular choice in a number of restricted class competition categories and drum to disc conversions on all types of hot rods and street machines.
incl. VAT
Part number: 120-15796-BK
This is the number you are ordering.
Weight: 2,13 kg
Specifications
- Model
- D154-Dust Seal Single Piston Floater
- Finish
- Black Powder Coat
- Mount
- Floating Mount
- Pistons
- 1
- Piston diameter
- 63,5 mm
- Piston area
- 3.161,3 mm²
- Mount size
- 138,7 mm
- Rotor width
- 26,4 mm
- Max. rotor diameter
- 309,6 mm
- Pad volume
- 47,5 cm³
- Pad plate
- Brake Pad Plate # D154
- Piston material
- Stainless
Matching brackets
Selected by the same mount size (138,7 mm, Floating Mount). Check the dimensions: the stud or bolt diameter and the holes in the caliper may differ.
Bracket Kit, Disc/Drum - D154 · rotor 309,6 mm · L/H & R/H 249-12597/98
BRACKET KIT,DISC/DRUM,12 BOLT CHEVY,2.75
Call for price and availability
Bracket Kit, Disc/Drum - D154 · rotor 309,6 mm · L/H & R/H 249-12654/55
BRACKET KIT,DISC/DRUM,MOPAR/DANA,GREEN
Call for price and availability
Bracket Kit, Disc/Drum - D154 · rotor 309,6 mm · L/H & R/H 249-12656/57
BRACKET KIT,DISC/DRUM,BIG FORD,NEW STYLE
Call for price and availability
Bracket Kit, Disc/Drum - D154 · rotor 309,6 mm · L/H & R/H 249-12658/59
BRACKET KIT,DISC/DRUM,SMALL FORD 2.66
Call for price and availability
Bracket Kit, Disc/Drum - D154 · rotor 309,6 mm · L/H & R/H 249-12662/63
BRACKET KIT,DISC/DRUM,SMALL FORD,2.50
Call for price and availability
Bracket Kit, Disc/Drum - D154 · rotor 309,6 mm · L/H & R/H 249-12664/65
BRACKET KIT,DISC/DRUM,BIG FORD,OLD,2.36
Call for price and availability
Show 9 more brackets
Bracket Kit, Disc/Drum - D154 · rotor 309,6 mm · L/H & R/H 249-12666/67
BRACKET KIT,DISC/DRUM,MOPAR/DANA,GREEN/
Call for price and availability
Bracket Kit, Disc/Drum - D154 · rotor 309,6 mm · L/H & R/H 249-12668/69
BRACKET KIT,DISC/DRUM,12 BOLT CHEVY
Call for price and availability
Bracket Kit, Disc/Drum - D154 · rotor 309,6 mm · L/H & R/H 249-12670/71
BRACKET KIT,DISC/DRUM,BIG FORD,NEW STYLE
Call for price and availability
Bracket Kit, Disc/Drum - D154 · rotor 309,6 mm · L/H & R/H 249-12672/73
BRACKET KIT,DISC/DRUM,C10 CHEVY,2.42
Call for price and availability
Bracket Kit, Disc/Drum - D154 · rotor 309,6 mm · L/H & R/H 249-12674/75
BRACKET KIT,DISC/DRUM,BIG FORD,NEW STYLE
Call for price and availability
Bracket Kit, Disc/Drum - D154 · rotor 309,6 mm · L/H & R/H 249-12676/77
BRACKET KIT,DISC/DRUM,BIG FORD,NEW STYLE
Call for price and availability
Bracket Kit, Disc/Drum - D154 · rotor 309,6 mm · L/H & R/H 249-13026/27
BRACKET KIT,DISC/DRUM,12 BOLT,2.81
Call for price and availability
Bracket Kit, Disc/Drum - D154 · rotor 309,6 mm · L/H & R/H 249-13802/03
BRACKET KIT,DISC/DRUM,JEEP DANA 35,2.56
Call for price and availability
Bracket Kit, Rear · rotor 309,6 mm · L/H or R/H 250-12353
BRACKET,CALIPER,GM D154,REAR,12.19 ROTOR
Call for price and availability
