Wilwood · Calipers

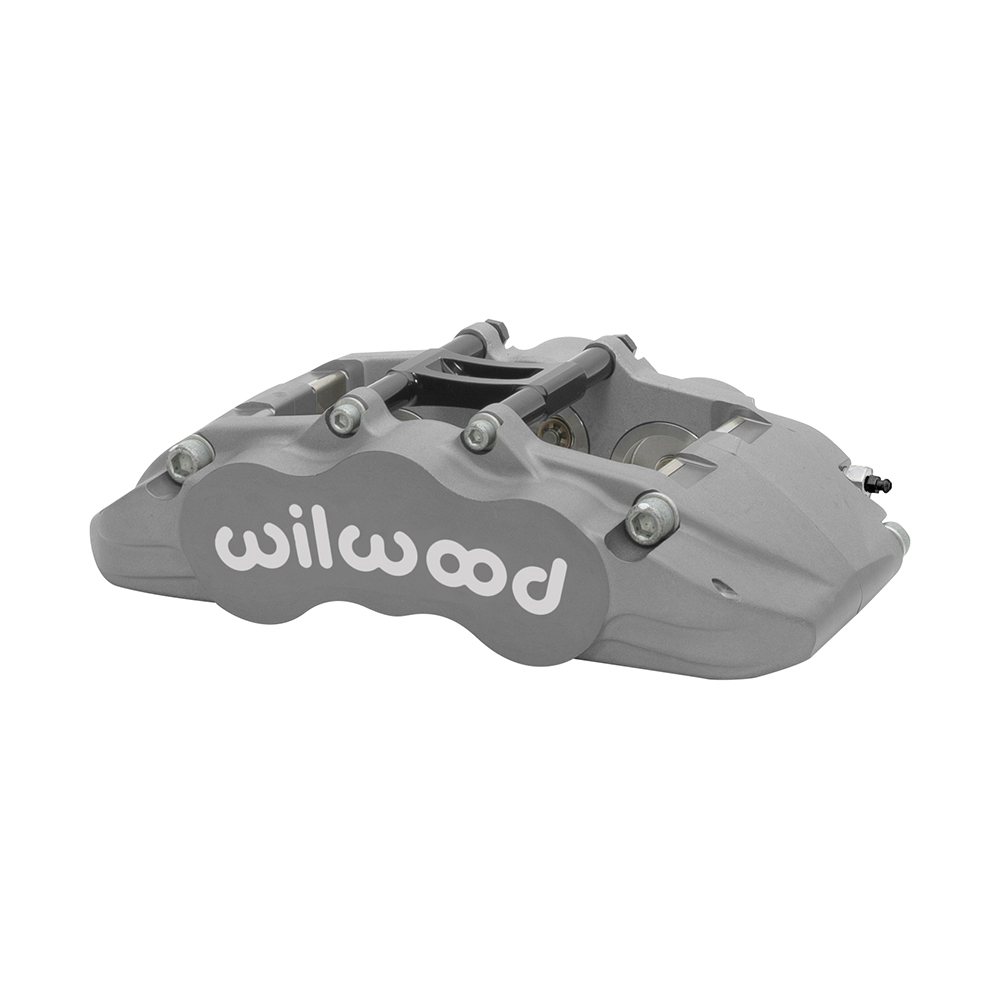

AV6R Radial Mount
AV6R forged aluminum six-piston radial mount calipers bring current state-of-the-art design, materials, and manufacturing technology to this variation of long standing icon in the Wilwood caliper line. With a High-strength forged aluminum body in a hard-anodized finish and Purpose built for rotors with a 1.30” thickness and a special bracket offset. Calipers are available with Stainless Steel or Thermlock® insulated pistons dependent on part number. Note 1. Caliper uses .80" (20mm) thick pads.
incl. VAT
Part number: 120-15779
This is the number you are ordering.
Weight: 3,58 kg
Specifications
- Model
- AV6R Radial Mount
- Finish
- Type III Anodize
- Mount
- Radial Mount
- Pistons
- 6
- Piston diameter
- 44,5 mm / 35,1 mm
- Piston area
- 3.483,9 mm²
- Mount size
- 180,1 mm
- Rotor width
- 33 mm
- Max. rotor diameter
- 337,3 mm
- Pad volume
- 113,1 cm³
- Pad plate
- 7520
- Piston material
- Thermlock
Matching brackets
Selected by the same mount size (180,1 mm, Radial Mount). Check the dimensions: the stud or bolt diameter and the holes in the caliper may differ.
Bracket Kit, Caliper Mounting (Racing) · rotor 331,7 mm · L/H or R/H 250-14378
Caliper Mounting Kit w/Bracket-GN6R-3.50" Mount, 13.06" Rotor
€ 112,80€ 121,82incl. VAT
Bracket Kit, Front - Radial Mount · rotor 337,3 mm · L/H & R/H 249-15650/51
BRACKET KIT,FRONT,GN6R,LC70,13.28x1.30
Call for price and availability
Bracket Kit, Front - Radial Mount · rotor 337,3 mm · L/H or R/H 250-17185
BRACKET KIT,CALIPER MT,AV6R,FRONT,13.28
Call for price and availability
