Wilwood · Calipers

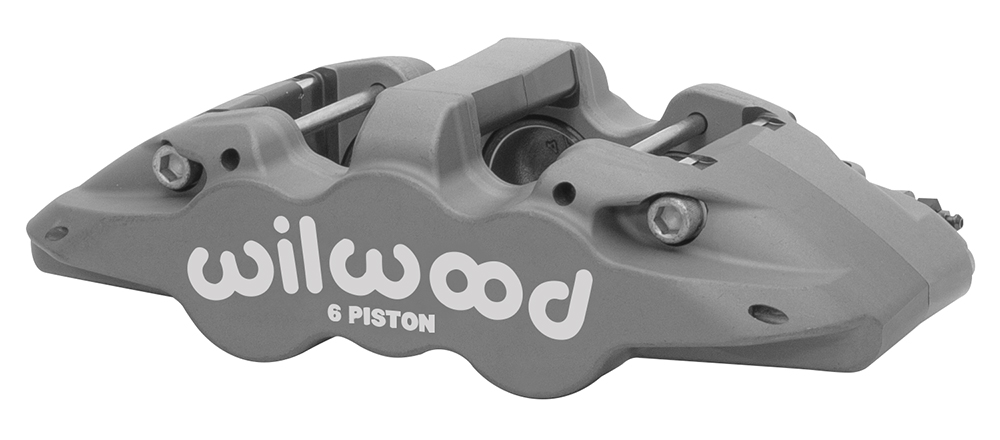

Aero6-DS Radial Mount
The new Aero6-DS forged six piston caliper delivers heavy duty stopping power for the road or track. The caliper incorporates race technology into a body design with widespread adaptability. Radial mounting, multiple options for piston volume, and a rotor diameter ranging from 12.88" to 15.00" give this caliper the versatility necessary to suit all types of heavy weight braking requirements. The new Aero6-DS is the latest innovation to the Aero series of calipers incorporating an exclusive dust wiper seal that further protects the piston bore from dust and corrosion, allowing the caliper to be used in locales that mandate a method of environmental sealing.
incl. VAT
Part number: 120-15526
This is the number you are ordering.
Weight: 3,13 kg
Specifications
- Model
- Aero6-DS Radial Mount
- Finish
- Type III Anodize
- Mount
- Radial Mount
- Pistons
- 6
- Piston diameter
- 44,5 mm / 41,2 mm
- Piston area
- 4.206,4 mm²
- Mount size
- 180,1 mm
- Rotor width
- 31,8 mm
- Max. rotor diameter
- 381 mm
- Pad volume
- 85,2 cm³
- Pad plate
- 6617
- Piston material
- Stainless
Rebuild & replacement parts
According to Wilwood, these parts belong to this caliper. Taken from the same caliper in another finish.
-
Seal kit (rebuild kit) 130-17055
SQ-Ring & Seal Kit - 1.75/1.62/1.62" — Square Seal & Dust Seal- 12 pk.
€ 47,75€ 51,57incl. VAT
Piston Ø 41,2 mm 200-7519
Piston - 1.62" x 1.03" SS
€ 18,98€ 20,51incl. VAT
Piston Ø 44,5 mm 200-7531
Piston - 1.75" x 1.03" SS
€ 18,98€ 20,51incl. VAT
Wear plate 300-5876
Pad Wear Plate - NDL
€ 7,73€ 8,35incl. VAT
Pad retainer pins 180-9874
Retaining Pin Kit-Pad -W4/6A, Aero4/6,TX6R — 2 Pack (for 1 caliper)
€ 17,58€ 18,98incl. VAT
Bleed screws 220-0627
Bleed Screw Assy / 4 pk.
€ 19,78€ 21,37incl. VAT
Matching brackets
Selected by the same mount size (180,1 mm, Radial Mount). Check the dimensions: the stud or bolt diameter and the holes in the caliper may differ.
Bracket Kit, Caliper Mount, Disc/Drum · rotor 355,6 mm · L/H & R/H 249-10957L/R
Brackets (2) - w/Mounting Kit -W4A - P-Brake Kit 14" Rotor
€ 353,88€ 382,19incl. VAT
Bracket Kit, Front - Radial Mount · rotor 355,6 mm · L/H or R/H 250-13711
Caliper Mount Corvette C5/C6 Aero Caliper.
€ 335,04€ 361,84incl. VAT
Bracket Kit, Caliper Mounting (Racing) · rotor 331,7 mm · L/H or R/H 250-14378
Caliper Mounting Kit w/Bracket-GN6R-3.50" Mount, 13.06" Rotor
€ 112,80€ 121,82incl. VAT
Bracket Kit, Front - Radial Mount · rotor 362 mm · L/H or R/H 250-9898
Caliper Mounting Kit, w/Bracket,W6A Caliper, GM 1500,Front
€ 315,66€ 340,92incl. VAT
Bracket Kit, Caliper Mount, Disc/Drum · rotor 355,6 mm · L/H & R/H 249-12492/93
BRACKET KIT,CALIPER MT,AERO4,DISC/DRUM
Call for price and availability
Bracket Kit, Rear · rotor 355,6 mm · L/H & R/H 249-14009/10
BRACKET KIT,REAR,MUSTANG,2015-UP,AERO/
Call for price and availability
Show 34 more brackets
Bracket Kit, Rear · rotor 355,6 mm · L/H & R/H 249-14057/58
BRACKET KIT,REAR,MUSTANG,2015-UP,AERO4
Call for price and availability
Bracket Kit, Front - Radial Mount · rotor 337,3 mm · L/H & R/H 249-15650/51
BRACKET KIT,FRONT,GN6R,LC70,13.28x1.30
Call for price and availability
Bracket Kit, Caliper Mount, Disc/Drum · rotor 355,6 mm · L/H & R/H 249-16337/38
BRACKET KIT,DISC/DRUM,CALIPER MT,AERO
Call for price and availability
Bracket Kit, Front - Radial Mount · rotor 355,6 mm · L/H or R/H 250-10640
BRACKET KIT,CALIPER MT,AERO6,WILWOOD,PRO
Call for price and availability
Bracket Kit, Front - Radial Mount · rotor 355,6 mm · L/H or R/H 250-10822
BRACKET KIT,CALIPER,AERO6,MUSTANG 05-UP
Call for price and availability
Bracket Kit, Rear · rotor 355,6 mm · L/H or R/H 250-11121
BRACKET KIT,CALIPER MT,AERO4,C5/C6 VETTE
Call for price and availability
Bracket Kit, Front - Radial Mount · rotor 362 mm · L/H or R/H 250-11317
BRACKET KIT,CALIPER MT,AERO6,CAMARO 2010
Call for price and availability
Bracket Kit, Rear · rotor 362 mm · L/H or R/H 250-11318
BRACKET KIT,CALIPER MT,AERO4,CAMARO 2010
Call for price and availability
Bracket Kit, Front - Radial Mount · rotor 362 mm · L/H or R/H 250-11768
BRACKET KIT,AERO6,MAG/CHALL/CHARG/300C
Call for price and availability
Bracket Kit, Rear · rotor 362 mm · L/H or R/H 250-11769
BRACKET KIT,REAR,AERO4,MAG/CHALL/CHARG/
Call for price and availability
Bracket Kit, Front - Radial Mount · rotor 355,6 mm · L/H or R/H 250-11976
BRACKET KIT,CALIPER,AERO6,BMW E46
Call for price and availability
Bracket Kit, Front - Radial Mount · rotor 355,6 mm · L/H or R/H 250-12758
BRACKET KIT,CALIPER,AERO6,MUSTANG 05-11
Call for price and availability
Bracket Kit, Front - Radial Mount · rotor 362 mm · L/H or R/H 250-12827
BRACKET KIT,FORD F150,97-03,FRONT
Call for price and availability
Bracket Kit, Front - Radial Mount · rotor 362 mm · L/H or R/H 250-12930
BRACKET KIT,CALIPER MT,AERO6/ST,PONTIAC
Call for price and availability
Bracket Kit, Front - Radial Mount · rotor 362 mm · L/H or R/H 250-12934
BRACKET KIT,CALIPER MT,AERO4/ST PONTIAC
Call for price and availability
Bracket Kit, Rear · rotor 355,6 mm · L/H or R/H 250-13586
BRACKET KIT,CALIPER,AERO4,BMW 3,REAR
Call for price and availability
Bracket Kit, Front - Radial Mount · rotor 355,6 mm · L/H or R/H 250-13688
BRACKET KIT,CALIPER,AERO,MUSTANG 05-UP
Call for price and availability
Bracket Kit, Front - Radial Mount · rotor 355,6 mm · L/H or R/H 250-13694
BRACKET KIT,CALIPER MT,AERO6,CPP,FRONT
Call for price and availability
Bracket Kit, Front - Radial Mount · rotor 355,6 mm · L/H or R/H 250-13883
BRACKET KIT,CALIPER MT,AERO6,MUSTANG
Call for price and availability
Bracket Kit, Front - Radial Mount · rotor 355,6 mm · L/H or R/H 250-13889
BRACKET KIT,AERO,7.090,.085 OFFSET,5.91
Call for price and availability
Bracket Kit, Front - Radial Mount · rotor 381 mm · L/H or R/H 250-13890
BRACKET KIT,AERO,7.087,.085 OFFSET,5.91
Call for price and availability
Bracket Kit, Front - Radial Mount · rotor 381 mm · L/H or R/H 250-13918
BRACKET KIT,CALIPER MT,AERO6,BMW,FRONT
Call for price and availability
Bracket Kit, Front - Radial Mount · rotor 381 mm · L/H or R/H 250-13925
BRACKET KIT,CALIPER MT,AERO6,C5/C6 VETTE
Call for price and availability
Bracket Kit, Front - Radial Mount · rotor 355,6 mm · L/H or R/H 250-13973
BRACKET KIT,CALIPER,AERO6,RADIAL MT
Call for price and availability
Bracket Kit, Front - Radial Mount · rotor 381 mm · L/H or R/H 250-14054
BRACKET KIT,CALIPER MT,AERO6,C7 VETTE
Call for price and availability
Bracket Kit, Front - Radial Mount · rotor 381 mm · L/H or R/H 250-14069
BRACKET KIT,AERO6,MAG/CHALL/CHARG/300C
Call for price and availability
Bracket Kit, Rear · rotor 362 mm · L/H or R/H 250-14071
BRACKET KIT,REAR,AERO4,MAG/CHALL/CHARG/
Call for price and availability
Bracket Kit, Front - Radial Mount · rotor 355,6 mm · L/H or R/H 250-14214
BRACKET KIT,CHEVY C10 PRO SPINDLE,FRONT
Call for price and availability
-
Bracket Kit, Rear, AERO4-MC4 · rotor 355,6 mm · L/H or R/H 250-14267
BRACKET KIT,CURRIE,REAR,CALIPER MT
Call for price and availability
Bracket Kit, Front - Radial Mount · rotor 355,6 mm · L/H or R/H 250-14286
BRACKET KIT,CALIPER MT,AERO6,CAMARO 2016
Call for price and availability
Bracket Kit, Front - Radial Mount · rotor 381 mm · L/H or R/H 250-14287
BRACKET KIT,CALIPER MT,AERO6,CAMARO 2016
Call for price and availability
Bracket Kit, Front - Radial Mount · rotor 381 mm · L/H or R/H 250-14291
BRACKET KIT,MUSTANG,FRONT,2015-UP
Call for price and availability
Bracket Kit, Front - Radial Mount · rotor 355,6 mm · L/H or R/H 250-14427
BRACKET KIT,CALIPER,AERO4/6,5.91 MT
Call for price and availability
Bracket Kit, Front - Radial Mount · rotor 355,6 mm · L/H or R/H 250-14586
BRACKET KIT,CALIPER MT,AERO6R,14.00
Call for price and availability
The first 40 of 81 brackets are shown here. View and refine these brackets in the table
