Wilwood · Calipers
MC4 Mechanical

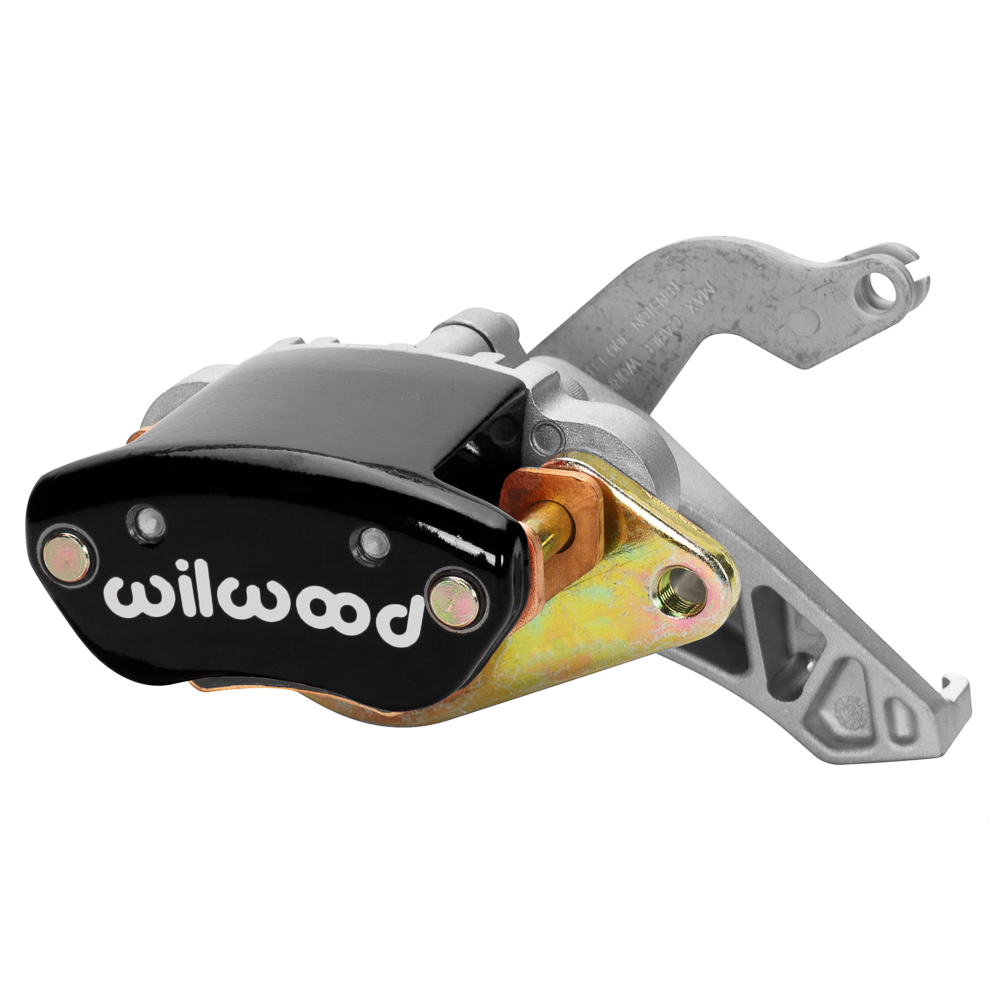

Wilwood's MC4 Mechanical Parking Brake Caliper is a multi-use, cable-operated brake caliper that combines high output performance with simplicity in design and construction, and is the perfect solution for vehicle applications requiring a separate, mechanically actuated parking brake caliper. Available calipers are built to accept rotors from .310” to 1.10” thick by part number, with an 11.00” - 14.00” diameter range, the MC4 combines an efficient die-cast body with a forged billet anvil for superior strength under load yet is lightweight at only 3.30 (2.95 without pads) pounds. Supplied with each caliper are our Composite Metallic (CM) high-friction, high static-hold brake pads and are pre-fitted with noise-canceling shields.
incl. VAT
Part number: 120-12069-BK
This is the number you are ordering.
Weight: 1,68 kg

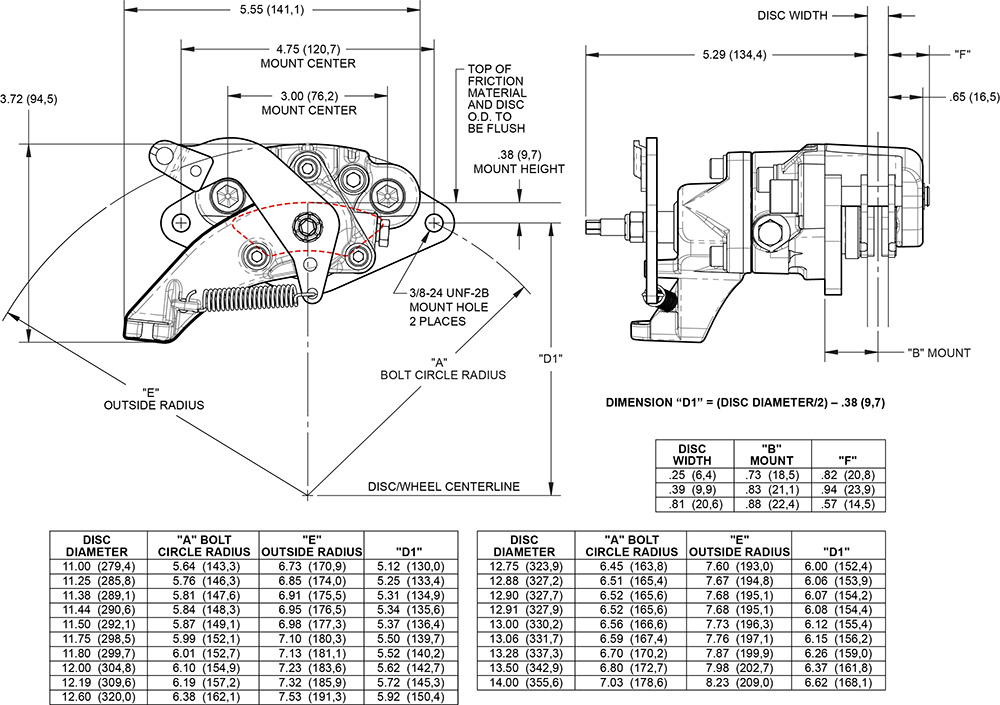

Specifications
- Model
- MC4 Mechanical
- Finish
- Black Powder Coat
- Mount
- Floating Mount
- Pistons
- 1
- Piston diameter
- 30,2 mm
- Piston area
- 716,1 mm²
- Mount size
- 76,2 mm
- Rotor width
- 20,6 mm
- Max. rotor diameter
- 355,6 mm
- Pad volume
- 4,3 cm³
- Pad plate
- 6407
- Piston material
- Aluminum
