Wilwood · Calipers

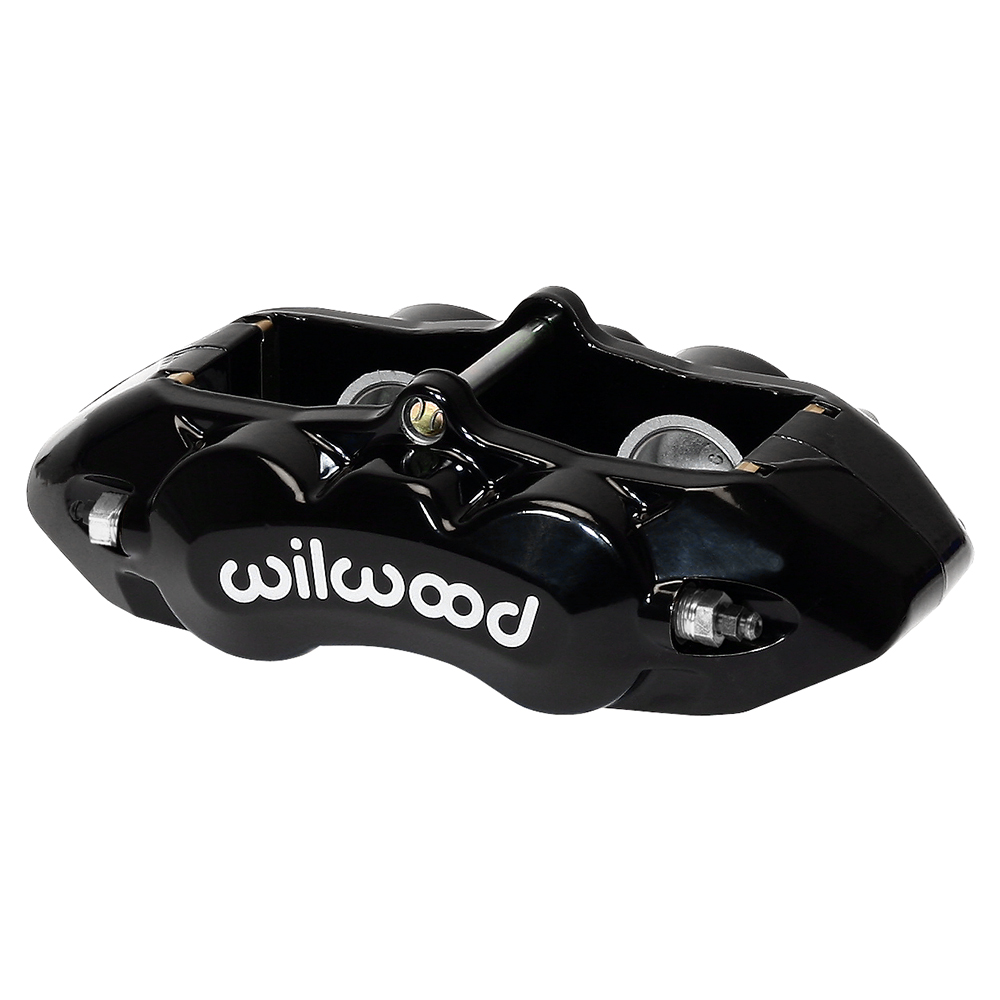

D8-4 Caliper Rear
D8-4 rear calipers are a direct bolt-on replacement for the OE factory rear calipers on all 1965-82 Corvettes. Forged billet aluminum bodies, stainless steel pistons, and high temperature seals put an end to the rust, bore pitting, and seal failures that plague the original cast iron caliper design.
€ 517,11 € 558,48
incl. VAT
Part number: 120-10526-BK
This is the number you are ordering.
Weight: 2,86 kg

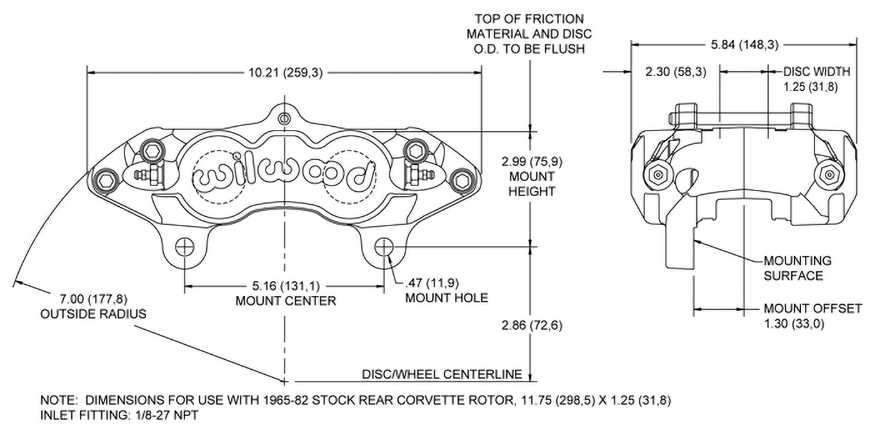

Specifications
- Model
- D8-4 Caliper Rear
- Finish
- Black Powder Coat
- Mount
- Lug Mount
- Pistons
- 4
- Piston diameter
- 35,1 mm
- Piston area
- 1.935,5 mm²
- Mount size
- 131,1 mm
- Rotor width
- 31,8 mm
- Max. rotor diameter
- 298,4 mm
- Pad volume
- 55,7 cm³
- Pad plate
- Brake Pad Plate # D8
- Piston material
- Stainless
