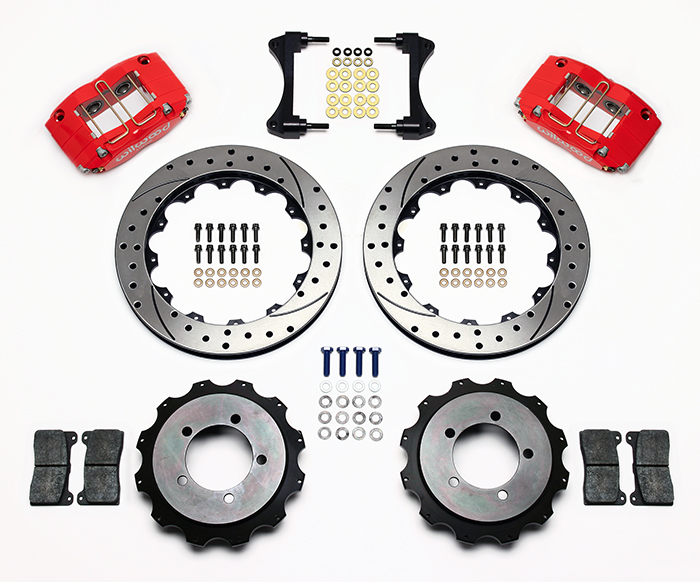

Dynapro Radial Rear Brake Kit For OE Parking Brake
Forged billet DynaPro four piston calipers and high performance BP-10 compound pads generate high clamping power with firm pedal response for this group of specialized rear axle brake kits. These kits retain full function of the OE parking brake and provide complimentary performance and style with front big brake upgrades. Caliper piston sizes are selected to provide balanced rear bias ratios using the output from the OE master cylinder. Rear rotor and hat combinations are engineered specific to each vehicle to provide brake performance upgrades and precise fit with the mounting of the DynaPro calipers.
€ 2.427,54 € 2.718,83
incl. VAT
Part number: 140-9286-DR
This is the number you are ordering.
Weight: 26,76 kg
Fits
Rear axle: OEM Flange
Specifications
- Caliper
- Dynapro Dust Seal Radial Mount
- Number of pistons
- 4
- Piston type
- Stainless
- Caliper finish
- Red Powder Coat
- Caliper mounting
- Radial
- Piston area
- 1.019 mm²
- Piston 1 bore
- 25,4 mm
- Piston 2 bore
- 25,4 mm
- Pad area
- 41 cm²
- Pad volume
- 49,2 cm³
- Rotor type
- SRP Drilled Rotor
- Rotor style
- SRP Drilled & Slotted
- Rotor material
- Spec-37 Iron
- Rotor finish
- Black Electro Coat
- Rotor diameter
- 327,2 mm
- Rotor thickness
- 27,9 mm
- Number of vanes
- 48 CV
- Burnished
- No
- Balanced
- Yes
- Hat type
- Parking Brake Hat - Standard
- Hat material
- Iron
- Hat finish
- Black E-Coat
- Hat offset
- 20,6 mm
- Minimum wheel diameter
- 431,8 mm
- Minimum wheel requirement
- *This Brake Kit may fit 17-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel.
- Kit mounting
- Radial
- Brake lines
- *Brake Lines Needed
