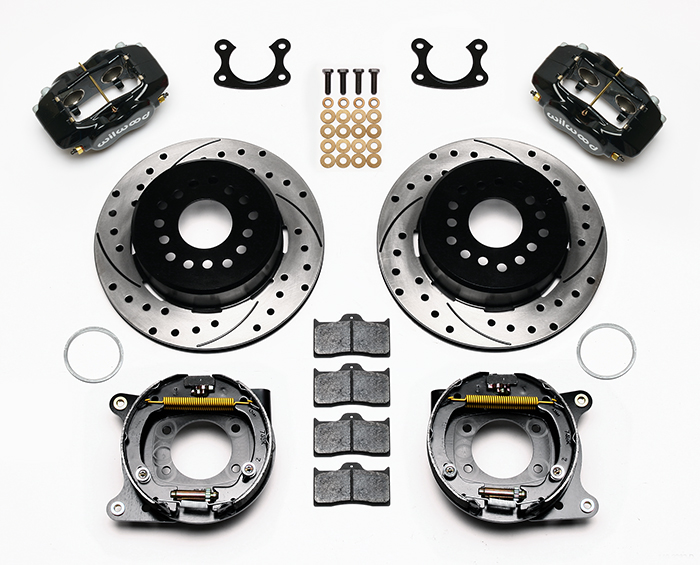

Forged Dynalite Rear Parking Brake Kit
This group of FDL Pro-Series rear disc kits provides a complete solution for popular muscle car rear axles that require a parking brake. Forged billet Dynalite four piston calipers, 12.19” one-piece drum/rotors, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance for every individual application.
€ 1.498,96 € 1.678,84
incl. VAT
Part number: 140-9282-D
This is the number you are ordering.
Weight: 22,68 kg
Fits
Rear axle: Small Ford Flange
Specifications
- Caliper
- Forged Dynalite Internal
- Number of pistons
- 4
- Piston type
- Stainless
- Caliper finish
- Black Powder Coat
- Caliper mounting
- Lug
- Piston area
- 1.935 mm²
- Piston 1 bore
- 35,1 mm
- Piston 2 bore
- 35,1 mm
- Pad area
- 41 cm²
- Pad volume
- 34,4 cm³
- Rotor type
- SRP Drilled Rotor & Hat
- Rotor style
- SRP Drilled & Slotted
- Rotor material
- Iron
- Rotor finish
- Black Electro Coat
- Rotor diameter
- 309,6 mm
- Rotor thickness
- 20,6 mm
- Number of vanes
- 32 V
- Burnished
- No
- Balanced
- No
- Minimum wheel diameter
- 381 mm
- Minimum wheel requirement
- *This Brake Kit may fit 15-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel.
- Kit mounting
- Lug
- Brake lines
- *Brake Lines Needed
