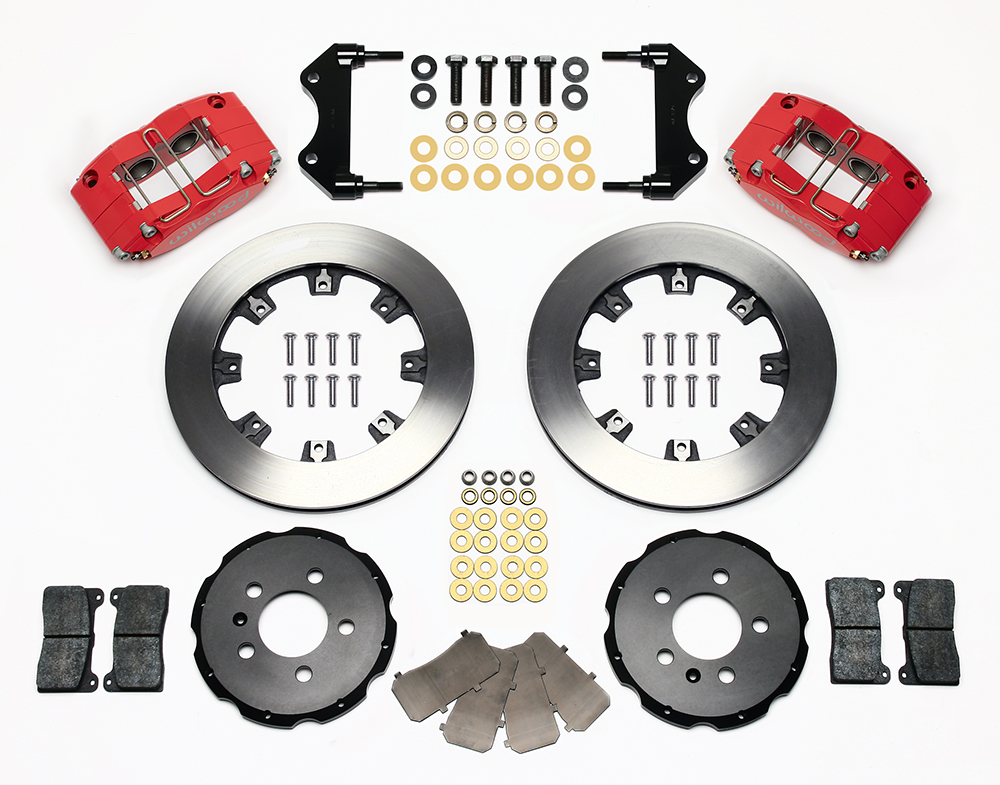

Dynapro Radial Big Brake Front Brake Kit (Hat)
Radial mounting provides secure and accurate installation of the forged billet DynaPro four piston caliper with large diameter rotors for this group of front and all wheel drive sport compacts. These kits are the perfect compliment to wheel, tire, and suspension upgrades on daily drivers, competition vehicles, and custom styled show machines. Each kit is engineered specific for each vehicle to maintain full compatibility with the OE master cylinder output and factory ABS functions. Optional caliper finishes and rotor designs provide choices that enable the builder to personalize the style and optimize brake performance.
incl. VAT
Part number: 140-8276-R
This is the number you are ordering.
Versions
Weight: 16,78 kg
Fits
Specifications
- Caliper
- Dynapro Dust Seal Radial Mount
- Number of pistons
- 4
- Piston type
- Stainless
- Caliper finish
- Red Powder Coat
- Caliper mounting
- Radial
- Piston area
- 1.935 mm²
- Piston 1 bore
- 35,1 mm
- Piston 2 bore
- 35,1 mm
- Pad area
- 41 cm²
- Pad volume
- 49,2 cm³
- Rotor type
- Ultralite HP 32
- Rotor style
- Plain Face
- Rotor material
- Iron
- Rotor finish
- Plain
- Rotor diameter
- 309,6 mm
- Rotor thickness
- 20,6 mm
- Number of vanes
- 32 V
- Burnished
- No
- Balanced
- No
- Rotor option
- Undrilled
- Hat type
- Big Brake Hat - Short Offset
- Hat material
- Aluminum
- Hat finish
- Black E-Coat
- Hat offset
- 10,4 mm
- Minimum wheel diameter
- 381 mm
- Minimum wheel requirement

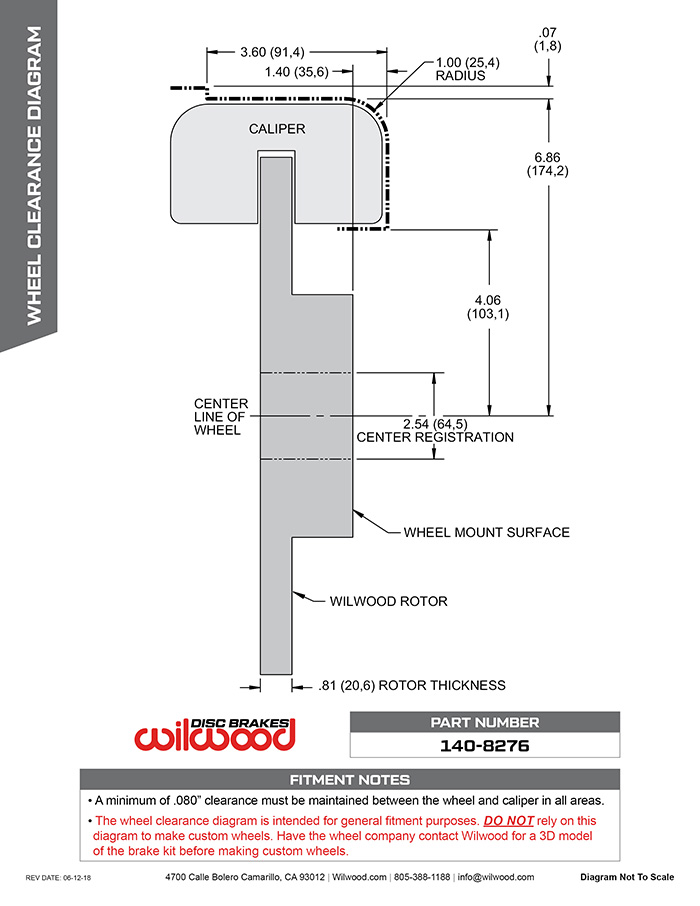

- *This Brake Kit may fit 15-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel.
- Kit mounting
- Radial
- Brake lines
- *Brake Lines Needed

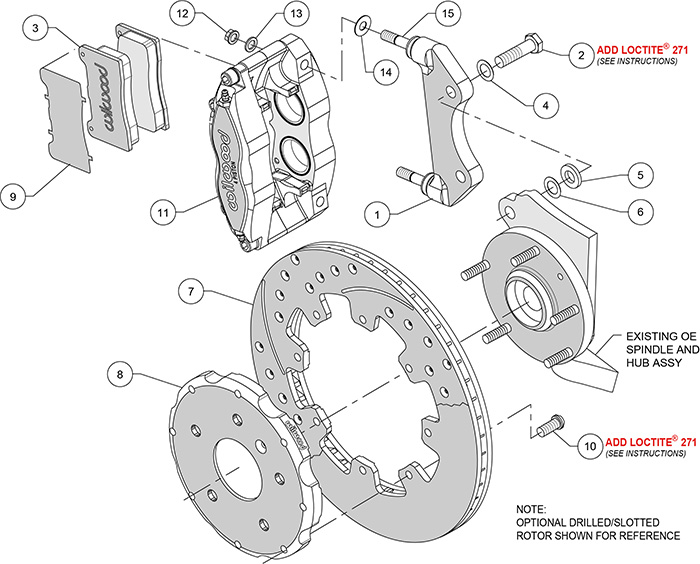

Kit contents
230-8390Bolt Kit-Rotor
Bolt Kit
-
Fitting kit - Bleed Screw M10 - 4 pk.
Bleed Screw Kit
220-6069
300-7316Pad Retaining Clip
Pad Retainer
300-5876Caliper Wear Plate
Wear Plate - Right Hand · R/H
- 300-5876
Caliper Wear Plate
Wear Plate - Left Hand · L/H
130-10540Caliper Crossover O-Ring Kit
CrossOver O-Ring Kit
200-7516Caliper Pistons - Cast Stainless
Replacement Piston 2
- 200-7516
Caliper Pistons - Cast Stainless
Replacement Piston 1
- 130-17060
Caliper Square Ring and Dust Seal Kit
O-ring Kit
170-8269Big Brake Hat - Short Offset
Hat - Part No · Black E-Coat
160-5843Ultralite HP 32 Vane Rotor
Right Hand - Part No · R/H
- 160-5843
Ultralite HP 32 Vane Rotor
Left Hand - Part No · L/H
120-14701-RDDynapro Dust Seal Radial Mount
Right Hand - Part No · R/H · Red Powder Coat
- 120-14701-RD
Dynapro Dust Seal Radial Mount
Left Hand - Part No · L/H · Red Powder Coat
