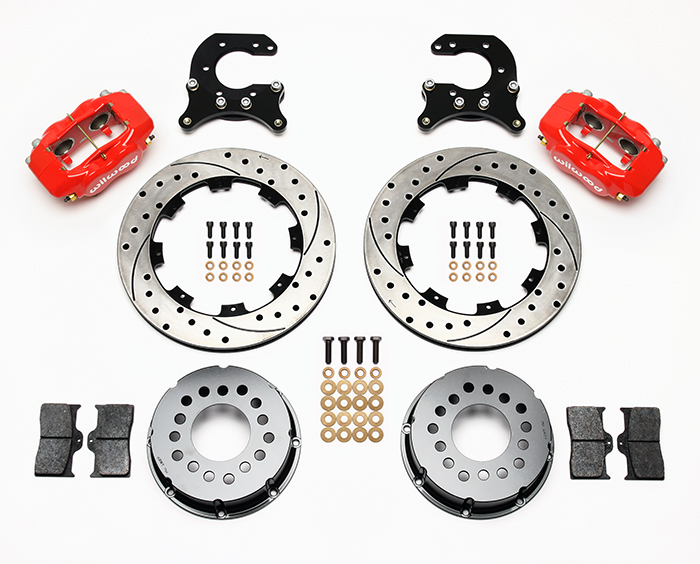

Forged Dynalite Pro Series Rear Brake Kit
FDL Pro-Series rear disc brake kits provide a complete solution for popular muscle car rear axles on applications where individual wheel parking brake assemblies are not required. Forged billet Dynalite four piston calipers, two-piece hat and rotor assemblies, and high friction pads provide optimized and balanced braking for all types of off-road, competition, and other customized applications. FDL calipers can be optioned with a full range of finishes to reflect personalized style. Rotor choices provide options for high-tech show winning style, or heavy weight durability and cooling capacity for high heat competition.
€ 1.357,08 € 1.519,93
incl. VAT
Part number: 140-2113-DR
This is the number you are ordering.
Weight: 16,33 kg
Fits
Rear axle: Small Ford Flange
Specifications
- Caliper
- Forged Dynalite Internal
- Number of pistons
- 4
- Piston type
- Stainless
- Caliper finish
- Red Powder Coat
- Caliper mounting
- Lug
- Piston area
- 1.935 mm²
- Piston 1 bore
- 35,1 mm
- Piston 2 bore
- 35,1 mm
- Pad area
- 41 cm²
- Pad volume
- 34,4 cm³
- Rotor type
- SRP Drilled Rotor
- Rotor style
- SRP Drilled & Slotted
- Rotor material
- Iron
- Rotor finish
- Black Electro Coat
- Rotor diameter
- 309,6 mm
- Rotor thickness
- 20,6 mm
- Number of vanes
- 32 V
- Burnished
- No
- Balanced
- No
- Hat type
- Pro-Street Hat - Standard
- Hat material
- Aluminum
- Hat finish
- Black E-Coat
- Hat offset
- 50,8 mm
- Minimum wheel diameter
- 381 mm
- Minimum wheel requirement
- *This Brake Kit may fit 15-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel.
- Kit mounting
- Lug
- Brake lines
- *Brake Lines Needed
