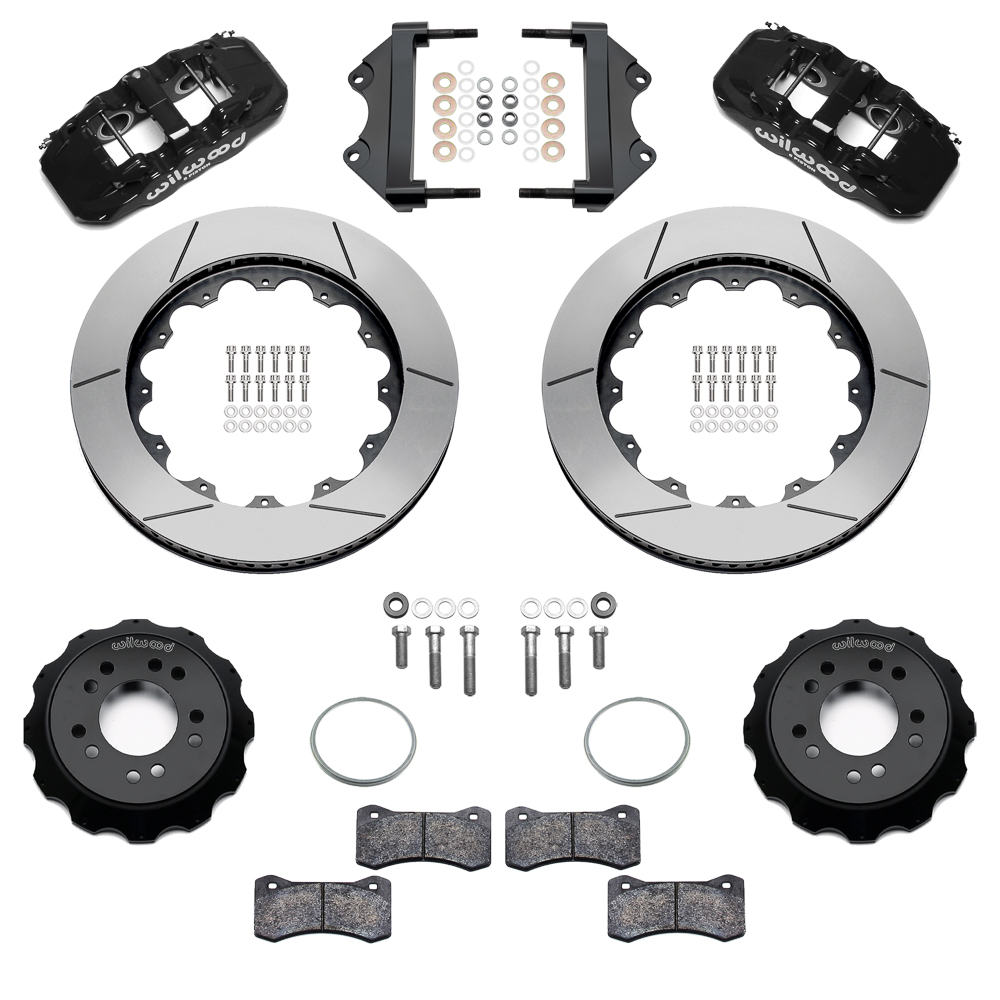

AERO6 Big Brake Front Brake Kit
AERO6 calipers were designed for the specific purpose of providing big capacity braking with large diameter rotors for heavy weight and extreme duty vehicles. For cars, it’s the biggest of the big providing big brake performance for show and dual purpose street and track vehicles. For trucks and SUV’s, it provides big stopping power for towing, off-road, and enhanced braking with wheel and tire upgrades. Kits listed for specific vehicles are fully compatible with OE master cylinder output and ABS function. Directional staggered vane 14.00” to 15.00”rotors provide maximum cooling for sustained high heat durability.
incl. VAT
Part number: 140-18367
This is the number you are ordering.
Specifications
- Caliper
- AERO6
- Number of pistons
- 6
- Piston type
- Stainless
- Caliper finish
- Black Powder Coat
- Caliper mounting
- Radial
- Piston area
- 2.606 mm²
- Piston 1 bore
- 41,2 mm
- Piston 2 bore
- 28,5 mm
- Piston 3 bore
- 28,5 mm
- Pad area
- 71,6 cm²
- Pad volume
- 85,2 cm³
- Rotor type
- GT 72 Curved Vane
- Rotor style
- GT Slotted
- Rotor material
- Spec-37 Iron
- Rotor finish
- Black Electro Coat
- Rotor diameter
- 355,6 mm
- Rotor thickness
- 31,8 mm
- Number of vanes
- 72 CV
- Burnished
- No
- Balanced
- Yes
- Rotor option
- Slotted
- Hat type
- Big Brake Hat - Flared Bell
- Hat material
- Aluminum
- Hat finish
- Black E-Coat
- Hat offset
- 38,1 mm
- Minimum wheel diameter
- 457,2 mm
- Minimum wheel requirement
- *This Brake Kit may fit 18-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel.
- Kit mounting
- Radial
- Brake lines
- *Brake Lines Needed
Kit contents
230-8008Bolt Kit-Rotor
Bolt Kit
-
Bleed Screw Assy / 4 pk.
Bleed Screw Kit
220-0627
180-9874Pad retainer and pin kit
Pad Retainer
300-5876Caliper Wear Plate
Wear Plate - Right Hand · R/H
- 300-5876
Caliper Wear Plate
Wear Plate - Left Hand · L/H
200-7513Caliper Pistons - Cast Stainless
Replacement Piston 3
- 200-7513
Caliper Pistons - Cast Stainless
Replacement Piston 2
200-7519Caliper Pistons - Cast Stainless
Replacement Piston 1
- 130-5972
Caliper Square Ring Kit
O-ring Kit
170-11937Big Brake Hat - Flared Bell
Hat - Part No · Black E-Coat
160-8398-GTBGT 72 Curved Vane Rotor
Right Hand - Part No · R/H
- 160-8399-GTB
GT 72 Curved Vane Rotor
Left Hand - Part No · L/H
120-13289-BKAero6 Radial Mount
Right Hand - Part No · R/H · Black Powder Coat
- 120-13290-BK
Aero6 Radial Mount
Left Hand - Part No · L/H · Black Powder Coat
