Forged Narrow Superlite 6R Big Brake Front Brake Kit (Hat)
The unsurpassed braking capacity of the Forged Narrow Superlite 6R six-piston caliper serves as the base of this group of 13”-14” big rotor kits for these popular late model vehicles. FNSL6R kits are engineered application specific for simplified installation and full compatibility with OE master cylinder output and ABS functions where used. Big brake kits provide increased brake capacity and complimentary style with wheel, tire, and suspension upgrades on show cars and high performance street/track machines. Optional caliper finishes and rotor designs simplify personalizing the style and braking requirements of any application.
incl. VAT
Part number: 140-18247-R
This is the number you are ordering.
Versions
Weight: 27,67 kg
Fits
Specifications
- Caliper
- Forged Narrow Superlite 6R
- Number of pistons
- 6
- Piston type
- Stainless
- Caliper finish
- Red Powder Coat
- Caliper mounting
- Radial
- Piston area
- 2.606 mm²
- Piston 1 bore
- 41,2 mm
- Piston 2 bore
- 28,5 mm
- Piston 3 bore
- 28,5 mm
- Pad area
- 52,9 cm²
- Pad volume
- 62,3 cm³
- Rotor type
- GT 72 Curved Vane
- Rotor style
- GT Slotted
- Rotor material
- Spec-37 Iron
- Rotor finish
- Black Electro Coat
- Rotor diameter
- 355,6 mm
- Rotor thickness
- 31,8 mm
- Number of vanes
- 72 CV
- Burnished
- No
- Balanced
- Yes
- Rotor option
- Slotted
- Hat type
- Big Brake Hat - Short Offset
- Hat material
- Aluminum
- Hat finish
- Black E-Coat
- Hat offset
- 15,1 mm
- Minimum wheel diameter
- 457,2 mm
- Minimum wheel requirement
- *This Brake Kit may fit 18-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel.
- Kit mounting
- Radial
- Brake lines
- *Brake Lines Needed

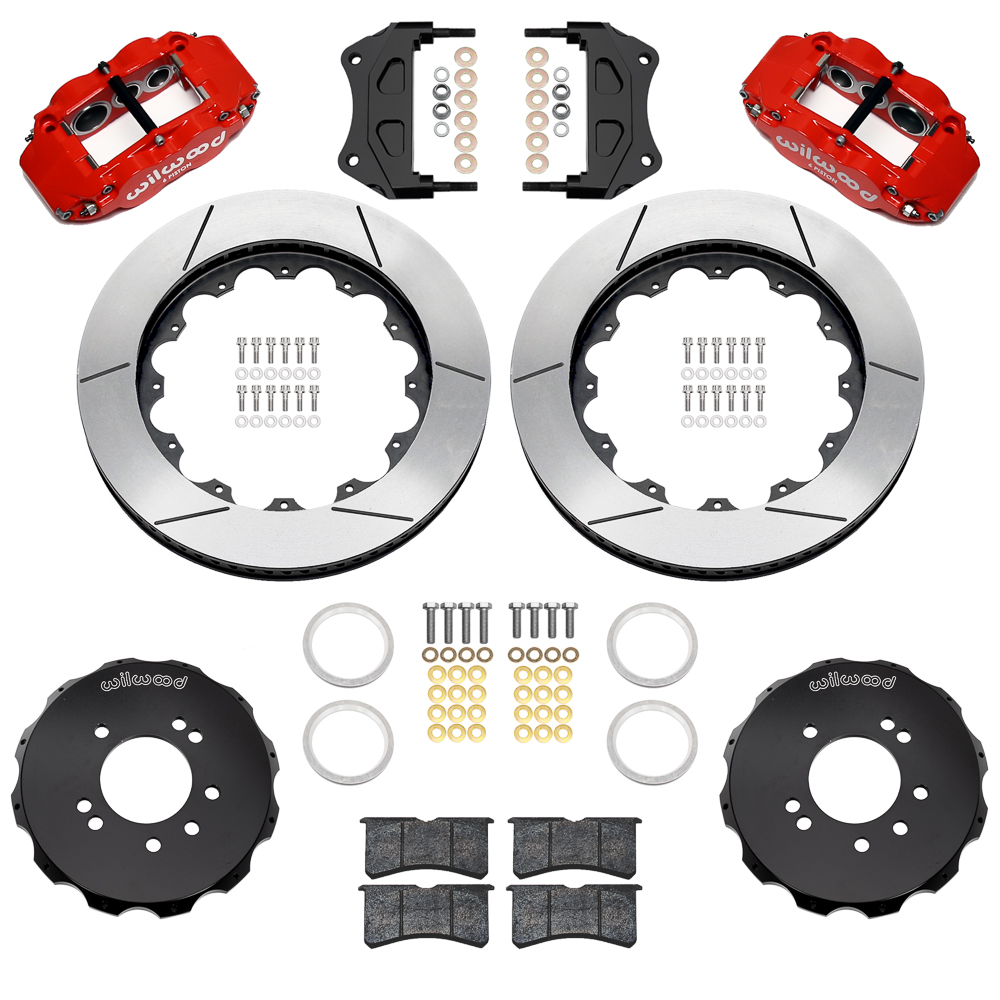

Kit contents
230-8008Bolt Kit-Rotor
Bolt Kit
-
Bleed Screw Assy / 4 pk.
Bleed Screw Kit
220-0627
300-6595Caliper Wear Plate
Wear Plate - Right Hand · R/H
300-6596Caliper Wear Plate
Wear Plate - Left Hand · L/H
130-10540Caliper Crossover O-Ring Kit
CrossOver O-Ring Kit
200-8439Caliper Pistons - Cast Stainless
Replacement Piston 3
- 200-8439
Caliper Pistons - Cast Stainless
Replacement Piston 2
200-7520Caliper Pistons - Cast Stainless
Replacement Piston 1
- 130-5972
Caliper Square Ring Kit
O-ring Kit
170-18077Big Brake Hat - Short Offset
Hat - Part No · Black E-Coat
160-8398-GTBGT 72 Curved Vane Rotor
Right Hand - Part No · R/H
- 160-8399-GTB
GT 72 Curved Vane Rotor
Left Hand - Part No · L/H
120-11778-RDForged Narrow Superlite 6 Radial Mount
Right Hand - Part No · R/H · Red Powder Coat
- 120-11779-RD
Forged Narrow Superlite 6 Radial Mount
Left Hand - Part No · L/H · Red Powder Coat
