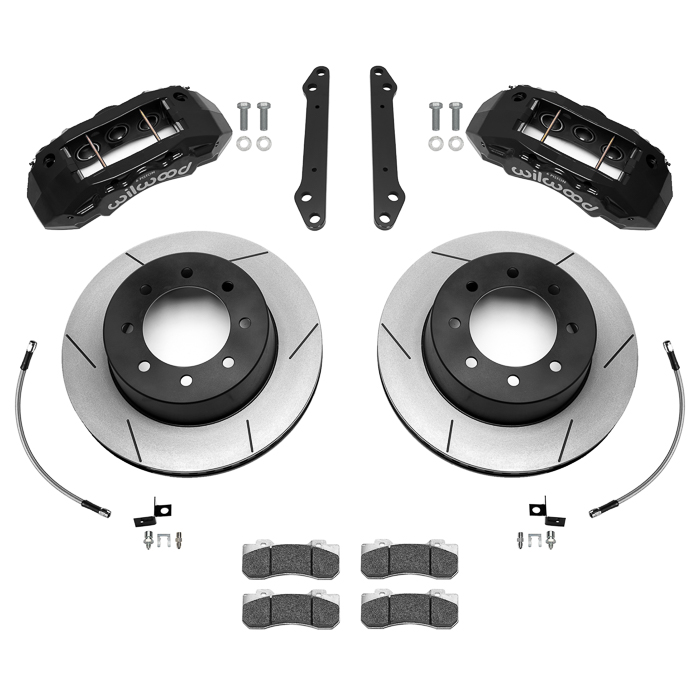

TX6-DM Big Brake Truck Rear Brake Kit
Wilwood’s Tactical Extreme TX6-DM Direct Mount Big Brake rear kits are ultimate in braking performance for Truck, SUV and Armored Vehicles. Using TX6-DM direct mount six-piston calipers and massive 15.50” GTB grooved rotors, these kits deliver consistent stopping power and extreme duty durability under sustained high heat with this ready to bolt-on kit. The calipers are volume matched for compatibility with original equipment power brake system output. TX6-DM rear kits replace the factory disc brakes and use the OE parking brake assembly as a compliment to front big brake upgrades. Kits include all the necessary hardware to complete the installation. Braided stainless steel flex lines are included for most applications.
incl. VAT
Part number: 140-17697
This is the number you are ordering.
Weight: 58,97 kg
Fits
Rear axle: Flange
Specifications

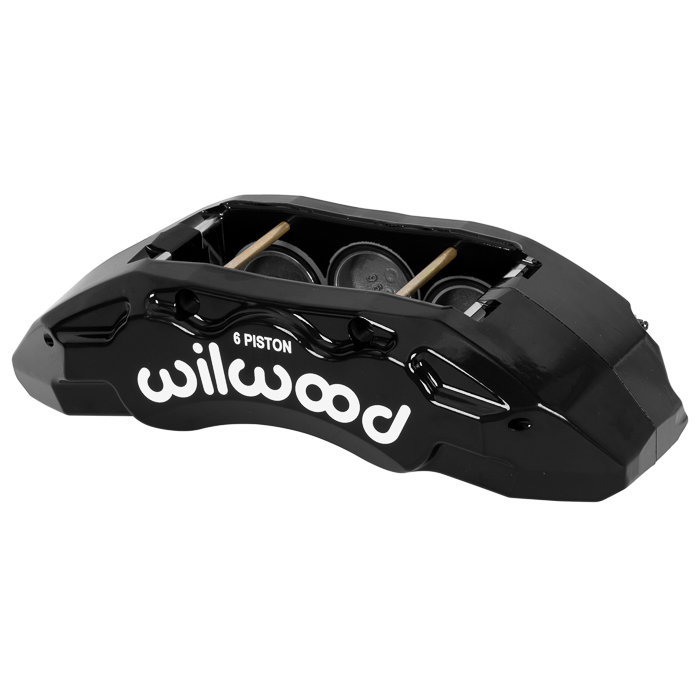

- Caliper
- TX6-DM
- Number of pistons
- 6
- Piston type
- Stainless
- Caliper finish
- Black Powder Coat
- Caliper mounting
- Lug
- Piston area
- 3.252 mm²
- Piston 1 bore
- 41,2 mm
- Piston 2 bore
- 35,1 mm
- Piston 3 bore
- 35,1 mm
- Pad area
- 81,9 cm²
- Pad volume
- 111,6 cm³
- Rotor type
- GTB Vented Rotor & Hat
- Rotor style
- GT Slotted
- Rotor material
- Iron
- Rotor finish
- Black Electro Coat
- Rotor diameter
- 393,7 mm
- Rotor thickness
- 35,1 mm
- Number of vanes
- 48 V
- Burnished
- No
- Balanced
- No
- Minimum wheel diameter
- 508 mm
- Minimum wheel requirement
- *This Brake Kit may fit 20-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel.
- Kit mounting
- Lug
- Brake lines
- Brake Lines
