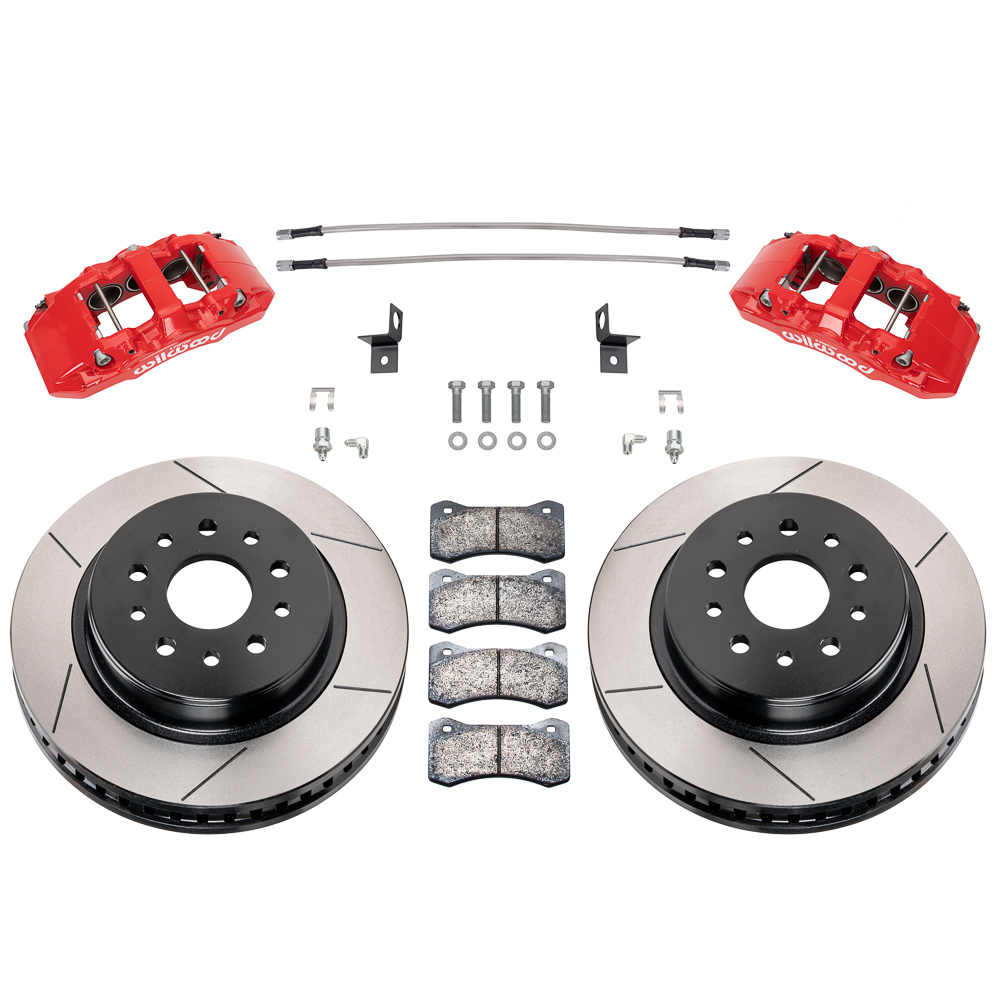

AERO6-DM Direct-Mount Truck Front Brake Kit
AERODM Six Piston calipers were designed for the specific purpose of providing a direct mount, large capacity braking solution with large diameter rotors for heavy weight and extreme duty vehicles. For trucks and SUV’s, it provides big stopping power for towing, off-road, and enhanced braking with wheel and tire upgrades. Kits listed for specific vehicles are fully compatible with OE master cylinder output and ABS function. OEM style 1 piece 13.38" to 13.56" diameter rotors provide maximum cooling for sustained high heat durability.
incl. VAT
Part number: 140-17274-R
This is the number you are ordering.
Versions
Weight: 37,2 kg
Fits
Specifications
- Caliper
- AERODM
- Number of pistons
- 6
- Piston type
- Stainless
- Caliper finish
- Red Powder Coat
- Caliper mounting
- Lug
- Piston area
- 3.484 mm²
- Piston 1 bore
- 44,5 mm
- Piston 2 bore
- 35,1 mm
- Piston 3 bore
- 35,1 mm
- Pad area
- 71,6 cm²
- Pad volume
- 85,2 cm³
- Rotor type
- GTB Vented Rotor & Hat
- Rotor style
- GT Slotted
- Rotor material
- Iron
- Rotor finish
- Black Electro Coat
- Rotor diameter
- 339,9 mm
- Rotor thickness
- 31,8 mm
- Number of vanes
- 48 V
- Burnished
- No
- Balanced
- Yes
- Rotor option
- Slotted
- Minimum wheel diameter
- 431,8 mm
- Minimum wheel requirement
- *This Brake Kit may fit 17-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel.
- Kit mounting
- Lug
- Brake lines
- Brake Lines
Kit contents
-
Bleed Screw Assy / 4 pk.
Bleed Screw Kit
220-0627
180-17957Pad retainer and pin kit
Pad Retainer
300-5876Caliper Wear Plate
Wear Plate - Right Hand · R/H
- 300-5876
Caliper Wear Plate
Wear Plate - Left Hand · L/H
130-10540Caliper Crossover O-Ring Kit
CrossOver O-Ring Kit
200-7516Caliper Pistons - Cast Stainless
Replacement Piston 3
- 200-7516
Caliper Pistons - Cast Stainless
Replacement Piston 2
200-7531Caliper Pistons - Cast Stainless
Replacement Piston 1
- 130-17056
Caliper Square Ring and Dust Seal Kit
O-ring Kit
160-16964-GTBGT Vented Rotor & Hat
Right Hand - Part No · R/H
- 160-16964-GTB
GT Vented Rotor & Hat
Left Hand - Part No · L/H

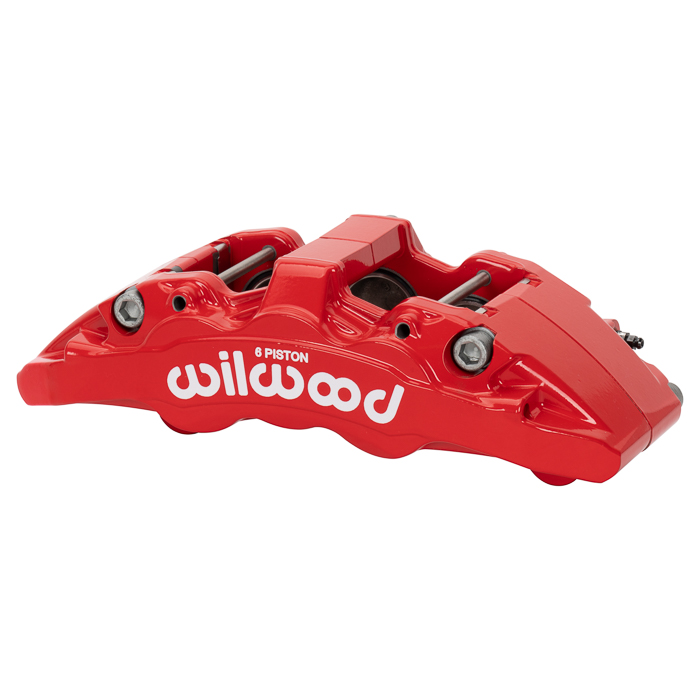

120-16952-RDAeroDM Lug Mount
Right Hand - Part No · R/H · Red Powder Coat
- 120-16953-RD
AeroDM Lug Mount
Left Hand - Part No · L/H · Red Powder Coat
