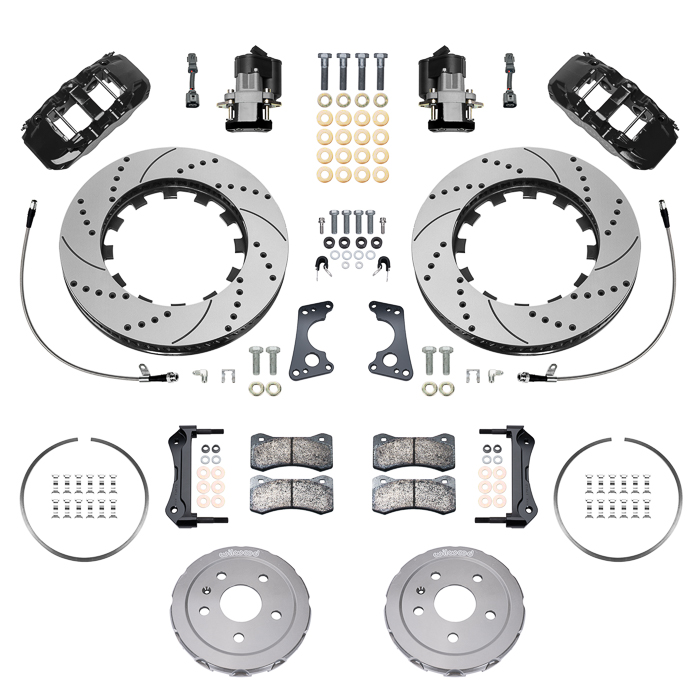

AERO4 Big Brake Rear Dynamic Electronic Parking Brake Kit
AERO4 Big Brake Dynamic Rear Electronic Parking Brake Kits provide the ultimate Big Brake solution for Super Car rear axles an integrated electronic parking brake. Aero4 four piston calipers, 15” Dynamic Lug Mount rotors, and high performance BP compound pads, provide optimized and balanced braking to compliment front big brake upgrades. The unique Electronic Parking Brake caliper provides a static high torque static holding power for parking without mechanical cabling. Supplied with control unit and harness assembly, it simplifies installation and use. Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance for every individual application.
incl. VAT
Part number: 140-17009-D
This is the number you are ordering.
Weight: 41,28 kg
Fits
Rear axle: OEM Flange
Specifications
- Caliper
- AERO4
- Number of pistons
- 4
- Piston type
- Stainless
- Caliper finish
- Black Powder Coat
- Caliper mounting
- Radial
- Piston area
- 2.297 mm²
- Piston 1 bore
- 41,2 mm
- Piston 2 bore
- 35,1 mm
- Pad area
- 71,6 cm²
- Pad volume
- 85,2 cm³
- Rotor type
- SRP Drilled Rotor
- Rotor style
- SRP Drilled & Slotted
- Rotor material
- Spec-37 Iron
- Rotor finish
- Black Electro Coat
- Rotor diameter
- 381 mm
- Rotor thickness
- 31,8 mm
- Number of vanes
- 72 CV
- Burnished
- No
- Balanced
- Yes
- Hat type
- Big Brake Dynamic Lug Drive - Short Offset
- Hat material
- Aluminum
- Hat finish
- Type III Anodize
- Hat offset
- 6,8 mm
- Minimum wheel diameter
- 482,6 mm
- Minimum wheel requirement
- *This Brake Kit may fit 19-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel.
- Kit mounting
- Radial
- Brake lines
- Brake Lines
