Dynapro Radial Big Brake Front Brake Kit (Hub)
This NDPR Big Brake Kit is designed for the Wilwood's Tri-Five Pro spindles. Tri-Five Pro Spindles fit 55-57 full size Chevrolet vehicles. NDPR Brake Kits feature Aluminum Hub assemblies, Forged Narrow Dynapro 4-piston radial mount calipers and two piece 12.19” SRP drilled or HD plain face rotors with aluminum rotor adapters to deliver the ultimate combination for braking power. Built exclusively for most 15” and larger wheels, NDPR kits enhance tire and suspension upgrades on street and track machines. Verify fitment on the Wilwood website.
incl. VAT
Part number: 140-16907-DR
This is the number you are ordering.
Versions
Weight: 20,87 kg
Fits
Specifications
- Caliper
- Dynapro Radial Mount
- Number of pistons
- 4
- Piston type
- Stainless
- Caliper finish
- Red Powder Coat
- Caliper mounting
- Radial
- Piston area
- 3.097 mm²
- Piston 1 bore
- 44,5 mm
- Piston 2 bore
- 44,5 mm
- Pad area
- 41 cm²
- Pad volume
- 34,4 cm³
- Rotor type
- SRP Drilled Rotor
- Rotor style
- SRP Drilled & Slotted
- Rotor material
- Iron
- Rotor finish
- Black Electro Coat
- Rotor diameter
- 309,6 mm
- Rotor thickness
- 20,6 mm
- Number of vanes
- 32 V
- Burnished
- No
- Balanced
- No
- Rotor option
- Drilled & Slotted
- Hat type
- Big Brake Hat - Short Offset
- Hat material
- Aluminum
- Hat finish
- Black E-Coat
- Hat offset
- 36,3 mm
- Hub type
- Hub - Hat Mount
- Hub material
- Aluminum
- Hub finish
- Bare
- Hub mounting
- Hat
- Hub offset
- +.34
- Minimum wheel diameter
- 381 mm
- Minimum wheel requirement
- *This Brake Kit may fit 15-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel.
- Kit mounting
- Lug
- Brake lines
- *Brake Lines Needed

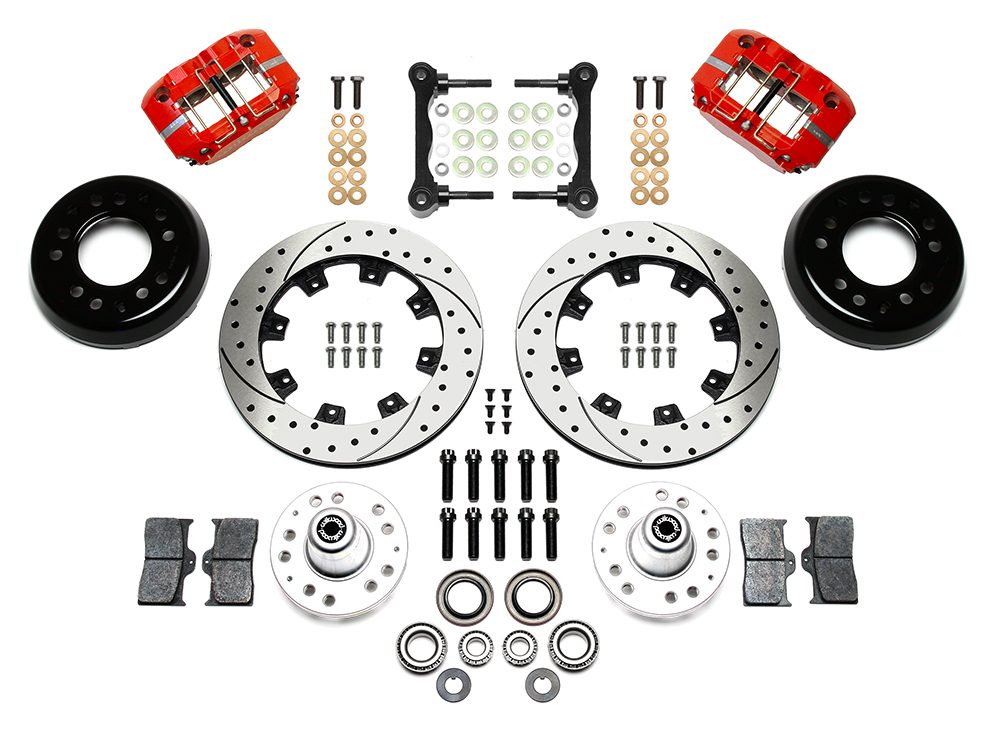

Kit contents
Bolt Kit-Hub
Bolt Kit
230-7032
230-8390Bolt Kit-Rotor
Bolt Kit
-
Bleed Screw Assy / 4 pk.
Bleed Screw Kit
220-0627
300-9636Pad Retaining Clip
Pad Retainer
300-5876Caliper Wear Plate
Wear Plate - Right Hand · R/H
- 300-5876
Caliper Wear Plate
Wear Plate - Left Hand · L/H
230-10118Caliper Bridge Bolt Kit
Bridge Bolt Kit
130-10540Caliper Crossover O-Ring Kit
CrossOver O-Ring Kit
200-7528Caliper Pistons - Cast Stainless
Replacement Piston 2
- 200-7528
Caliper Pistons - Cast Stainless
Replacement Piston 1
130-2655Caliper Square Ring Kit
O-ring Kit
270-10487Hub - Hat Mount
Hub - Part No · Bare
170-7632Big Brake Hat - Short Offset
Hat - Part No · Black E-Coat
160-7103-BKSRP Drilled Performance Rotor
Right Hand - Part No · R/H
- 160-7104-BK
SRP Drilled Performance Rotor
Left Hand - Part No · L/H
120-10000-RDNarrow Dynapro Radial Mount
Right Hand - Part No · R/H · Red Powder Coat
- 120-10000-RD
Narrow Dynapro Radial Mount
Left Hand - Part No · L/H · Red Powder Coat
