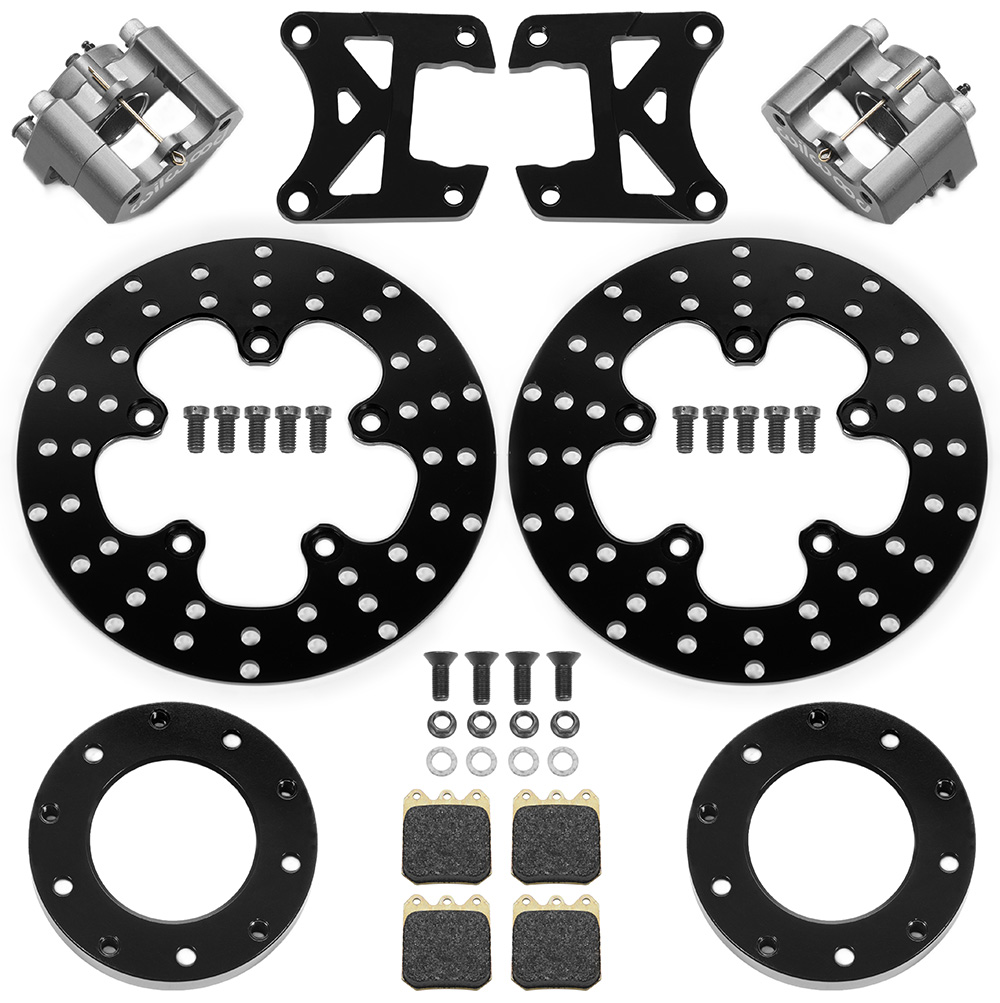

Dynalite Single Floater Front Drag Brake Kit
The Dynalite Single Floater front drag kit is purpose built for use on lightweight cars using spindle mount brakes on various lightweight drag spindles. The DLSF calipers and lightweight steel rotors combine to provide excellent static holding power for use as a staging brake or as a supplementary brake on vehicles using parachutes and rear brakes to provide the majority of the stopping power. Aluminum hats are provided to mount the rotors directly to the spindle mount wheels. A choice of solid or lightweight drilled rotors is offered to provide the lowest possible weight to the front axle. Mount brackets are included.
€ 1.232,93 € 1.380,88
incl. VAT
Part number: 140-16558-D
This is the number you are ordering.
Weight: 6,8 kg
Specifications
- Caliper
- Dynalite Single Floater
- Number of pistons
- 1
- Piston type
- Stainless
- Caliper finish
- Type III Anodize
- Caliper mounting
- Floating
- Piston area
- 1.548 mm²
- Piston 1 bore
- 44,5 mm
- Pad area
- 19,4 cm²
- Pad volume
- 18 cm³
- Rotor type
- Drilled Steel Rotor
- Rotor style
- Drilled
- Rotor material
- Steel
- Rotor finish
- Black Electro Coat
- Rotor diameter
- 254 mm
- Rotor thickness
- 6,3 mm
- Number of vanes
- Solid
- Burnished
- No
- Balanced
- No
- Hat type
- Drag Hat - Spindle Mount
- Hat material
- Aluminum
- Hat finish
- Black E-Coat
- Hat offset
- 19 mm
- Minimum wheel requirement
- *This Brake Kit may fit -inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel.
- Kit mounting
- Floating
- Brake lines
- *Brake Lines Needed
