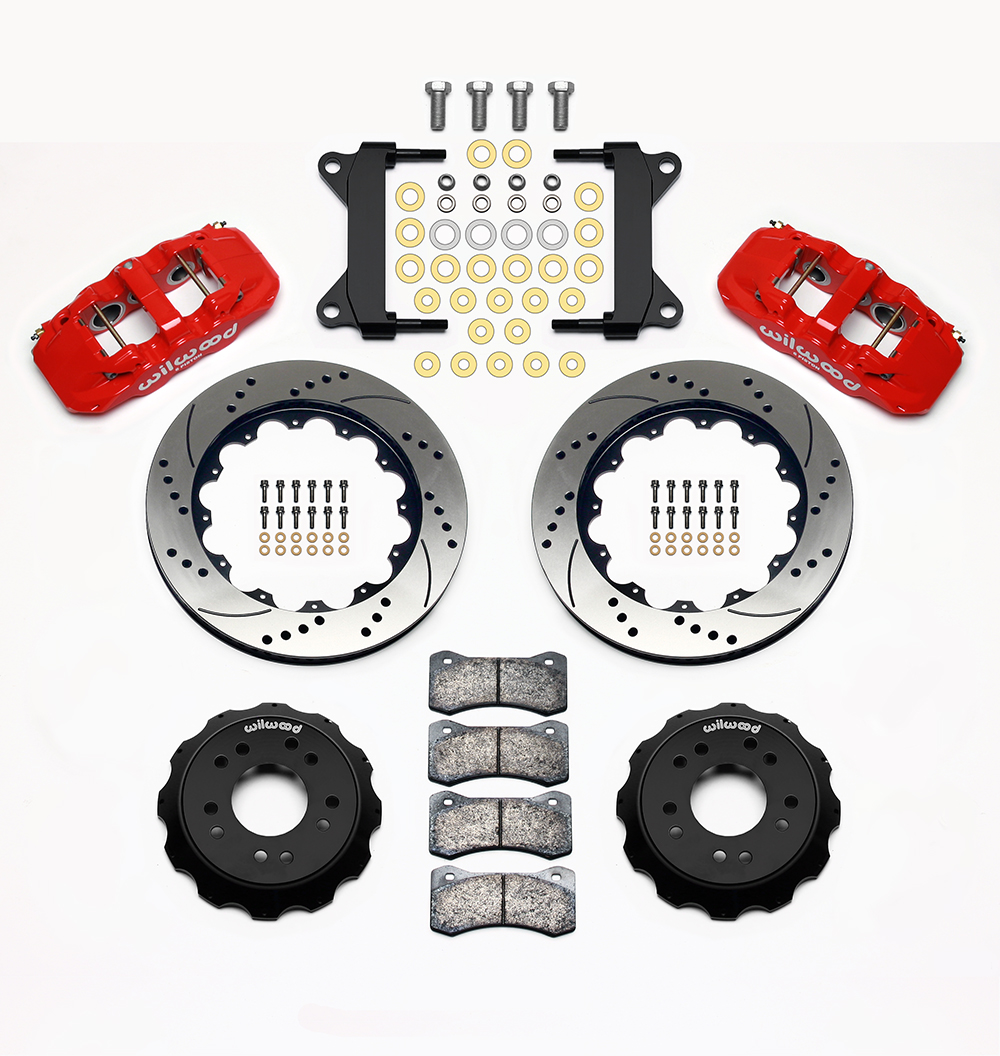

AERO6 Big Brake Front Brake Kit
AERO6 calipers were designed for the specific purpose of providing big capacity braking with large diameter rotors for heavy weight and extreme duty vehicles. These kits are for he popular 1963 thru 1987 Chevrolet & GM C10 / C15 Trucks with Wilwood's new Modular Drop Pro Spindles. AERO6 Big Brake Kitst provide big stopping power for towing, off-road, and enhanced braking with wheel and tire upgrades. Kits are fully compatible with OE master cylinder output and ABS function. Directional staggered vane 14.00” rotors provide maximum cooling for sustained high heat durability.
incl. VAT
Part number: 140-15305-DR
This is the number you are ordering.
Versions
Weight: 30,84 kg
Fits
- Chevrolet Blazer (1970–1974)
- Chevrolet C10 (1975–1986)
- Chevrolet C10 Panel (1963–1967)
- Chevrolet C10 Pickup (1963–1974)
- Chevrolet C10 Suburban (1967–1986)
- Chevrolet K5 Blazer (1975–1982)
- Chevrolet R10 Pickup (1987)
- Chevrolet R10 Suburban (1987)
- Chevrolet Suburban (1963–1966)
- GMC 1000 (1966)
- GMC 1000 Series (1963–1965)
- GMC C15 (1975–1978)
- GMC C15 Suburban (1975–1978)
- GMC C15/C1500 Suburban (1967–1974)
- GMC C1500 Pickup (1967–1986)
- GMC C1500 Suburban (1979–1986)
- GMC Jimmy (1970–1982)
- GMC R1500 Pickup (1987)
- GMC R1500 Suburban (1987)
- GMC Suburban (1963–1966)
- Wilwood GM C10 Alum Modular ProSpindle (1963–1970)
- Wilwood GM C10 Alum Modular ProSpindle (1971–1987)
Specifications
- Caliper
- AERO6
- Number of pistons
- 6
- Piston type
- Stainless
- Caliper finish
- Red Powder Coat
- Caliper mounting
- Radial
- Piston area
- 3.484 mm²
- Piston 1 bore
- 44,5 mm
- Piston 2 bore
- 35,1 mm
- Piston 3 bore
- 35,1 mm
- Pad area
- 71,6 cm²
- Pad volume
- 85,2 cm³
- Rotor type
- SRP Drilled Rotor
- Rotor style
- SRP Drilled & Slotted
- Rotor material
- Spec-37 Iron
- Rotor finish
- Black Electro Coat
- Rotor diameter
- 355,6 mm
- Rotor thickness
- 31,8 mm
- Number of vanes
- 72 CV
- Burnished
- No
- Balanced
- Yes
- Rotor option
- Drilled & Slotted
- Hat type
- Big Brake Hat - Flared Bell
- Hat material
- Aluminum
- Hat finish
- Black E-Coat
- Hat offset
- 35,1 mm
- Hub offset
- +0.41
- Minimum wheel diameter
- 457,2 mm
- Minimum wheel requirement
- *This Brake Kit may fit 18-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel.
- Kit mounting
- Radial
- Brake lines
- *Brake Lines Needed
Kit contents
230-8008Bolt Kit-Rotor
Bolt Kit
-
Bleed Screw Assy / 4 pk.
Bleed Screw Kit
220-0627
180-9874Pad retainer and pin kit
Pad Retainer
300-5876Caliper Wear Plate
Wear Plate - Right Hand · R/H
- 300-5876
Caliper Wear Plate
Wear Plate - Left Hand · L/H
200-7516Caliper Pistons - Cast Stainless
Replacement Piston 3
- 200-7516
Caliper Pistons - Cast Stainless
Replacement Piston 2
200-7531Caliper Pistons - Cast Stainless
Replacement Piston 1
130-3084Caliper Square Ring Kit
O-ring Kit
170-14209Big Brake Hat - Flared Bell
Hat - Part No · Black E-Coat
160-8396-BKSRP Drilled Performance Rotor
Right Hand - Part No · R/H
- 160-8397-BK
SRP Drilled Performance Rotor
Left Hand - Part No · L/H
120-13293-RDAero6 Radial Mount
Right Hand - Part No · R/H · Red Powder Coat
- 120-13294-RD
Aero6 Radial Mount
Left Hand - Part No · L/H · Red Powder Coat
