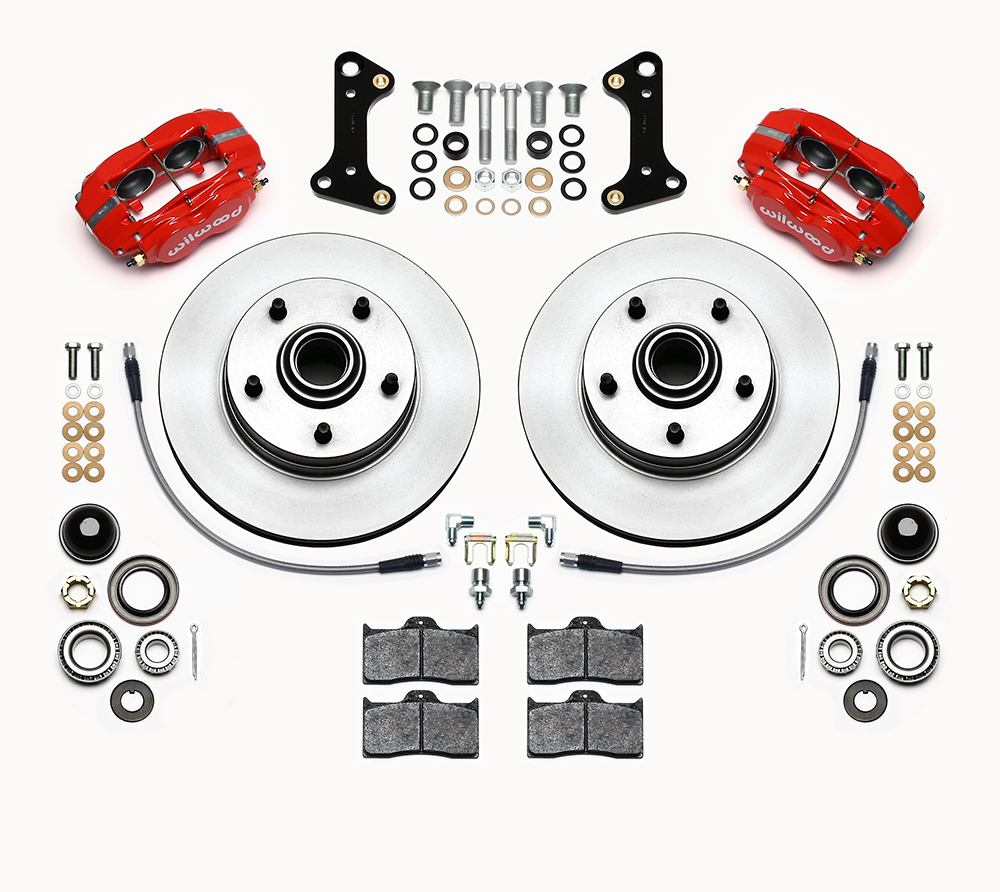

Classic Series Dynalite Front Brake Kit
Wilwood’s Classic Series front disc brake kits for 1964 to 1974 GM A-body, X-body and 1967-69 F-body offer disc brake upgrade solutions for OEM Drum & Disc brake spindles. These kits feature the FDL-M four piston forged aluminum caliper and 11.00" diameter x 1.00” thick one-piece rotors. This new kit widens the track by only +.47" from original drum brake position or narrows by -.03" from the original disc brake rotor assembly. The FDL-M caliper is a modified version of the time-tested Forged Dynalite caliper, and provides the greatest amount of wheel clearance of any four piston caliper in its size class. Newly updated OEM style one-piece cast iron rotors with integrated hubs with 1/2"-20 screw in wheel studs simplify installation while providing superb dimensional stability and wear resistance. These versatile kits are easily optioned to suit the braking requirements and style preferences for a daily driver or the most discriminating show enthusiast. Intended vehicle applications require no modifications for installation, and clear most 14" OEM wheels. Classic Series FDL-M kits can be used with either manual or power boost master cylinders, and come complete with calipers, rotors, brackets, hardware, braided steel line kit and detailed installation instructions.
incl. VAT
Part number: 140-15272-R
This is the number you are ordering.
Versions
Weight: 28,12 kg
Fits
- Buick Apollo (1973–1974)
- Buick Gran Sport (1965–1967)
- Buick GS (1970–1972)
- Buick GS 350 (1968–1969)
- Buick GS 350 (1968)
- Buick GS 350 (1969)
- Buick GS 400 (1968–1969)
- Buick GS 400 (1968)
- Buick GS 400 (1969)
- Buick GS 455 (1970–1972)
- Buick Skylark (1964–1972)
- Buick Skylark (1964–1966)
- Buick Skylark (1967–1970)
- Buick Skylark (1967–1972)
- Buick Special (1964–1969)
- Buick Special (1964–1966)
- Buick Special (1967–1969)
- Buick Sportwagon (1964–1972)
- Buick Sportwagon (1964–1966)
- Buick Sportwagon (1967–1970)
- Buick Sportwagon (1967–1972)
- Chevrolet Camaro (1967–1969)
- Chevrolet Camaro (1968–1969)
- Chevrolet Chevelle (1964–1972)
- Chevrolet Chevelle (1964–1966)
- Chevrolet Chevelle (1967–1972)
- Chevrolet Chevy II (1962–1967)
- Chevrolet Chevy II (1964–1966)
- Chevrolet Chevy II (1967–1968)
- Chevrolet Corvette (1963–1964)
- Chevrolet Corvette (1965–1982)
- Chevrolet El Camino (1964–1972)
- Chevrolet El Camino (1964–1966)
- Chevrolet El Camino (1967–1972)
- Chevrolet Malibu (1964–1966)
- Chevrolet Malibu (1967)
- Chevrolet Monte Carlo (1970–1972)
- Chevrolet Nova (1967–1974)
- Chevrolet Nova (1969–1974)
- Ford F-100 (1965–1979)
- Ford Falcon (1960–1965)
- Ford Mustang (1964–1966)
- GMC Sprint (1971–1972)
- Mercury Comet (1960–1965)
- Oldsmobile 442 (1964–1971)
- Oldsmobile 442 (1964–1966)
- Oldsmobile 442 (1967–1972)
- Oldsmobile 442 (1970–1971)
- Oldsmobile Cutlass (1964–1972)
- Oldsmobile Cutlass (1964–1966)
- Oldsmobile Cutlass (1967–1972)
- Oldsmobile Cutlass (1970–1972)
- Oldsmobile Cutlass Supreme (1967–1972)
- Oldsmobile Cutlass Supreme (1970–1972)
- Oldsmobile F85 (1964–1972)
- Oldsmobile F85 (1964–1966)
- Oldsmobile F85 (1967–1969)
- Oldsmobile F85 (1967–1972)
- Oldsmobile F85 (1970–1972)
- Oldsmobile Omega (1973–1974)
and 23 other vehicles
Specifications
- Caliper
- Forged Dynalite-M
- Number of pistons
- 4
- Piston type
- Stainless
- Caliper finish
- Red Powder Coat
- Caliper mounting
- Lug
- Piston area
- 3.097 mm²
- Piston 1 bore
- 44,5 mm
- Piston 2 bore
- 44,5 mm
- Pad area
- 41 cm²
- Pad volume
- 34,4 cm³
- Rotor type
- 1 PC Hub and Rotor
- Rotor style
- Plain Face
- Rotor material
- Iron
- Rotor finish
- Plain
- Rotor diameter
- 279,4 mm
- Rotor thickness
- 25,4 mm
- Number of vanes
- Vented
- Burnished
- No
- Balanced
- No
- Rotor option
- Undrilled
- Hub offset
- +.47
- Minimum wheel diameter
- 355,6 mm
- Minimum wheel requirement

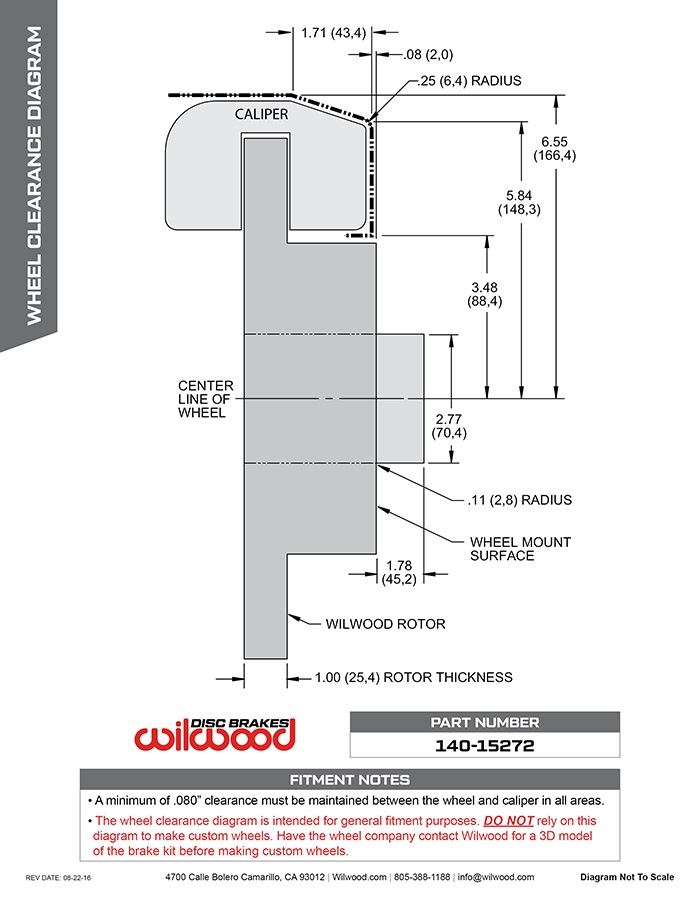

- *This Brake Kit may fit 14-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel.
- Kit mounting
- Lug
- Brake lines
- Brake Lines
Kit contents
-
Bleed Screw Assy / 4 pk.
Bleed Screw Kit
220-0627
180-0056Cotter Pin Kit for1.25 rotor width Dynalite Series of calipers.
Pad Retainer
300-5875Caliper Wear Plate
Wear Plate - Right Hand · R/H
- 300-5875
Caliper Wear Plate
Wear Plate - Left Hand · L/H
130-10540Caliper Crossover O-Ring Kit
CrossOver O-Ring Kit
200-7528Caliper Pistons - Cast Stainless
Replacement Piston 2
- 200-7528
Caliper Pistons - Cast Stainless
Replacement Piston 1
130-2655Caliper Square Ring Kit
O-ring Kit
160-17515HP Hub & Rotor
Right Hand - Part No · R/H
- 160-17515
HP Hub & Rotor
Left Hand - Part No · L/H
