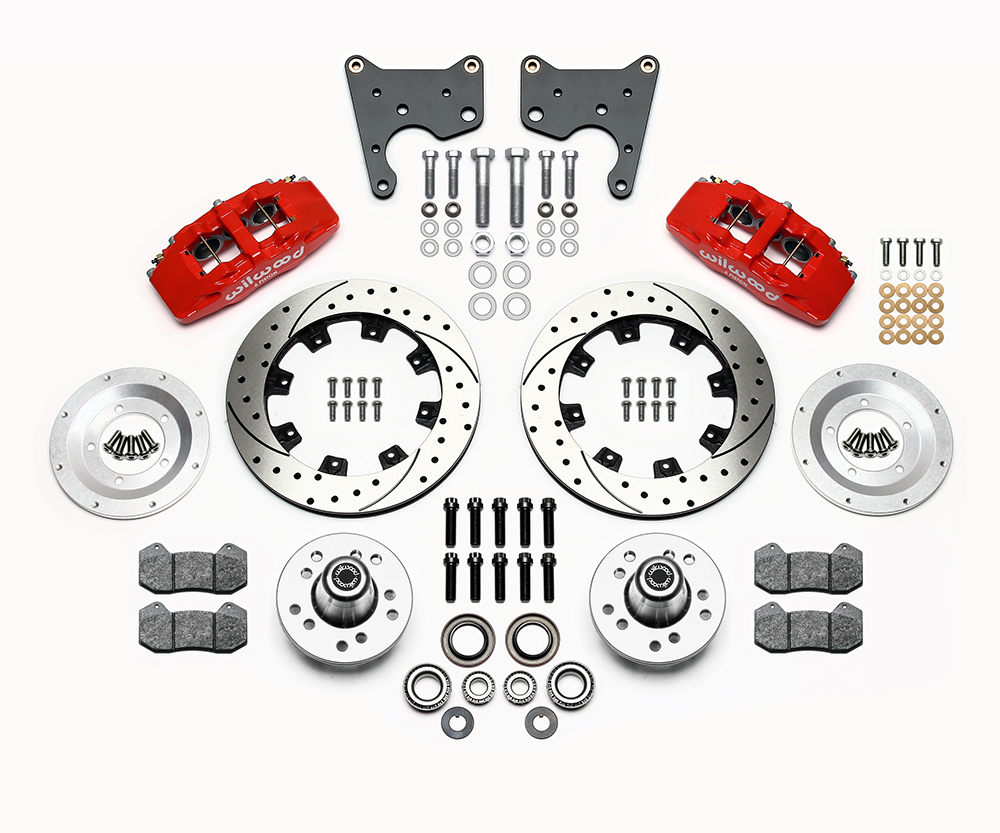

Forged Dynapro 6 Big Brake Front Brake Kit (Hub)
DynaPro 6 forged billet calipers are combined with 12.19” diameter rotors provide the added advantage of larger diameter brake rotors for Chrysler, Dodge & Plymouth 1965-1972 C-Body vehicles with drum brakes, offer disc brake upgrade solutions for OEM Drum spindles. DynaPro 6 calipers, 12.19” diameter rotors, and high performance Wilwood brake pads generate big brake stopping power to compliment wheel, tire, and suspension upgrades on all types of custom show and performance street / strip machines. A full range of options for caliper finish and rotor design provide custom builders with the ability to personalize the style and performance requirements of the mildest to the wildest machines.
incl. VAT
Part number: 140-15198-DR
This is the number you are ordering.
Versions
Weight: 22,68 kg
Fits
- Chrysler 300 (1965)
- Chrysler 300 (1966–1971)
- Chrysler New Yorker (1965)
- Chrysler New Yorker (1966–1972)
- Chrysler New Yorker (1972)
- Chrysler Newport (1965)
- Chrysler Newport (1966–1971)
- Chrysler Newport (1967–1972)
- Chrysler Newport (1971–1972)
- Chrysler Town & Country (1965)
- Chrysler Town & Country (1966–1972)
- Dodge Custom (1965)
- Dodge Monaco (1965)
- Dodge Monaco (1966–1972)
- Dodge Monaco (1967–1968)
- Dodge Polara (1965)
- Dodge Polara (1966–1972)
- Dodge Polara (1968–1969)
- Dodge Polara (1970)
- Dodge Polara (1970–1972)
- Dodge Polara (1971)
- Plymouth Fury (1965)
- Plymouth Fury (1966–1969)
- Plymouth Fury (1966–1971)
- Plymouth Fury (1966–1967)
- Plymouth Fury (1968–1972)
- Plymouth Fury (1970–1971)
- Plymouth Fury (1970)
- Plymouth Fury (1970–1972)
- Plymouth Fury (1971)
- Plymouth Fury (1972)
- Plymouth Fury I (1968–1972)
- Plymouth Fury II (1965)
- Plymouth Fury II (1966–1972)
- Plymouth Fury II (1968–1972)
- Plymouth Fury III (1965)
- Plymouth Fury III (1966–1972)
- Plymouth Fury III (1968–1972)
- Plymouth Gran Fury (1972)
- Plymouth VIP (1967)
Specifications
- Caliper
- Dynapro 6
- Number of pistons
- 6
- Piston type
- Stainless
- Caliper finish
- Red Powder Coat
- Caliper mounting
- Lug
- Piston area
- 3.265 mm²
- Piston 1 bore
- 41,2 mm
- Piston 2 bore
- 35,1 mm
- Piston 3 bore
- 35,1 mm
- Pad area
- 47,1 cm²
- Pad volume
- 39,3 cm³
- Rotor type
- SRP Drilled Rotor
- Rotor style
- SRP Drilled & Slotted
- Rotor material
- Iron
- Rotor finish
- Black Electro Coat
- Rotor diameter
- 309,6 mm
- Rotor thickness
- 20,6 mm
- Number of vanes
- 32 V
- Burnished
- No
- Balanced
- No
- Rotor option
- Drilled & Slotted
- Hub type
- Hub - Vented Rotor Offset
- Hub material
- Aluminum
- Hub finish
- Bare
- Hub mounting
- Adapter
- Hub offset
- +.04
- Minimum wheel diameter
- 381 mm
- Minimum wheel requirement
- *This Brake Kit may fit 15-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel.
- Kit mounting
- Lug
- Brake lines
- *Brake Lines Needed
Kit contents
-
Bleed Screw Assy / 4 pk.
Bleed Screw Kit
220-0627
300-17719Pad retainer and clip kit for DP6 series of calipers.
Pad Retainer
300-9707Caliper Wear Plate
Wear Plate - Right Hand · R/H
- 300-9707
Caliper Wear Plate
Wear Plate - Left Hand · L/H
130-10540Caliper Crossover O-Ring Kit
CrossOver O-Ring Kit
200-7518Caliper Pistons - Cast Stainless
Replacement Piston 3
- 200-7518
Caliper Pistons - Cast Stainless
Replacement Piston 2
200-7520Caliper Pistons - Cast Stainless
Replacement Piston 1
130-10535Caliper Square Ring Kit
O-ring Kit
270-15201Hub - Vented Rotor Offset
Hub - Part No · Bare
160-7103-BKSRP Drilled Performance Rotor
Right Hand - Part No · R/H
- 160-7104-BK
SRP Drilled Performance Rotor
Left Hand - Part No · L/H
120-13428-RDForged Dynapro 6A Lug Mount
Right Hand - Part No · R/H · Red Powder Coat
- 120-13429-RD
Forged Dynapro 6A Lug Mount
Left Hand - Part No · L/H · Red Powder Coat
