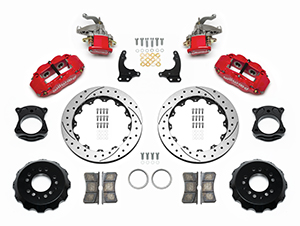

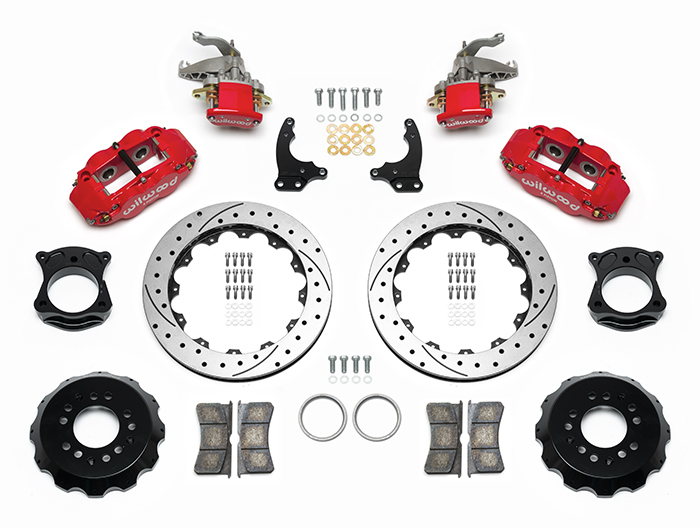

Forged Narrow Superlite 4R-MC4 Big Brake Rear Parking Brake Kit
FNSL4R rear big brake kits provide high capacity braking with contemporary styling for high performance street and show Corvettes , and all other custom built vehicles equipped with 1988-1996 C4 Corvette rear suspension. The original equipment single piston combination caliper is replaced with a high efficiency, forged aluminum narrow Superlite four-piston caliper for normal braking, and an auxiliary MC4 mechanical caliper for the parking brake. Rotor size is increased from 12.00" to 12.88", adding brake leverage and cooling capacity while complimenting the look inside custom wheel and tire upgrades.
€ 2.862,44 € 3.205,93
incl. VAT
Part number: 140-14883-DR
This is the number you are ordering.
Weight: 25,4 kg
Fits
Rear axle: OEM Flange
Specifications
- Caliper
- Forged Narrow Superlite 4R
- Number of pistons
- 4
- Piston type
- Stainless
- Caliper finish
- Red Powder Coat
- Caliper mounting
- Radial
- Piston area
- 1.277 mm²
- Piston 1 bore
- 28,5 mm
- Piston 2 bore
- 28,5 mm
- Pad area
- 52,9 cm²
- Pad volume
- 62,3 cm³
- Rotor type
- SRP Drilled Rotor
- Rotor style
- SRP Drilled & Slotted
- Rotor material
- Iron
- Rotor finish
- Black Electro Coat
- Rotor diameter
- 327,2 mm
- Rotor thickness
- 20,6 mm
- Number of vanes
- 48 CV
- Burnished
- No
- Balanced
- No
- Hat type
- Big Brake Hat - Flared Bell
- Hat material
- Aluminum
- Hat finish
- Black E-Coat
- Hat offset
- 30,5 mm
- Minimum wheel diameter
- 431,8 mm
- Minimum wheel requirement
- *This Brake Kit may fit 17-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel.
- Kit mounting
- Radial
- Brake lines
- *Brake Lines Needed
