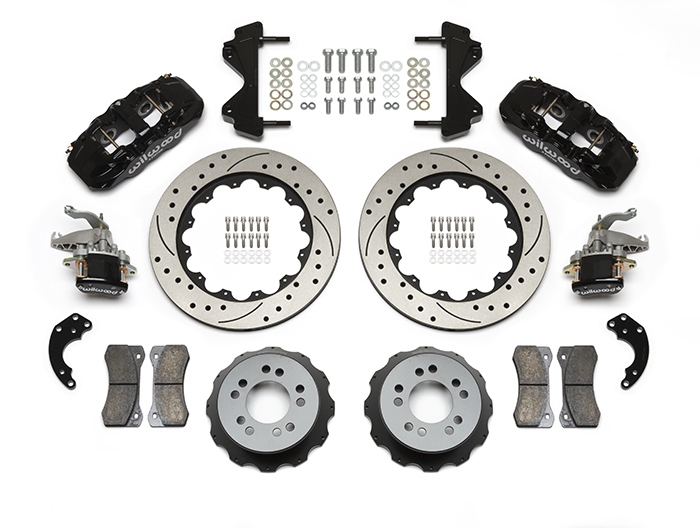

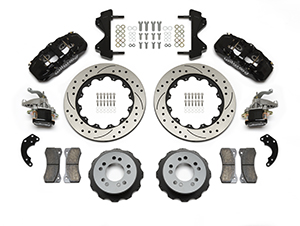

AERO4-MC4 Big Brake Rear Parking Brake Kit
AERO4-MC4 Big Brake Rear Axle Kits replace the factory disc brakes and use the MC4 parking brake assembly as a compliment to front big brake upgrades on late model high performance vehicles. High capacity braking from the AERO4R calipers, BP-10 compound pads, and oversized 14.00" rotors are matched to the OE master cylinder output, ABS function, and individual vehicle bias requirements. Enhanced brake performance, increased durability, and high-tech style compliment big wheel, tire, and suspension upgrades on customized vehicles and all others with increased brake requirements.
€ 3.097,48 € 3.469,18
incl. VAT
Part number: 140-14263-D
This is the number you are ordering.
Weight: 30,39 kg
Fits
Rear axle: Currie Pro-Tour Unit Bearing Flange
Specifications
- Caliper
- AERO4
- Number of pistons
- 4
- Piston type
- Stainless
- Caliper finish
- Black Powder Coat
- Caliper mounting
- Radial
- Piston area
- 1.277 mm²
- Piston 1 bore
- 28,5 mm
- Piston 2 bore
- 28,5 mm
- Pad area
- 71,6 cm²
- Pad volume
- 85,2 cm³
- Rotor type
- SRP Drilled Rotor
- Rotor style
- SRP Drilled & Slotted
- Rotor material
- Iron
- Rotor finish
- Black Electro Coat
- Rotor diameter
- 355,6 mm
- Rotor thickness
- 20,6 mm
- Number of vanes
- 36 V
- Burnished
- No
- Balanced
- Yes
- Hat type
- Big Brake Hat - Flared Bell
- Hat material
- Aluminum
- Hat finish
- Black E-Coat
- Hat offset
- 44,4 mm
- Minimum wheel diameter
- 457,2 mm
- Minimum wheel requirement
- *This Brake Kit may fit 18-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel.
- Kit mounting
- Radial
- Brake lines
- *Brake Lines Needed
