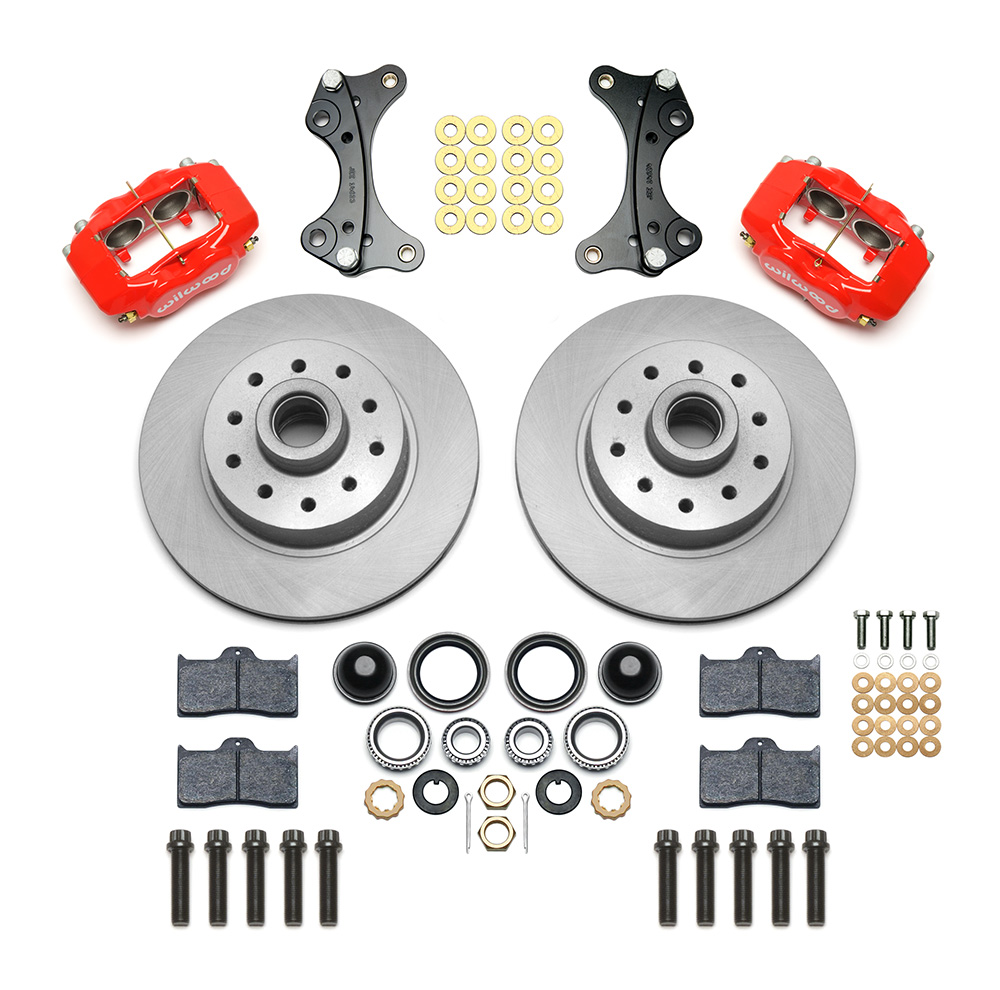

Classic Series Dynalite Front Brake Kit
Wilwood's Classic Series front disc brake kits offer an economical braking solution for Wilwood Pro Spindles. A completely new kit design, featuring a large 11.03" x 0.88” rotor and hub assembly. Now upgraded with a new design dual bolt pattern rotor with screw in ½-20 studs, providing both a 5 x 4.50” and 5 x 4.75” wheel bolt circle options. Classic Series kits are based on the venerable forged billet Dynalite caliper, these versatile kits are easily optioned to suit the braking requirements and style preferences for a daily driver or the most discriminating show enthusiast. Intended vehicle applications require no modifications for installation, and provide plenty of clearance inside popular 15" wheels. FDL 1 piece kits can be used with either manual or power boost master cylinders. Kits are complete with calipers, rotors and, hub assembly brackets and hardware. Kit requires purchase of additional brake line kit.
incl. VAT
Part number: 140-14065-R
This is the number you are ordering.
Weight: 29,94 kg
Fits
Specifications
- Caliper
- Forged Dynalite Internal
- Number of pistons
- 4
- Piston type
- Stainless
- Caliper finish
- Red Powder Coat
- Caliper mounting
- Lug
- Piston area
- 3.097 mm²
- Piston 1 bore
- 44,5 mm
- Piston 2 bore
- 44,5 mm
- Pad area
- 41 cm²
- Pad volume
- 34,4 cm³
- Rotor type
- 1 PC Hub and Rotor
- Rotor style
- Plain Face
- Rotor material
- Iron
- Rotor finish
- Plain
- Rotor diameter
- 280,2 mm
- Rotor thickness
- 22,4 mm
- Number of vanes
- Vented
- Burnished
- No
- Balanced
- No
- Rotor option
- Undrilled
- Hub offset
- +.27
- Minimum wheel diameter
- 381 mm
- Minimum wheel requirement

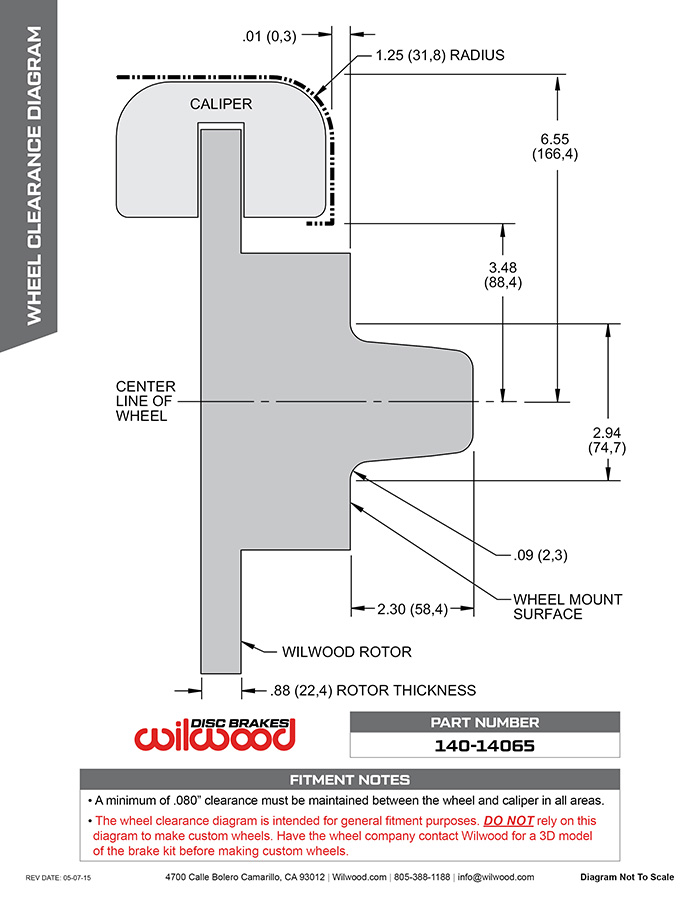

- *This Brake Kit may fit 15-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel.
- Kit mounting
- Lug
- Brake lines
- *Brake Lines Needed

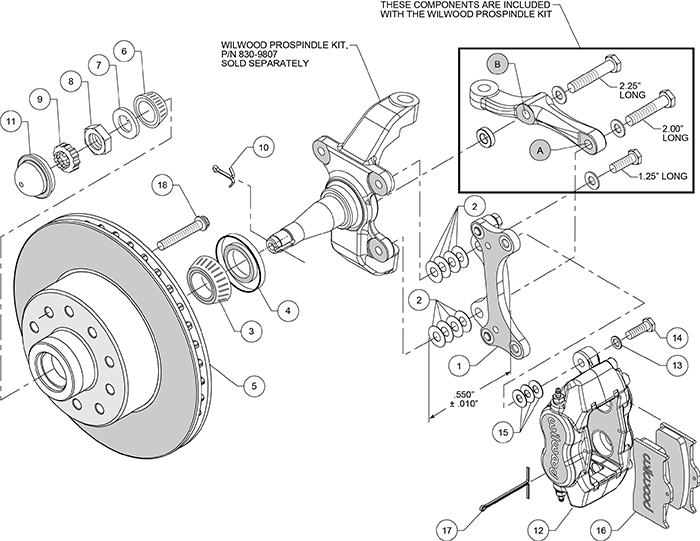

Kit contents
-
Bleed Screw Assy / 4 pk.
Bleed Screw Kit
220-0627
180-0056Cotter Pin Kit for1.25 rotor width Dynalite Series of calipers.
Pad Retainer
300-5875Caliper Wear Plate
Wear Plate - Right Hand · R/H
- 300-5875
Caliper Wear Plate
Wear Plate - Left Hand · L/H
130-10540Caliper Crossover O-Ring Kit
CrossOver O-Ring Kit
200-7528Caliper Pistons - Cast Stainless
Replacement Piston 2
- 200-7528
Caliper Pistons - Cast Stainless
Replacement Piston 1
130-2655Caliper Square Ring Kit
O-ring Kit
160-14269HP Hub & Rotor
Right Hand - Part No · R/H
- 160-14269
HP Hub & Rotor
Left Hand - Part No · L/H
120-13845-RDForged Dynalite Internal
Right Hand - Part No · R/H · Red Powder Coat
- 120-13845-RD
Forged Dynalite Internal
Left Hand - Part No · L/H · Red Powder Coat
