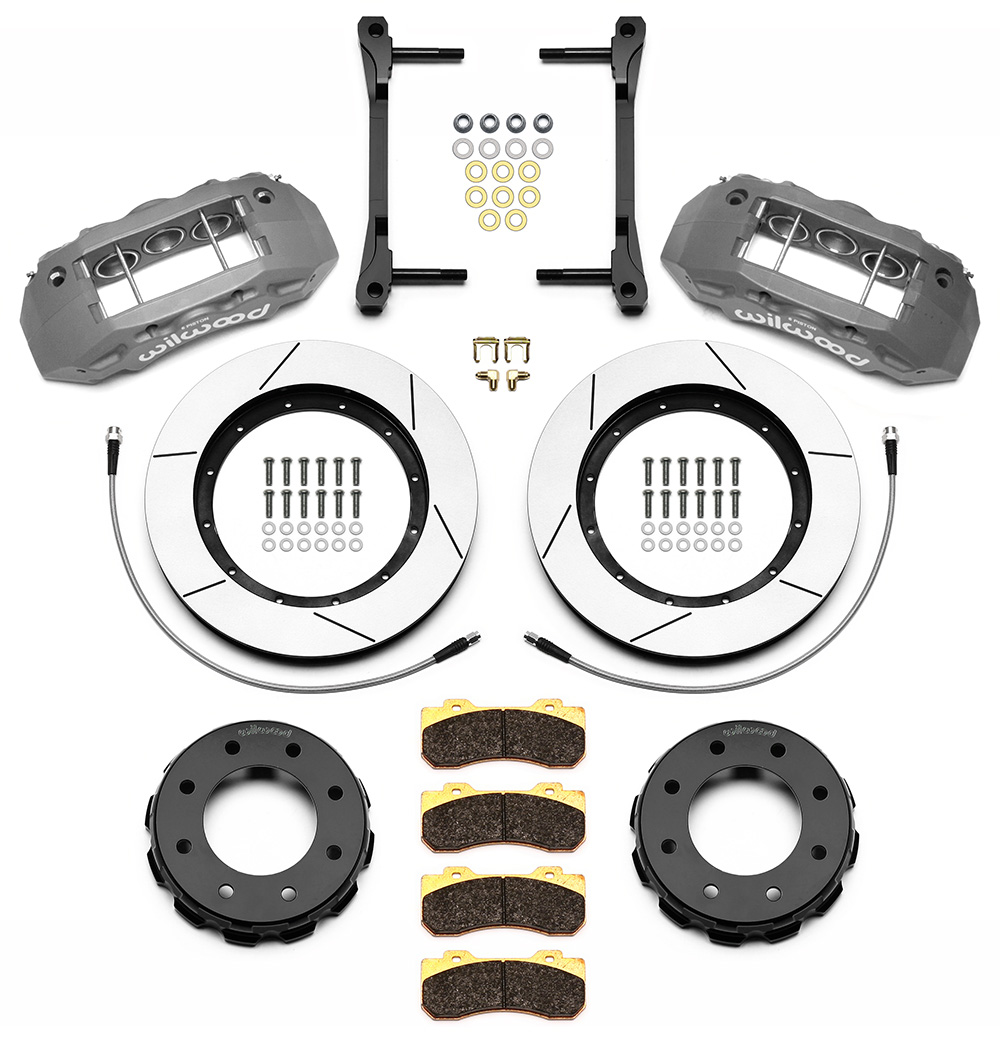

TX6R Big Brake Truck Front Brake Kit
Wilwood’s Tactical Extreme TX6R Big Brake kits are ultimate in braking performance for Truck, SUV and Armored Vehicles. Using TX6R radial mount six-piston calipers and massive 15.00” to 16.00” GT-60 directional vane Spec-37 alloy rotors, these kits deliver consistent stopping power and extreme duty durability under sustained high heat with this ready to bolt-on kit. The calipers are volume matched for compatibility with original equipment power brake system output. Kits include radial mount caliper brackets, and all the necessary hardware to complete the installation. Braided stainless steel flex lines will need to be purchased for some applications.
incl. VAT
Part number: 140-13873-C
This is the number you are ordering.
Weight: 48,99 kg
Fits
Specifications
- Caliper
- TX6R
- Number of pistons
- 6
- Piston type
- Stainless
- Caliper finish
- Type III Anodize
- Caliper mounting
- Radial
- Piston area
- 5.613 mm²
- Piston 1 bore
- 50,8 mm
- Piston 2 bore
- 47,8 mm
- Piston 3 bore
- 47,8 mm
- Pad area
- 81,9 cm²
- Pad volume
- 111,6 cm³
- Rotor type
- GT 60 Curved Vane
- Rotor style
- GT Slotted
- Rotor material
- Spec-37 Iron
- Rotor finish
- Black Electro Coat
- Rotor diameter
- 381 mm
- Rotor thickness
- 38,1 mm
- Number of vanes
- 60 CV
- Burnished
- No
- Balanced
- Yes
- Rotor option
- Slotted
- Hat type
- Truck Hat - Standard
- Hat material
- Aluminum
- Hat finish
- Black E-Coat
- Hat offset
- 48,8 mm
- Minimum wheel diameter
- 508 mm
- Minimum wheel requirement
- *This Brake Kit may fit 20-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel.
- Kit mounting
- Radial
- Brake lines
- Brake Lines
Kit contents
-
Bleed Screw Assy / 4 pk.
Bleed Screw Kit
220-0627
180-9874Pad retainer and pin kit
Pad Retainer
300-5923Caliper Wear Plate
Wear Plate - Right Hand · R/H
300-5922Caliper Wear Plate
Wear Plate - Left Hand · L/H
130-10540Caliper Crossover O-Ring Kit
CrossOver O-Ring Kit
200-7521Caliper Pistons - Cast Stainless
Replacement Piston 3
- 200-7521
Caliper Pistons - Cast Stainless
Replacement Piston 2
200-13808Caliper Pistons - Cast Stainless
Replacement Piston 1
130-14279Caliper Square Ring and Dust Seal Kit
O-ring Kit
170-13871Truck Hat - Standard
Hat - Part No · Black E-Coat
160-13785-GTBGT 60 Curved Vane Rotor
Right Hand - Part No · R/H
- 160-13786-GTB
GT 60 Curved Vane Rotor
Left Hand - Part No · L/H
120-13813TX6R Forged Radial Mount
Right Hand - Part No · R/H · Type III Anodize
- 120-13814
TX6R Forged Radial Mount
Left Hand - Part No · L/H · Type III Anodize
