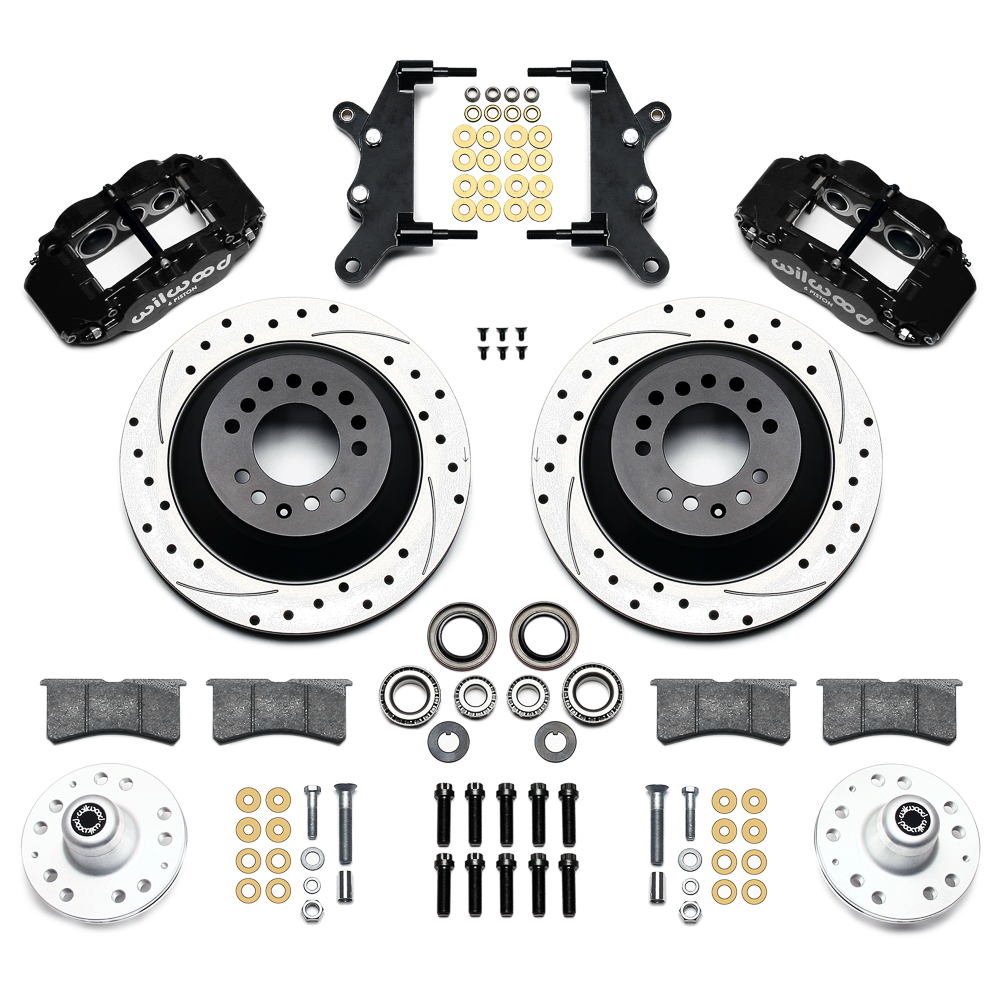

Forged Narrow Superlite 6R Big Brake Front Brake Kit (Hub and 1PC Rotor)
FNSL6R Billet Forged six-piston calipers with 12.88" diameter, 1 piece rotor and hats kits deliver the cost effective combination for braking power and style in this group of kits engineered 1960 to 1968 Ford & Mercury full size vehicles. Built exclusively for 17” and larger wheels, FNSL6 kits enhance tire and suspension upgrades on all types of custom show and high performance dual-purpose street and track machines. A full range of options for caliper finishes and rotor designs are guaranteed to catch the eye of the most discriminating enthusiast while providing optimized brake performance for every individual application.
incl. VAT
Part number: 140-13654-D
This is the number you are ordering.
Versions
Weight: 27,67 kg
Fits
- Edsel Corsair (1959)
- Edsel Ranger (1959)
- Edsel Ranger (1960)
- Edsel Villager (1959)
- Edsel Villager (1960)
- Ford 300 (1963)
- Ford Country Sedan (1957–1959)
- Ford Country Sedan (1960–1964)
- Ford Country Sedan (1965–1968)
- Ford Country Squire (1957–1958)
- Ford Country Squire (1959–1964)
- Ford Country Squire (1965–1968)
- Ford Courier Sedan Delivery (1957–1959)
- Ford Custom (1957–1964)
- Ford Custom (1965–1968)
- Ford Custom 300 (1957–1959)
- Ford Custom 300 (1960)
- Ford Custom 500 (1964)
- Ford Custom 500 (1965–1968)
- Ford Del Rio Wagon (1957–1958)
- Ford Fairlane (1957–1961)
- Ford Galaxie (1959–1964)
- Ford Galaxie (1965–1967)
- Ford Galaxie 500 (1962–1964)
- Ford Galaxie 500 (1965–1968)
- Ford LTD (1965–1968)
- Ford Ranch Wagon (1957–1959)
- Ford Ranch Wagon (1960–1964)
- Ford Ranch Wagon (1965–1968)
- Ford Ranchero (1957–1959)
- Ford Skyliner (1957)
- Ford Skyliner (1958–1959)
- Ford Starliner (1960)
- Ford Sunliner (1957–1959)
- Ford Sunliner (1960)
- Ford Thunderbird (1958–1960)
- Ford Victoria (1957–1959)
- Ford Victoria (1960)
- Mercury Brougham (1967)
- Mercury Colony Park (1961–1964)
- Mercury Colony Park (1965–1968)
- Mercury Commuter (1961–1964)
- Mercury Commuter (1965–1968)
- Mercury Country Cruiser (1963)
- Mercury Marauder (1963–1964)
- Mercury Marauder (1965–1968)
- Mercury Marquis (1967–1968)
- Mercury Meteor (1961)
- Mercury Montclair (1964)
- Mercury Montclair (1965–1968)
- Mercury Monterey (1961–1964)
- Mercury Monterey (1965–1968)
- Mercury Park Lane (1964)
- Mercury Park Lane (1965–1968)
- Mercury Villager (1962–1964)
- Mercury Villager (1965–1967)
- Mercury Voyager (1966–1967)
Specifications
- Caliper
- Forged Narrow Superlite 6R
- Number of pistons
- 6
- Piston type
- Stainless
- Caliper finish
- Black Powder Coat
- Caliper mounting
- Radial
- Piston area
- 2.606 mm²
- Piston 1 bore
- 41,2 mm
- Piston 2 bore
- 28,5 mm
- Piston 3 bore
- 28,5 mm
- Pad area
- 52,9 cm²
- Pad volume
- 62,3 cm³
- Rotor type
- SRP Drilled Rotor
- Rotor style
- SRP Drilled & Slotted
- Rotor material
- Iron
- Rotor finish
- Black Electro Coat
- Rotor diameter
- 327,2 mm
- Rotor thickness
- 27,9 mm
- Number of vanes
- 34 V
- Burnished
- No
- Balanced
- Yes
- Rotor option
- Drilled & Slotted
- Hub type
- Hub - Hat Mount
- Hub material
- Aluminum
- Hub finish
- Bare
- Hub mounting
- Hat
- Hub offset
- +.03
- Minimum wheel diameter
- 431,8 mm
- Minimum wheel requirement
- *This Brake Kit may fit 17-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel.
- Kit mounting
- Radial
- Brake lines
- *Brake Lines Needed
Kit contents
Bolt Kit-Hub
Bolt Kit
230-7032
-
Bleed Screw Assy / 4 pk.
Bleed Screw Kit
220-0627
300-6595Caliper Wear Plate
Wear Plate - Right Hand · R/H
300-6596Caliper Wear Plate
Wear Plate - Left Hand · L/H
230-17553Caliper Bridge Bolt Kit
Bridge Bolt Kit
130-10540Caliper Crossover O-Ring Kit
CrossOver O-Ring Kit
200-8439Caliper Pistons - Cast Stainless
Replacement Piston 3
- 200-8439
Caliper Pistons - Cast Stainless
Replacement Piston 2
200-7520Caliper Pistons - Cast Stainless
Replacement Piston 1
- 130-5972
Caliper Square Ring Kit
O-ring Kit
270-13636Hub - Hat Mount
Hub - Part No · Bare
160-12189-BKSRP Drilled Performance Rotor & Hat
Right Hand - Part No · R/H
- 160-12190-BK
SRP Drilled Performance Rotor & Hat
Left Hand - Part No · L/H
120-11780-BKForged Narrow Superlite 6 Radial Mount
Right Hand - Part No · R/H · Black Powder Coat
- 120-11781-BK
Forged Narrow Superlite 6 Radial Mount
Left Hand - Part No · L/H · Black Powder Coat
