Forged Narrow Superlite 6R Big Brake Front Brake Kit (Hat)
The unsurpassed braking capacity of the Forged Narrow Superlite 6R six-piston caliper serves as the basis of these 12.88” or 14.00” inch big rotor kits for the popular Ford Bronco vehicles. SL6R kits are engineered application specific to these vehicles, providing simplified installation. Each kit is engineered vehicle specific and utilizes the existing hub assembly. Big brake kits offer increased brake capacity and complimentary style with wheel, tire, and suspension upgrades. Optional caliper finishes and rotor designs simplify personalizing the style and braking requirements of any application.
incl. VAT
Part number: 140-13330-R
This is the number you are ordering.
Versions
Weight: 28,58 kg
Fits
Specifications
- Caliper
- Forged Narrow Superlite 6R
- Number of pistons
- 6
- Piston type
- Stainless
- Caliper finish
- Red Powder Coat
- Caliper mounting
- Radial
- Piston area
- 3.135 mm²
- Piston 1 bore
- 44,5 mm
- Piston 2 bore
- 31,8 mm
- Piston 3 bore
- 31,8 mm
- Pad area
- 52,9 cm²
- Pad volume
- 62,3 cm³
- Rotor type
- GT 72 Curved Vane
- Rotor style
- GT Slotted
- Rotor material
- Spec-37 Iron
- Rotor finish
- Black Electro Coat
- Rotor diameter
- 355,6 mm
- Rotor thickness
- 31,8 mm
- Number of vanes
- 72 CV
- Burnished
- No
- Balanced
- Yes
- Rotor option
- Slotted
- Hat type
- Big Brake Hat - Short Offset
- Hat material
- Aluminum
- Hat finish
- Black E-Coat
- Hat offset
- 25,4 mm
- Hub offset
- +.00
- Minimum wheel diameter
- 457,2 mm
- Minimum wheel requirement
- *This Brake Kit may fit 18-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel.
- Kit mounting
- Radial
- Brake lines
- Brake Lines

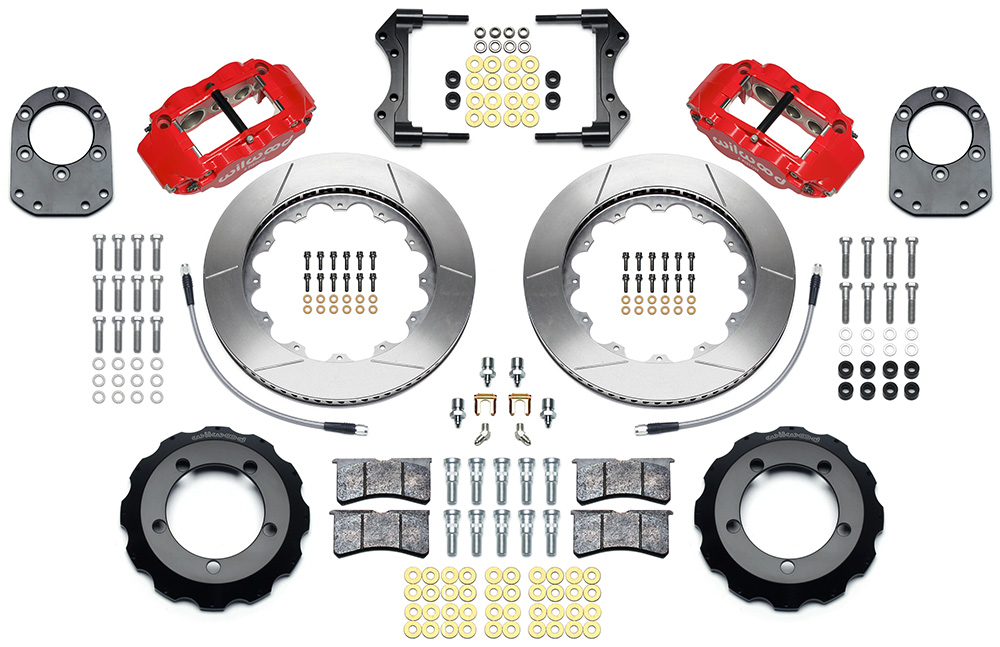

Kit contents
230-8008Bolt Kit-Rotor
Bolt Kit
-
Bleed Screw Assy / 4 pk.
Bleed Screw Kit
220-0627
300-6595Caliper Wear Plate
Wear Plate - Right Hand · R/H
300-6596Caliper Wear Plate
Wear Plate - Left Hand · L/H
130-10540Caliper Crossover O-Ring Kit
CrossOver O-Ring Kit
200-7515Caliper Pistons - Cast Stainless
Replacement Piston 3
- 200-7515
Caliper Pistons - Cast Stainless
Replacement Piston 2
200-7528Caliper Pistons - Cast Stainless
Replacement Piston 1
- 130-17361
Caliper Square Ring Kit
O-ring Kit
170-13314Big Brake Hat - Short Offset
Hat - Part No · Black E-Coat
160-8398-GTBGT 72 Curved Vane Rotor
Right Hand - Part No · R/H
- 160-8399-GTB
GT 72 Curved Vane Rotor
Left Hand - Part No · L/H
120-14550-RDForged Narrow Superlite 6 Radial Mount
Right Hand - Part No · R/H · Red Powder Coat
- 120-14551-RD
Forged Narrow Superlite 6 Radial Mount
Left Hand - Part No · L/H · Red Powder Coat
