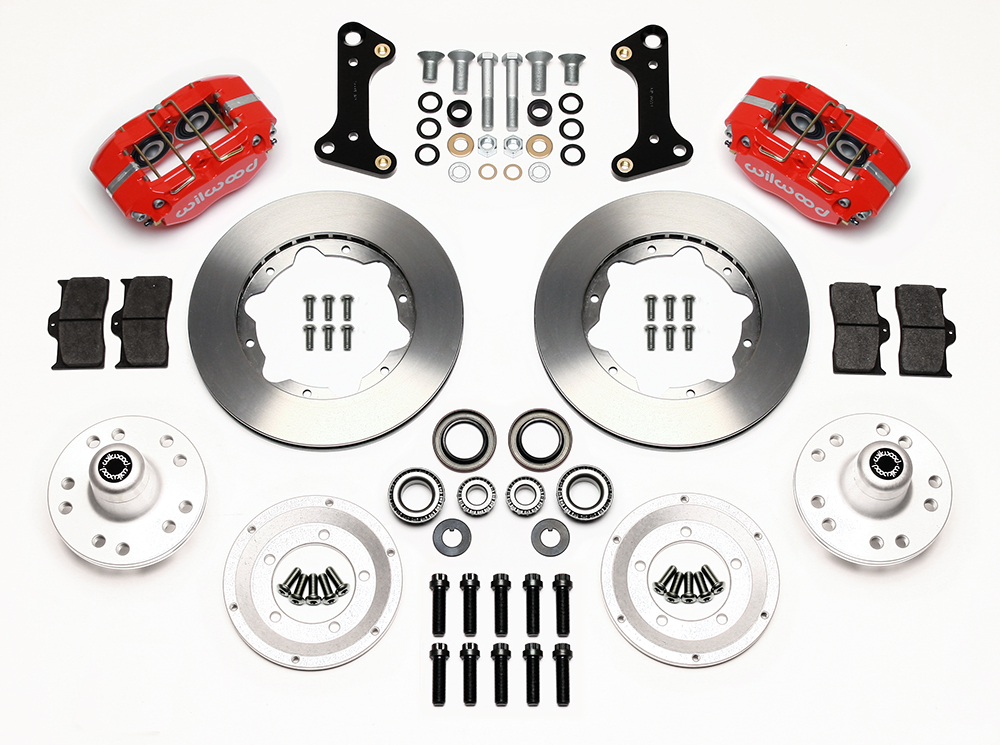

Dynapro Dust-Boot Pro Series Front Brake Kit
Wilwood's new DP-DB Pro-Series Front Hub Kits offer disc brake upgrade solutions for OEM spindles. We have completely redesigned our Pro Series line of brake kits using a larger 11" rotor and new forged aluminum hubs with the express purpose of maintaining the factory wheel position. Based on the venerable Forged Dynapro Dustboot caliper, these kits were developed for applications or locations that require or prefer a dust-sealed piston. Dust-booted aluminum pistons provide added protection against road or track born dirt and debris on low to intermediate temperature range applications that may also operate in harsh environments. Most vehicle applications require no modifications for installation, and provide plenty of clearance inside popular 15" wheels. DP-DB Pro-Series kits can be used with either manual or power boost master cylinders. Kits come complete with calipers, rotors, hub assembly, brackets and hardware. Kit installation requires purchase of additional brake lines shown below.
incl. VAT
Part number: 140-13202-R
This is the number you are ordering.
Versions
Weight: 18,14 kg
Fits
- Buick Apollo (1973–1974)
- Buick Gran Sport (1965–1967)
- Buick GS (1970–1972)
- Buick GS 350 (1968–1969)
- Buick GS 350 (1968)
- Buick GS 350 (1969)
- Buick GS 400 (1968–1969)
- Buick GS 400 (1968)
- Buick GS 400 (1969)
- Buick GS 455 (1970–1972)
- Buick Skylark (1964–1972)
- Buick Skylark (1964–1966)
- Buick Skylark (1967–1970)
- Buick Skylark (1967–1972)
- Buick Special (1964–1969)
- Buick Special (1964–1966)
- Buick Special (1967–1969)
- Buick Sportwagon (1964–1972)
- Buick Sportwagon (1964–1966)
- Buick Sportwagon (1967–1970)
- Buick Sportwagon (1967–1972)
- Chevrolet Camaro (1967–1969)
- Chevrolet Camaro (1968–1969)
- Chevrolet Chevelle (1964–1972)
- Chevrolet Chevelle (1964–1966)
- Chevrolet Chevelle (1967–1972)
- Chevrolet Chevy II (1962–1967)
- Chevrolet Chevy II (1964–1966)
- Chevrolet Chevy II (1967–1968)
- Chevrolet Corvette (1963–1964)
- Chevrolet Corvette (1965–1982)
- Chevrolet El Camino (1964–1972)
- Chevrolet El Camino (1964–1966)
- Chevrolet El Camino (1967–1972)
- Chevrolet Malibu (1964–1966)
- Chevrolet Malibu (1967)
- Chevrolet Monte Carlo (1970–1972)
- Chevrolet Nova (1967–1974)
- Chevrolet Nova (1969–1974)
- Ford F-100 (1965–1979)
- Ford Falcon (1960–1965)
- Ford Mustang (1964–1966)
- GMC Sprint (1971–1972)
- Mercury Comet (1960–1965)
- Oldsmobile 442 (1964–1971)
- Oldsmobile 442 (1964–1966)
- Oldsmobile 442 (1967–1972)
- Oldsmobile 442 (1970–1971)
- Oldsmobile Cutlass (1964–1972)
- Oldsmobile Cutlass (1964–1966)
- Oldsmobile Cutlass (1967–1972)
- Oldsmobile Cutlass (1970–1972)
- Oldsmobile Cutlass Supreme (1967–1972)
- Oldsmobile Cutlass Supreme (1970–1972)
- Oldsmobile F85 (1964–1972)
- Oldsmobile F85 (1964–1966)
- Oldsmobile F85 (1967–1969)
- Oldsmobile F85 (1967–1972)
- Oldsmobile F85 (1970–1972)
- Oldsmobile Omega (1973–1974)
and 23 other vehicles
Specifications
- Caliper
- Dynapro Dust-Boot
- Number of pistons
- 4
- Piston type
- Aluminum
- Caliper finish
- Red Powder Coat
- Caliper mounting
- Lug
- Piston area
- 3.097 mm²
- Piston 1 bore
- 44,5 mm
- Piston 2 bore
- 44,5 mm
- Pad area
- 41 cm²
- Pad volume
- 34,4 cm³
- Rotor type
- Ultralite HP 30
- Rotor style
- Plain Face
- Rotor material
- Iron
- Rotor finish
- Plain
- Rotor diameter
- 279,4 mm
- Rotor thickness
- 20,6 mm
- Number of vanes
- 30 V
- Burnished
- No
- Balanced
- No
- Rotor option
- Undrilled
- Hub type
- Hub - Vented Rotor Offset
- Hub material
- Aluminum
- Hub finish
- Bare
- Hub mounting
- Adapter
- Hub offset
- +.19
- Minimum wheel diameter
- 355,6 mm
- Minimum wheel requirement

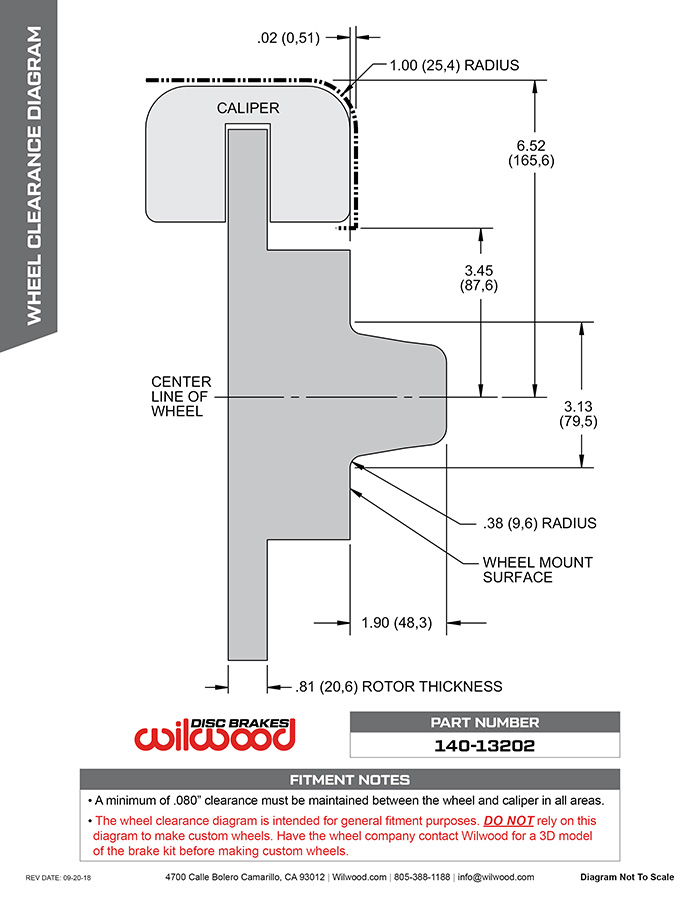

- *This Brake Kit may fit 14-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel.
- Kit mounting
- Lug
- Brake lines
- *Brake Lines Needed
Kit contents
-
Bleed Screw Assy / 4 pk.
Bleed Screw Kit
220-0627
300-9636Pad Retaining Clip
Pad Retainer
300-5875Caliper Wear Plate
Wear Plate - Right Hand · R/H
- 300-5875
Caliper Wear Plate
Wear Plate - Left Hand · L/H
130-10540Caliper Crossover O-Ring Kit
CrossOver O-Ring Kit
200-11484Caliper Pistons - Aluminum Billet
Replacement Piston 2
- 200-11484
Caliper Pistons - Aluminum Billet
Replacement Piston 1
- 210-7210
Caliper Piston Dust Boot
Replacement Dustboot
130-2655Caliper Square Ring Kit
O-ring Kit
270-7274Hub - Vented Rotor Offset
Hub - Part No · Bare
160-5840Ultralite HP 30 Vane Rotor
Right Hand - Part No · R/H
- 160-5840
Ultralite HP 30 Vane Rotor
Left Hand - Part No · L/H
120-11482-RDDynapro Dust-Boot
Right Hand - Part No · R/H · Red Powder Coat
- 120-11482-RD
Dynapro Dust-Boot
Left Hand - Part No · L/H · Red Powder Coat
