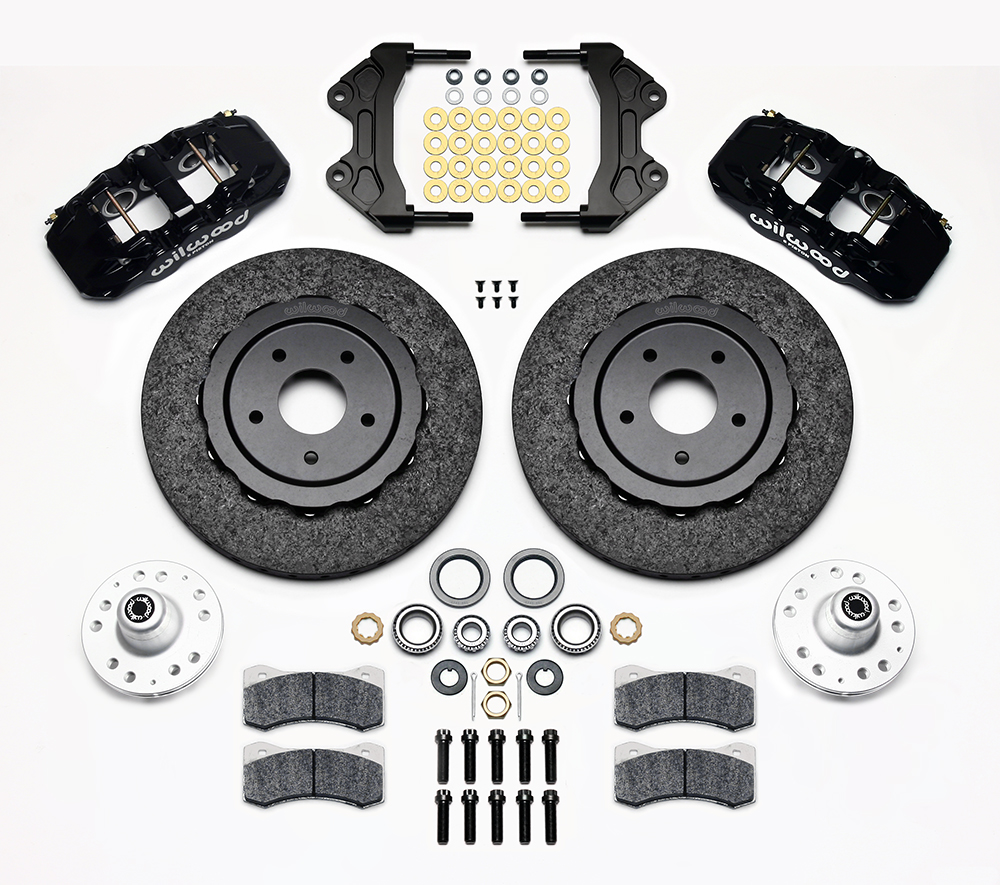

AERO6 WCCB Carbon-Ceramic Big Brake Front Brake Kit
AERO6 WCCB Carbon-Ceramic Rotor Front Brake Kits offer an extreme performance upgrade featuring WCCB Carbon-Ceramic Dynamic Mount Rotors with Wilwood’s exclusive Bobbin Mounting System. AERO6 WCCB kits are engineered to maximize braking capacity inside custom wheels. These brake kits offer a simple bolt-on installation with minor modifications required to the front spindle only and are fully compatible with ABS and OE master cylinder output. AERO6 calipers are a competition proven and offer fully detail machined forged caliper body demonstrates superior strength and resistance to deflection and separation under high load. Black or Red powder coat calipers are available as options. 14.00” WCCB rotors are made from a proprietary blend ceramic matrix composite material commonly known as Carbon-Ceramic and dynamically using Wilwood’s proprietary integrated anti-rattle Bobbin Mounting System. WCCB rotors offer higher thermal conductivity and heat capacity in excess of conventional iron or titanium rotors of similar or even greater weight and have been developed to withstand extreme temperatures with the highest possible degree of resistance against distortion, warping, cracking and wear.
incl. VAT
Part number: 140-13145-CSIC
This is the number you are ordering.
Weight: 23,13 kg
Fits
Specifications
- Caliper
- AERO6
- Number of pistons
- 6
- Piston type
- Stainless
- Caliper finish
- Black Powder Coat
- Caliper mounting
- Radial
- Piston area
- 2.606 mm²
- Piston 1 bore
- 41,2 mm
- Piston 2 bore
- 28,5 mm
- Piston 3 bore
- 28,5 mm
- Pad area
- 71,6 cm²
- Pad volume
- 85,2 cm³
- Rotor type
- WCCD Carbon-Ceramic
- Rotor style
- Plain Face
- Rotor material
- C/SiC
- Rotor finish
- Plain
- Rotor diameter
- 355,6 mm
- Rotor thickness
- 31,8 mm
- Number of vanes
- 24 V
- Burnished
- No
- Balanced
- No
- Rotor option
- Plain Face
- Hat type
- Big Brake Dynamic Bobbin Mount Hat - Flared Bell
- Hat material
- Aluminum
- Hat finish
- Type III Anodize
- Hat offset
- 44,2 mm
- Hub type
- Hub - Hat Mount
- Hub material
- Aluminum
- Hub finish
- Bare
- Hub mounting
- Hat
- Hub offset
- +.68
- Minimum wheel diameter
- 457,2 mm
- Minimum wheel requirement
- *This Brake Kit may fit 18-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel.
- Kit mounting
- Radial
- Brake lines
- *Brake Lines Needed
Kit contents
-
Bleed Screw Assy / 4 pk.
Bleed Screw Kit
220-0627
180-9874Pad retainer and pin kit
Pad Retainer
300-5876Caliper Wear Plate
Wear Plate - Right Hand · R/H
- 300-5876
Caliper Wear Plate
Wear Plate - Left Hand · L/H
200-7513Caliper Pistons - Cast Stainless
Replacement Piston 3
- 200-7513
Caliper Pistons - Cast Stainless
Replacement Piston 2
200-7519Caliper Pistons - Cast Stainless
Replacement Piston 1
- 130-5972
Caliper Square Ring Kit
O-ring Kit
270-6989Hub - Hat Mount
Hub - Part No · Bare
170-13136Big Brake Dynamic Bobbin Mount Hat - Flared Bell
Hat - Part No · Type III Anodize
160-12442C/SiC Rotors
Right Hand - Part No · R/H
- 160-12442
C/SiC Rotors
Left Hand - Part No · L/H
120-13289-BKAero6 Radial Mount
Right Hand - Part No · R/H · Black Powder Coat
- 120-13290-BK
Aero6 Radial Mount
Left Hand - Part No · L/H · Black Powder Coat
