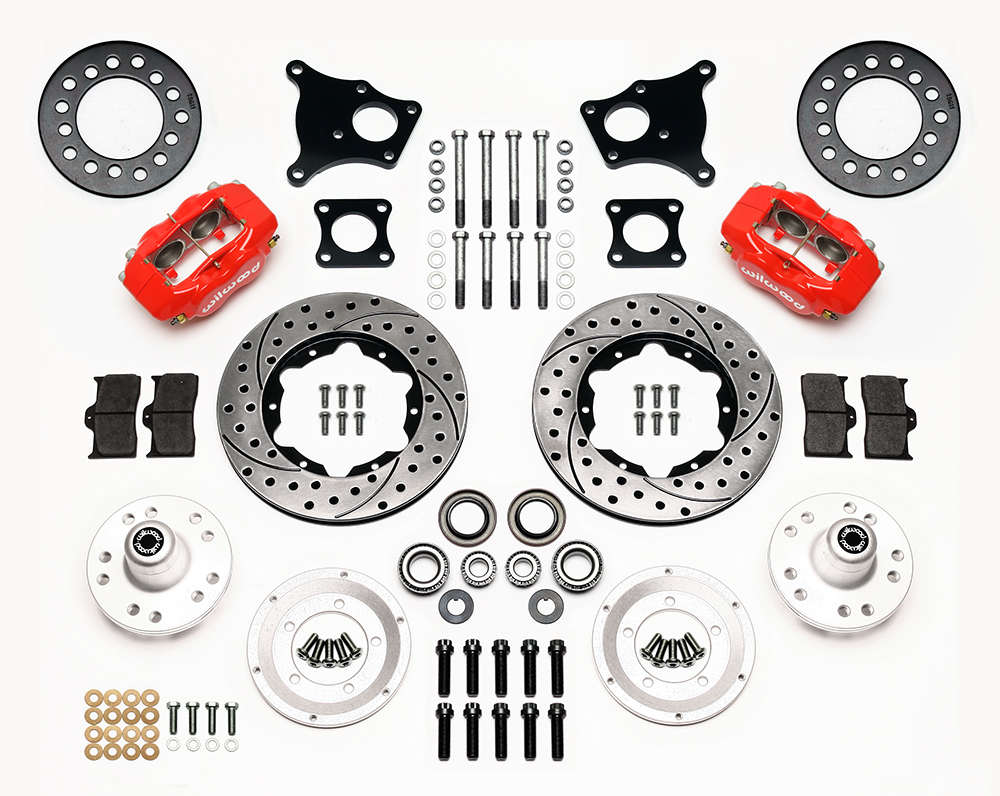

Forged Dynalite Pro Series Front Brake Kit
FDL Pro-Series Front Hub Kits offer complete disc brake upgrade solutions for OEM disc brake spindle applications for the popular AMC Passenger vehicles originally equipped with Kelsey-Hayes calipers. Based on the venerable forged billet Dynalite caliper and 11.00” x .81 rotors, these versatile kits are easily optioned to suit the braking requirements and style preferences for a daily driver, serious competition, or the most discriminating show enthusiast. This kit requires no modifications for installation, and provides plenty of clearance inside most popular 15” wheels. This kit will also work with aftermarket 14” disc brake steel wheels available from other vendors. FDL Pro-Series kits can be used with either manual or power boost master cylinders.
incl. VAT
Part number: 140-11940-DR
This is the number you are ordering.
Versions
Weight: 19,05 kg
Fits
- American Motors Ambassador (1969–1973)
- American Motors Ambassador (1974)
- American Motors AMX (1969–1970)
- American Motors Gremlin (1971–1973)
- American Motors Gremlin (1974–1976)
- American Motors Hornet (1970–1973)
- American Motors Hornet (1974–1976)
- American Motors Javelin (1969–1973)
- American Motors Javelin (1971–1973)
- American Motors Javelin (1974)
- American Motors Javelin AMX (1974)
- American Motors Matador (1971–1973)
- American Motors Matador (1974)
- American Motors Rambler (1969)
- American Motors Rebel (1969–1970)
- American Motors Rogue (1969)
Specifications
- Caliper
- Forged Dynalite Internal
- Number of pistons
- 4
- Piston type
- Stainless
- Caliper finish
- Red Powder Coat
- Caliper mounting
- Lug
- Piston area
- 3.097 mm²
- Piston 1 bore
- 44,5 mm
- Piston 2 bore
- 44,5 mm
- Pad area
- 41 cm²
- Pad volume
- 34,4 cm³
- Rotor type
- SRP Drilled Rotor
- Rotor style
- SRP Drilled & Slotted
- Rotor material
- Iron
- Rotor finish
- Black Electro Coat
- Rotor diameter
- 279,4 mm
- Rotor thickness
- 20,6 mm
- Number of vanes
- 30 V
- Burnished
- No
- Balanced
- No
- Rotor option
- Drilled & Slotted
- Hub type
- Hub - Vented Rotor Offset
- Hub material
- Aluminum
- Hub finish
- Bare
- Hub mounting
- Adapter
- Minimum wheel diameter
- 355,6 mm
- Minimum wheel requirement
- *This Brake Kit may fit 14-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel.
- Kit mounting
- Lug
- Brake lines
- *Brake Lines Needed
Kit contents
-
Bleed Screw Assy / 4 pk.
Bleed Screw Kit
220-0627
180-0055Cotter Pin Kit for.810 rotor width Dynalite series of calipers & .35 Dynalite Singles.
Pad Retainer
300-5875Caliper Wear Plate
Wear Plate - Right Hand · R/H
- 300-5875
Caliper Wear Plate
Wear Plate - Left Hand · L/H
130-10540Caliper Crossover O-Ring Kit
CrossOver O-Ring Kit
200-7528Caliper Pistons - Cast Stainless
Replacement Piston 2
- 200-7528
Caliper Pistons - Cast Stainless
Replacement Piston 1
130-2655Caliper Square Ring Kit
O-ring Kit
270-11942Hub - Vented Rotor Offset
Hub - Part No · Bare
160-7099-BKSRP Drilled Performance Rotor
Right Hand - Part No · R/H
- 160-7100-BK
SRP Drilled Performance Rotor
Left Hand - Part No · L/H
120-13844-RDForged Dynalite Internal
Right Hand - Part No · R/H · Red Powder Coat
- 120-13844-RD
Forged Dynalite Internal
Left Hand - Part No · L/H · Red Powder Coat
