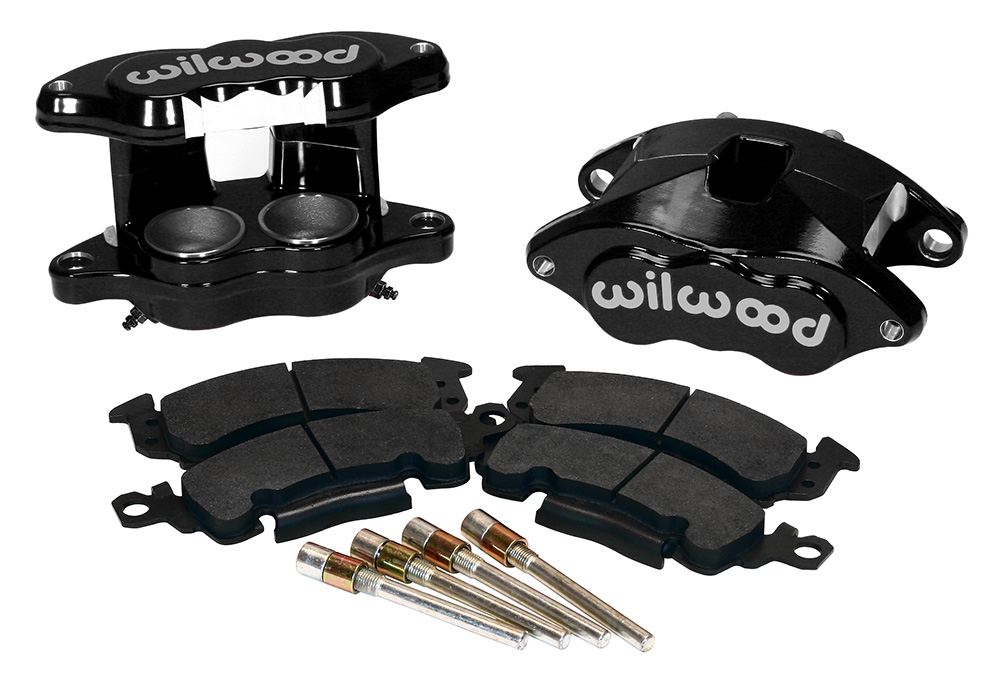

D52 Front Caliper Kit
Wilwood's D52 Front Caliper Kit is a direct bolt-on 2 piston replacement for the factory original single calipers on many 1968-96 GM Passenger Vehicles and Trucks. Forged billet aluminum bodies, stainless steel pistons, and competition style high-temperature seals put an end to the rust, bore pitting, and seal failures that plague the OE caliper design. D52 calipers provide low-maintenance performance and a huge weight savings with high temperature reliability for the street and track. D52 calipers mount in the stock location over stock rotors, use the original style OE D52 brake pads and an OE 7/16-20 banjo bolt brake line mounting. Calipers can be used with most wheels that clear the OE calipers. The front calipers with 2.00” piston provide 6.28 square inches of piston area per caliper, in order to maintain the original front to rear brake bias and use of the OE master cylinder. Kits contain Wilwood’s hardened slide pins and BP-10 high friction pads. Matching rear calipers are also available for custom installations. Vehicles 1978 & Up (with M10-1.5 banjo bolts) will require new brake lines available below.
incl. VAT
Part number: 140-11290-BK
This is the number you are ordering.
Weight: 7,71 kg
Fits
- Buick Centurion (1971–1973)
- Buick Electra (1970)
- Buick Electra (1971–1976)
- Buick Estate Wagon (1971–1976)
- Buick LeSabre (1970)
- Buick LeSabre (1971–1976)
- Buick Riviera (1970)
- Buick Riviera (1971–1976)
- Buick Wildcat (1970)
- Cadillac Calais (1968)
- Cadillac Calais (1969–1976)
- Cadillac DeVille (1968)
- Cadillac DeVille (1969–1976)
- Cadillac Eldorado (1969–1978)
- Cadillac Fleetwood (1968)
- Cadillac Fleetwood (1969–1976)
- Cadillac Fleetwood (1977–1984)
- Cadillac Fleetwood (1986–1989)
- Cadillac Fleetwood (1990–1996)
- Cadillac Fleetwood (1994–1996)
- Cadillac Series 60 (1968)
- Cadillac Series 60 (1969–1976)
- Cadillac Series 62 (1968)
- Cadillac Series 62 (1969–1976)
- Cadillac Series 75 (1968)
- Cadillac Series 75 (1969–1976)
- Chevrolet Bel Air (1968)
- Chevrolet Bel Air (1969–1970)
- Chevrolet Bel Air (1971–1975)
- Chevrolet Biscayne (1968)
- Chevrolet Biscayne (1969–1970)
- Chevrolet Biscayne (1971–1972)
- Chevrolet Blazer (1971–1991)
- Chevrolet Blazer (1971–1972)
- Chevrolet Blazer (1973–1974)
- Chevrolet Brookwood (1970)
- Chevrolet Brookwood (1971–1972)
- Chevrolet C10 (1975–1980)
- Chevrolet C10 (1981–1986)
- Chevrolet C10 Pickup (1971–1974)
- Chevrolet C10 Suburban (1971–1980)
- Chevrolet C10 Suburban (1981–1986)
- Chevrolet C20 Pickup (1971–1978)
- Chevrolet C20 Pickup (1979–1986)
- Chevrolet C20 Suburban (1971–1978)
- Chevrolet C20 Suburban (1979–1986)
- Chevrolet C30 Pickup (1971–1972)
- Chevrolet C30 Pickup (1973–1978)
- Chevrolet Caprice (1968)
- Chevrolet Caprice (1969–1970)
- Chevrolet Caprice (1971–1976)
- Chevrolet Estate (1970)
- Chevrolet G10 (1975–1995)
- Chevrolet G10 (1983–1987)
- Chevrolet G10 (1983)
- Chevrolet G10 Van (1973–1974)
- Chevrolet G20 (1985–1995)
- Chevrolet G20 (1995)
- Chevrolet G20 Van (1973–1974)
- Chevrolet G30 (1975–1978)
and 105 other vehicles
Specifications
- Caliper
- D52
- Number of pistons
- 2
- Piston type
- Stainless
- Caliper finish
- Black Powder Coat
- Caliper mounting
- Floating
- Piston area
- 4.052 mm²
- Piston 1 bore
- 50,8 mm
- Piston 2 bore
- 50,8 mm
- Pad area
- 64,5 cm²
- Pad volume
- 63,9 cm³
- Minimum wheel requirement
- *This Brake Kit may fit -inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel.
- Kit mounting
- Floating
- Brake lines
- *Brake Lines Needed
Kit contents
-
Bleed Screw Assy / 4 pk.
Bleed Screw Kit
220-0627
200-10932Caliper Pistons - Cast Stainless
Replacement Piston 1
130-11509Caliper Square Ring Kit
O-ring Kit

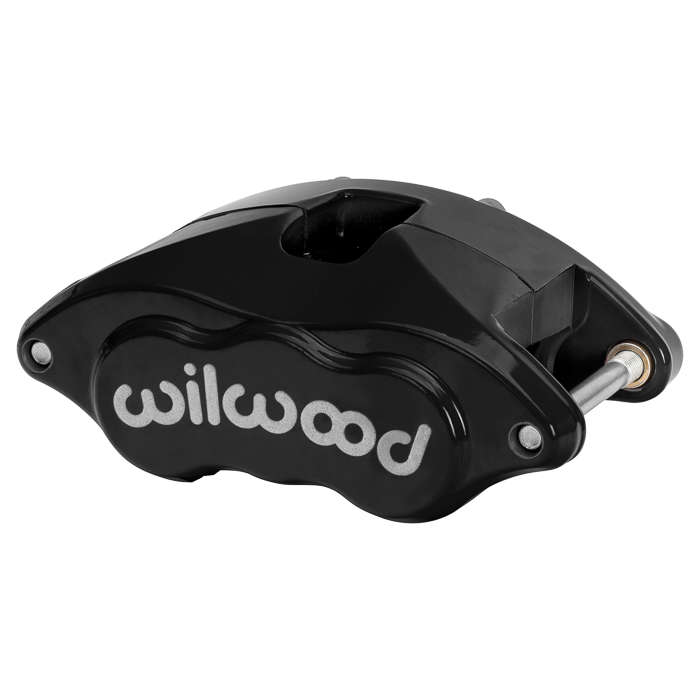

120-10936-BKD52 Dual Piston Floater
Right Hand - Part No · R/H · Black Powder Coat
- 120-10936-BK
D52 Dual Piston Floater
Left Hand - Part No · L/H · Black Powder Coat
