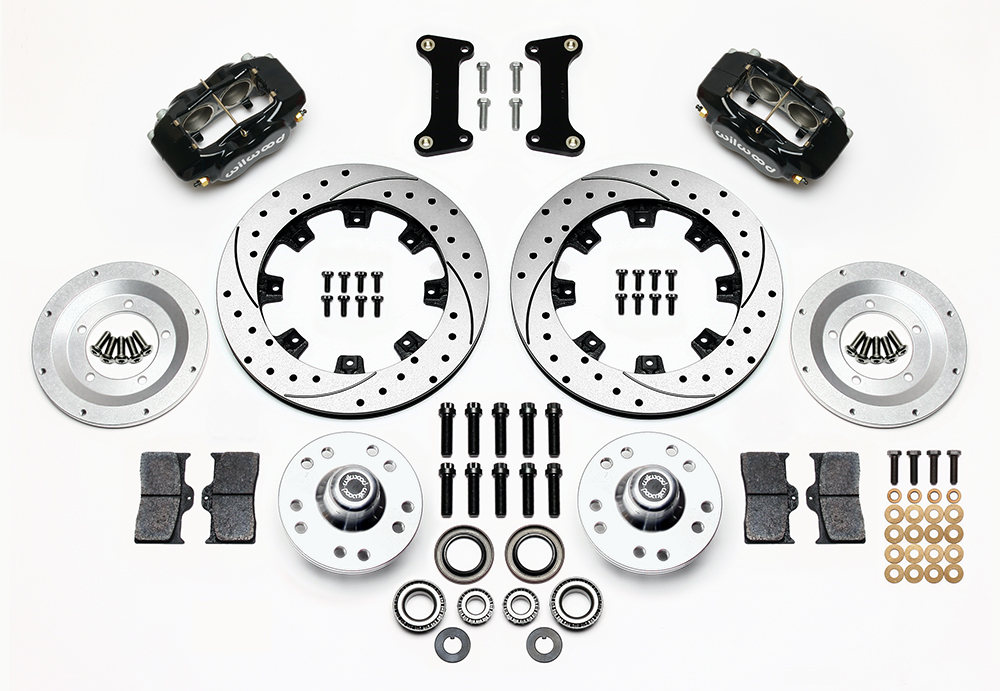

Forged Dynalite Big Brake Front Brake Kit (Hub)
FDL Big Brake Front Hub Kits provide the added advantage of larger diameter brake rotors for traditional non-ABS spindles on American muscle cars and vintage rods. Forged billet Dynalite calipers, 12.19” diameter rotors, and high performance Wilwood brake pads generate big brake stopping power to compliment wheel, tire, and suspension upgrades on all types of custom show and performance street / strip machines. A full range of options for caliper finish and rotor design provide custom builders with the ability to personalize the style and performance requirements of the mildest to the wildest machines.
incl. VAT
Part number: 140-11275-D
This is the number you are ordering.
Versions
Weight: 19,96 kg
Fits
Specifications
- Caliper
- Forged Dynalite Internal
- Number of pistons
- 4
- Piston type
- Stainless
- Caliper finish
- Black Powder Coat
- Caliper mounting
- Lug
- Piston area
- 3.097 mm²
- Piston 1 bore
- 44,5 mm
- Piston 2 bore
- 44,5 mm
- Pad area
- 41 cm²
- Pad volume
- 34,4 cm³
- Rotor type
- SRP Drilled Rotor
- Rotor style
- SRP Drilled & Slotted
- Rotor material
- Iron
- Rotor finish
- Black Electro Coat
- Rotor diameter
- 309,6 mm
- Rotor thickness
- 20,6 mm
- Number of vanes
- 32 V
- Burnished
- No
- Balanced
- No
- Rotor option
- Drilled & Slotted
- Hub type
- Hub - Vented Rotor Offset
- Hub material
- Aluminum
- Hub finish
- Bare
- Hub mounting
- Adapter
- Hub offset
- .00
- Minimum wheel diameter
- 381 mm
- Minimum wheel requirement
- *This Brake Kit may fit 15-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel.
- Kit mounting
- Lug
- Brake lines
- *Brake Lines Needed
Kit contents
-
Bleed Screw Assy / 4 pk.
Bleed Screw Kit
220-0627
180-0055Cotter Pin Kit for.810 rotor width Dynalite series of calipers & .35 Dynalite Singles.
Pad Retainer
300-5875Caliper Wear Plate
Wear Plate - Right Hand · R/H
- 300-5875
Caliper Wear Plate
Wear Plate - Left Hand · L/H
130-10540Caliper Crossover O-Ring Kit
CrossOver O-Ring Kit
200-7528Caliper Pistons - Cast Stainless
Replacement Piston 2
- 200-7528
Caliper Pistons - Cast Stainless
Replacement Piston 1
130-2655Caliper Square Ring Kit
O-ring Kit
270-11043Hub - Vented Rotor Offset
Hub - Part No · Bare
160-7103-BKSRP Drilled Performance Rotor
Right Hand - Part No · R/H
- 160-7104-BK
SRP Drilled Performance Rotor
Left Hand - Part No · L/H
120-13844-BKForged Dynalite Internal
Right Hand - Part No · R/H · Black Powder Coat
- 120-13844-BK
Forged Dynalite Internal
Left Hand - Part No · L/H · Black Powder Coat
