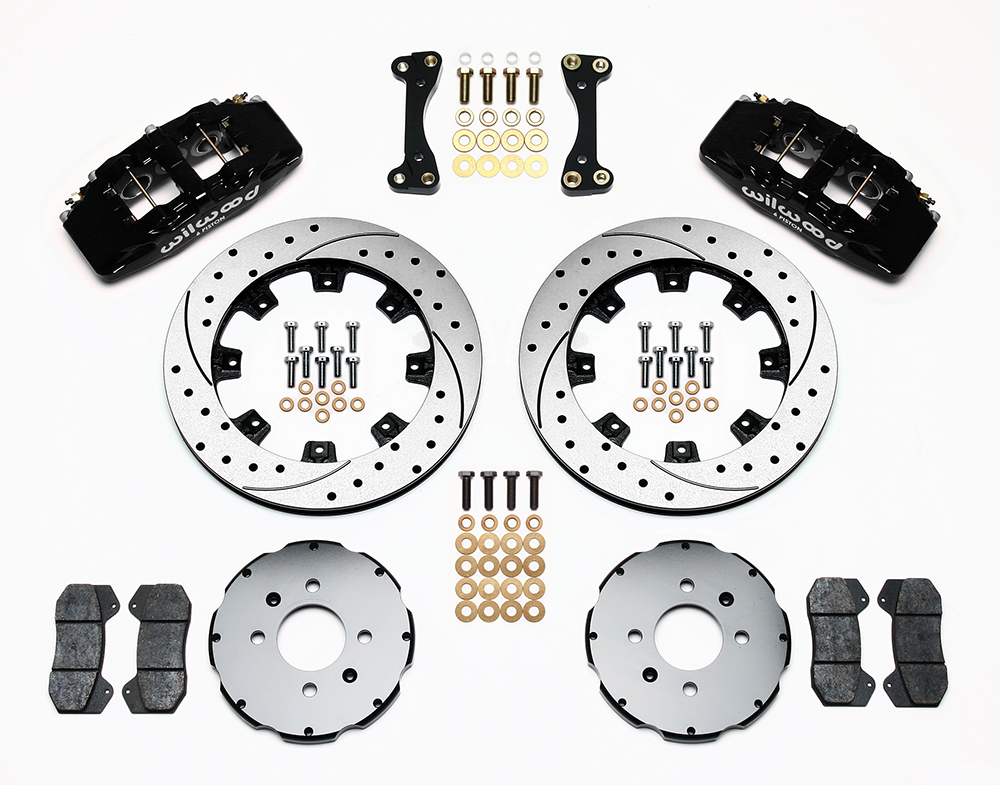

Forged Dynapro 6 Big Brake Front Brake Kit (Hat)
The enhanced brake capacity and pad performance of the DynaPro 6 forged billet six-piston caliper is combined with 12.19” diameter rotors for this group of front wheel drive sport compact kits. These kits are the perfect compliment to wheel, tire, and suspension upgrades on daily drivers, competition vehicles, and custom styled show machines. Each kit is engineered vehicle specific to maintain full compatibility with the OE master cylinder output and factory ABS functions. Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance for every individual application.
incl. VAT
Part number: 140-10736-D
This is the number you are ordering.
Versions
Weight: 17,69 kg
Fits
- Honda Civic (1988)
- Honda Civic (1988–1991)
- Honda Civic (1989–1991)
- Honda Civic (1992–1993)
- Honda Civic (1992–1995)
- Honda Civic (1993–1995)
- Honda Civic (1994–1995)
- Honda Civic (1994)
- Honda Civic (1995)
- Honda Civic (1996–1998)
- Honda Civic (1996–2000)
- Honda Civic (1996)
- Honda Civic (1997)
- Honda Civic (1998–1999)
- Honda Civic (1999–2000)
- Honda Civic del Sol (1993–1997)
- Honda Civic del Sol (1993)
- Honda Civic del Sol (1995–1997)
- Honda CRX (1988–1991)
- Honda CRX (1988–1989)
- Honda CRX (1990–1991)
Specifications
- Caliper
- Dynapro 6
- Number of pistons
- 6
- Piston type
- Stainless
- Caliper finish
- Black Powder Coat
- Caliper mounting
- Lug
- Piston area
- 1.987 mm²
- Piston 1 bore
- 35,1 mm
- Piston 2 bore
- 25,4 mm
- Piston 3 bore
- 25,4 mm
- Pad area
- 47,1 cm²
- Pad volume
- 39,3 cm³
- Rotor type
- SRP Drilled Rotor
- Rotor style
- SRP Drilled & Slotted
- Rotor material
- Iron
- Rotor finish
- Black Electro Coat
- Rotor diameter
- 309,6 mm
- Rotor thickness
- 20,6 mm
- Number of vanes
- 32 V
- Burnished
- No
- Balanced
- No
- Rotor option
- Drilled & Slotted
- Hat type
- Big Brake Hat - Short Offset
- Hat material
- Aluminum
- Hat finish
- Black E-Coat
- Hat offset
- 11,4 mm
- Minimum wheel diameter
- 381 mm
- Minimum wheel requirement
- *This Brake Kit may fit 15-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel.
- Kit mounting
- Lug
- Brake lines
- *Brake Lines Needed
Kit contents
230-8390Bolt Kit-Rotor
Bolt Kit
-
Bleed Screw Assy / 4 pk.
Bleed Screw Kit
220-0627
300-17719Pad retainer and clip kit for DP6 series of calipers.
Pad Retainer
300-9707Caliper Wear Plate
Wear Plate - Right Hand · R/H
- 300-9707
Caliper Wear Plate
Wear Plate - Left Hand · L/H
130-10540Caliper Crossover O-Ring Kit
CrossOver O-Ring Kit
200-12953Caliper Pistons - Cast Stainless
Replacement Piston 3
- 200-12953
Caliper Pistons - Cast Stainless
Replacement Piston 2
200-7518Caliper Pistons - Cast Stainless
Replacement Piston 1
130-10169Caliper Square Ring Kit
O-ring Kit
170-6288Big Brake Hat - Short Offset
Hat - Part No · Black E-Coat
160-7103-BKSRP Drilled Performance Rotor
Right Hand - Part No · R/H
- 160-7104-BK
SRP Drilled Performance Rotor
Left Hand - Part No · L/H
120-13438-BKForged Dynapro 6A Lug Mount
Right Hand - Part No · R/H · Black Powder Coat
- 120-13439-BK
Forged Dynapro 6A Lug Mount
Left Hand - Part No · L/H · Black Powder Coat
