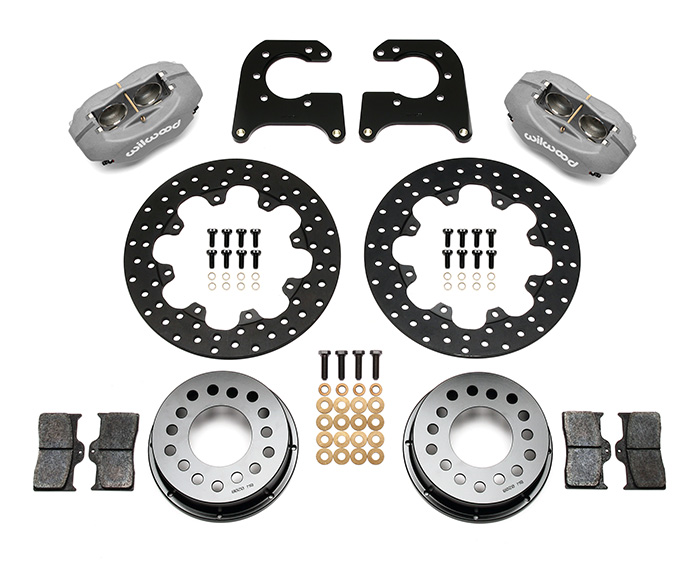

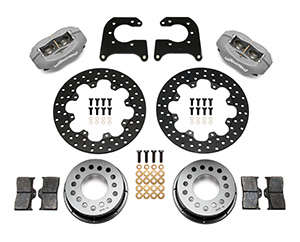

Forged Dynalite Rear Drag Brake Kit
FDL Rear Drag kits are true bolt-on kits available for all popular muscle car rear axles and aftermarket rears built with custom axle ends. Kits in this group are purpose built for sportsman category door cars and others with full functional four-wheel disc brakes. Based on the specific style of housing end and axle offset, mounting kits securely install the four-piston forged Dynalite caliper over 3/8” plate steel rotors that are mounted to the axle with an aluminum hat. Standard kits include solid face rotors, with optional drilled rotor kits available to further reduce driveline weight in classes where every weight advantage is necessary.
incl. VAT
Part number: 140-0264-BD
This is the number you are ordering.
Weight: 12,7 kg
Fits
Rear axle: Olds/Pontiac Flange
Specifications
- Caliper
- Forged Dynalite Internal
- Number of pistons
- 4
- Piston type
- Stainless
- Caliper finish
- Type III Anodize
- Caliper mounting
- Lug
- Piston area
- 3.097 mm²
- Piston 1 bore
- 44,5 mm
- Piston 2 bore
- 44,5 mm
- Pad area
- 41 cm²
- Pad volume
- 34,4 cm³
- Rotor type
- Drilled Steel Rotor
- Rotor style
- Drilled
- Rotor material
- Steel
- Rotor finish
- Black Oxide
- Rotor diameter
- 290,6 mm
- Rotor thickness
- 8,9 mm
- Number of vanes
- Solid
- Burnished
- No
- Balanced
- No
- Hat type
- Drag Hat - Standard
- Hat material
- Aluminum
- Hat finish
- Black E-Coat
- Hat offset
- 49,8 mm
- Minimum wheel diameter
- 381 mm
- Minimum wheel requirement

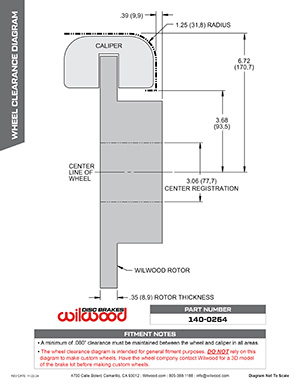

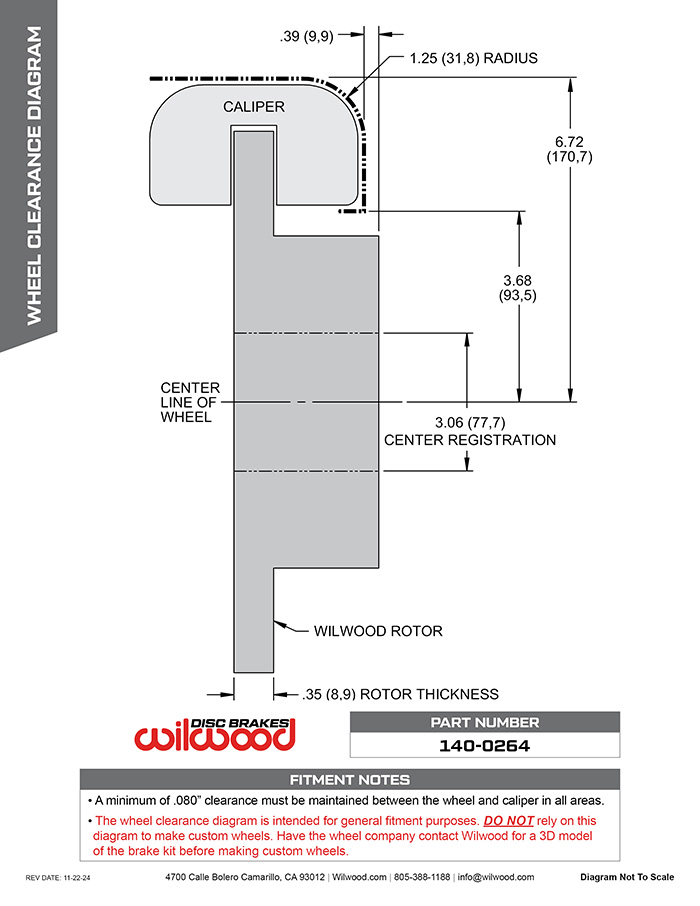

- *This Brake Kit may fit 15-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel.
- Kit mounting
- Lug
- Brake lines
- *Brake Lines Needed
