Wilwood · Bremssättel

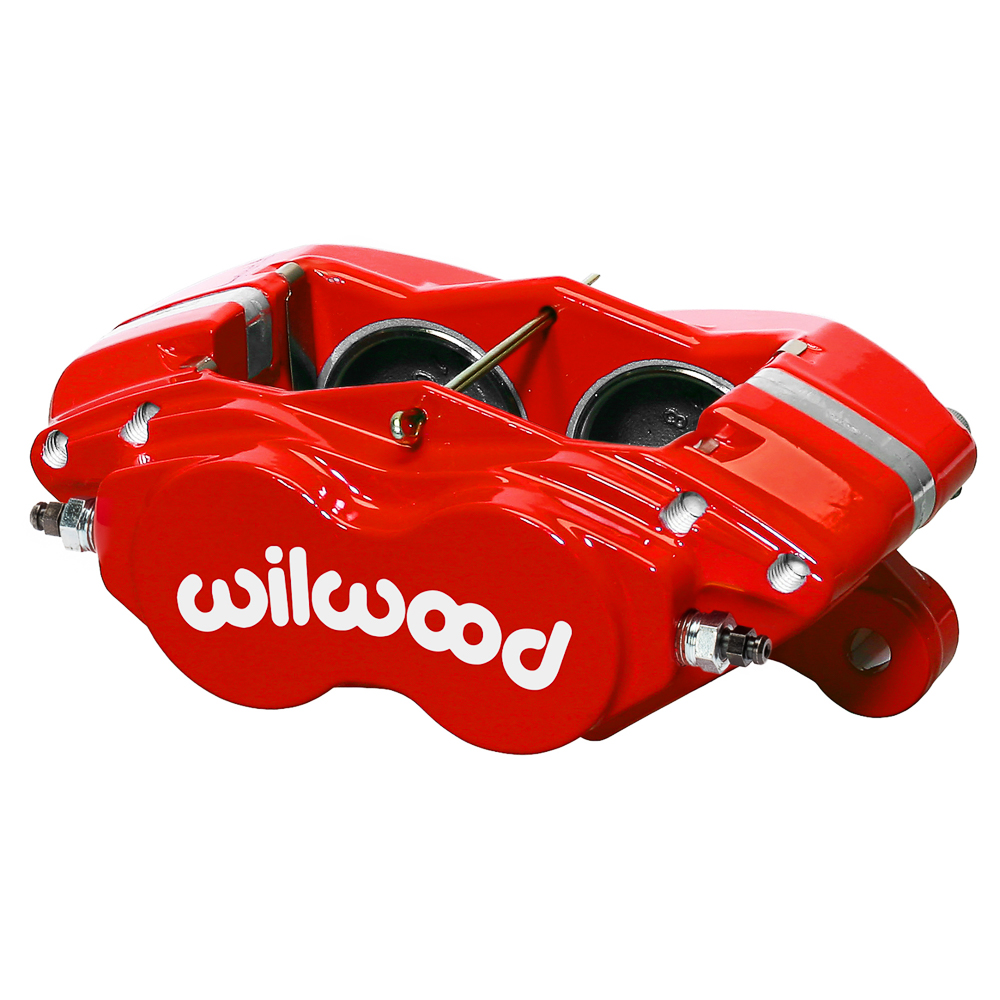

Forged Dynalite-M
The Forged Billet Dynalite-M is further enhancement of the venerable Forged Dynalite series calipers. Specifically designed to enhance outboard clearance and is the basis for Wilwood’s new Classic Style brake kits. The latest applied developments and innovations in caliper design and manufacturing processes have resulted in substantial improvements in strength and performance over all comparable models.
inkl. MwSt.
Teilenummer: 120-17771-RD
Diese Nummer bestellen Sie.
Gewicht: 1,54 kg
Technische Daten
- Modell
- Forged Dynalite-M
- Oberfläche
- Red Powder Coat
- Befestigung
- Lug Mount
- Kolbenzahl
- 4
- Kolbendurchmesser
- 44,5 mm
- Kolbenfläche
- 3.096,8 mm²
- Befestigungsmaß
- 133,3 mm
- Scheibenstärke
- 20,6 mm
- Max. Scheibendurchmesser
- 309,6 mm
- Belagvolumen
- 34,4 cm³
- Belagform
- 7112
- Kolbenmaterial
- Stainless
Revision & Ersatzteile
Laut Wilwood gehören diese Teile zu diesem Bremssattel. Übernommen vom gleichen Bremssattel in einer anderen Farbe.
Dichtsatz (Revisionssatz) 130-2655
SQ-Ring Kit - 1.75" — Square Seal - 4 pk.
€ 14,22€ 15,35inkl. MwSt.
O-Ringe Crossover 130-10540
O-Ring Kit - .19 DL/DP Crossover — Round Seal - 6 pk.
€ 15,22€ 16,44inkl. MwSt.
Kolben Ø 44,5 mm 200-7528
Piston - 1.75" x .88" SS
€ 18,98€ 20,51inkl. MwSt.
Verschleißplatte 300-5875
Pad Wear Plate - DL/DLS
€ 7,73€ 8,35inkl. MwSt.
Belaghaltestifte 180-0056
Cotter Pins - 1/8 x 3.5" - DL — 10 Pack
€ 19,05€ 20,57inkl. MwSt.
Entlüftungsschrauben 220-0627
Bleed Screw Assy / 4 pk.
€ 19,78€ 21,37inkl. MwSt.
Passende Halter
Ausgewählt nach dem gleichen Befestigungsmaß (133,3 mm, Lug Mount). Bitte die Maße prüfen: Bolzen- oder Schraubendurchmesser und die Bohrungen im Bremssattel können abweichen.
Bracket Kit, Rear - Drag · Scheibe 290,6 mm · L/H & R/H 249-0250L/R
Brackets (2) - Rear Drag - Big Ford
€ 136,33€ 147,23inkl. MwSt.
-
Bracket Kit, Rear - Drag · Scheibe 290,6 mm · L/H & R/H 249-0251L/R
Brackets (2) - Rear Drag - Small Ford
€ 136,33€ 147,23inkl. MwSt.
Bracket Kit, Rear - Drag · Scheibe 290,6 mm · L/H & R/H 249-0252L/R
Brackets (2) - Rear Drag - 12 Bolt Chevy
€ 136,33€ 147,23inkl. MwSt.
Bracket Kit, Rear - Drag · Scheibe 290,6 mm · L/H & R/H 249-0254/55
Brackets (2) - Rear Drag - Olds / Pont
€ 136,33€ 147,23inkl. MwSt.
Bracket Kit, Front - Lug Mount · Scheibe 273,1 mm · L/H & R/H 249-0973L/R
Brackets (2) - Front Drag - HD 67-69 Camaro, 64-72 Nova
€ 136,33€ 147,23inkl. MwSt.
Bracket Kit, Rear - Drag · Scheibe 290,6 mm · L/H & R/H 249-0992L/R
Brackets (2) - Front Drag - MW / Lamb Kit
€ 136,33€ 147,23inkl. MwSt.
34 weitere Halter anzeigen
Bracket Kit, Front - Lug Mount · Scheibe 279,4 mm · L/H & R/H 249-10994/95
Brackets (2) - HD Front - 67-74 Camaro/Nova, 11" Rotor
€ 136,33€ 147,23inkl. MwSt.
Bracket Kit, Front - Lug Mount · Scheibe 279,4 mm · L/H & R/H 249-11536/37
Brackets (2) - HD Front - 65-76 A-Body Drum Mopar, 11" Rotor
€ 265,10€ 286,30inkl. MwSt.
Bracket Kit, Front - Lug Mount · Scheibe 273,1 mm · L/H & R/H 249-1442L/R
Brackets (2) - Front Drag - MD Pinto 71-78
€ 136,33€ 147,23inkl. MwSt.
Bracket Kit, Rear Pro Street · Scheibe 309,6 mm · L/H & R/H 249-2095/96
Brackets (2) - P/S Rear-Olds/Pont,2.81" Offset
€ 242,85€ 262,27inkl. MwSt.
Bracket Kit, Rear Pro Street · Scheibe 309,6 mm · L/H & R/H 249-2097/98
Brackets (2) - P/S Rear - Small Ford,2.66" Offset
€ 242,85€ 262,27inkl. MwSt.
Bracket Kit, Rear Pro Street · Scheibe 309,6 mm · L/H & R/H 249-2099/00
Brackets (2) - P/S Rear - Big Ford,2.36" Offset
€ 260,11€ 280,93inkl. MwSt.
Bracket Kit, Rear Pro Street · Scheibe 309,6 mm · L/H & R/H 249-2101/02
Brackets (2) - P/S Rear - Mopar/Dana,2.36" Offset
€ 286,90€ 309,86inkl. MwSt.
Bracket Kit, Rear Pro Street · Scheibe 309,6 mm · L/H & R/H 249-2103/04
Brackets (2) - P/S Rear - 12 Bolt,2.81" Offset
€ 242,85€ 262,27inkl. MwSt.
Bracket Kit, Rear Pro Street · Scheibe 309,6 mm · L/H & R/H 249-2105/06
Brackets (2) - P/S Rear - Big Ford,2.50" Offset
€ 242,85€ 262,27inkl. MwSt.
Bracket Kit, Rear Pro Street · Scheibe 309,6 mm · L/H & R/H 249-2107/08
Brackets (2) - P/S Rear - Mopar/Dana,2.72" Offset
€ 311,78€ 336,72inkl. MwSt.
Bracket Kit, Rear Pro Street · Scheibe 309,6 mm · L/H & R/H 249-2109/10
Brackets (2) - P/S Rear - New Style Big Ford,2.50" Offset
€ 242,85€ 262,27inkl. MwSt.
Bracket Kit, Rear - Drag · Scheibe 290,6 mm · L/H & R/H 249-2120/21
Brackets (2) - Rear Drag - New Style Big Ford
€ 136,33€ 147,23inkl. MwSt.
Bracket Kit, Caliper Mount · Scheibe 309,6 mm · L/H & R/H 249-2229L/R
Brackets (2) - Park Brake Calipers R/L
€ 140,05€ 151,25inkl. MwSt.
Bracket Kit, Rear Pro Street · Scheibe 309,6 mm · L/H & R/H 249-2777/78
Brackets (2) - P/S Rear - Mustang 8.8
€ 242,85€ 262,27inkl. MwSt.
Bracket Kit, Front - Lug Mount · Scheibe 273,1 mm · L/H & R/H 249-3113/14
Brackets (2) - MD-HD Front - Mopar
€ 136,33€ 147,23inkl. MwSt.
Bracket Kit, Front - Lug Mount · Scheibe 273,1 mm · L/H & R/H 249-3447/48
Brackets (2) - MD Front - Mopar
€ 147,28€ 159,07inkl. MwSt.
Bracket Kit, Front - Lug Mount · Scheibe 273,1 mm · L/H & R/H 249-3511/12
Brackets (2) - MD Front - Mopar
€ 136,33€ 147,23inkl. MwSt.
Bracket Kit, Front - Lug Mount · Scheibe 273,1 mm · L/H & R/H 249-3681/82
Brackets (2) - MD Front - Mopar
€ 136,33€ 147,23inkl. MwSt.
Bracket Kit, Rear - Drag · Scheibe 290,6 mm · L/H & R/H 249-3981/82
Brackets (2) - Rear Drag - Mopar
€ 136,33€ 147,23inkl. MwSt.
Bracket Kit, Front - Lug Mount · Scheibe 298,5 mm · L/H & R/H 249-4302/03
Brackets (2) - MD Front, 65-69 Mustang
€ 136,33€ 147,23inkl. MwSt.
Bracket Kit, Front - Lug Mount · Scheibe 273,1 mm · L/H & R/H 249-4501/02
Brackets (2) - MD Front, 87-93 Mustang
€ 136,33€ 147,23inkl. MwSt.
Bracket Kit, Rear - Drag · Scheibe 290,6 mm · L/H & R/H 249-4541/42
Brackets (2) - Rear Drag - 12 Bolt
€ 136,33€ 147,23inkl. MwSt.
Bracket Kit, Rear Pro Street · Scheibe 309,6 mm · L/H & R/H 249-5234/35
Brackets (2) - P/S Rear - 12 Bolt C-Clip Eliminator
€ 242,85€ 262,27inkl. MwSt.
Bracket Kit, Rear - Drag · Scheibe 290,6 mm · L/H & R/H 249-5253/54
Brackets (2) - Rear Drag - Dana
€ 136,33€ 147,23inkl. MwSt.
Bracket Kit, Rear Pro Street · Scheibe 309,6 mm · L/H & R/H 249-5620/21
Brackets (2) - Pro Street - Mopar/Dana - Green Snap Ring, 2.36" Offset
€ 286,90€ 309,86inkl. MwSt.
Bracket Kit, Rear - Drag · Scheibe 290,6 mm · L/H & R/H 249-5715/16
Brackets (2) - Drag - Chevy 3.15" Bearing
€ 136,33€ 147,23inkl. MwSt.
Bracket Kit, Rear Pro Street · Scheibe 309,6 mm · L/H & R/H 249-5719/20
Brackets (2) - Pro Street - Chevy 3.15" Bearing, 2.81" Offset
€ 242,85€ 262,27inkl. MwSt.
Bracket Kit, Front - Lug Mount · Scheibe 309,6 mm · L/H & R/H 249-6935/36
Brackets (2) - ST Rod, 71-78 Pinto, 12.19" Rotor
€ 143,12€ 154,57inkl. MwSt.
Bracket Kit, Disc/Drum - FDL · Scheibe 309,6 mm · L/H & R/H 249-7108/09
Brackets (2) - Disc/Drum, Big Ford-Old, 2.36" Offset, 1pc vented
€ 509,08€ 549,80inkl. MwSt.
Bracket Kit, Disc/Drum - FDL · Scheibe 309,6 mm · L/H & R/H 249-7110/11
Brackets (2) - Disc/Drum, Big Ford-New, 2.50" Offset, 1pc vented
€ 509,08€ 549,80inkl. MwSt.
Bracket Kit, Disc/Drum - FDL · Scheibe 309,6 mm · L/H & R/H 249-7112/13
Brackets (2) - Disc/Drum,Small Ford, 2.66" Offset, 1pc vented
€ 509,08€ 549,80inkl. MwSt.
Bracket Kit, Disc/Drum - FDL · Scheibe 309,6 mm · L/H & R/H 249-7114/15
Brackets (2) - Disc/Drum, 12 Bolt Chevy, 2.81" Offset, 1pc vented
€ 509,08€ 549,80inkl. MwSt.
Bracket Kit, Disc/Drum - FDL · Scheibe 309,6 mm · L/H & R/H 249-7116/17
Brackets (2) - Disc/Drum, Mpr/Dana-Grn w/Ring, 2.36" Off,1 pc vented
€ 509,08€ 549,80inkl. MwSt.
Bracket Kit, Disc/Drum - FDL · Scheibe 309,6 mm · L/H & R/H 249-7118/19
Brackets (2) - Disc/Drum, Mustang 8.8, 2.50" Offset, 1pc vented
€ 509,08€ 549,80inkl. MwSt.
Hier stehen die ersten 40 von 210 Haltern. Diese Halter in der Tabelle ansehen und eingrenzen
