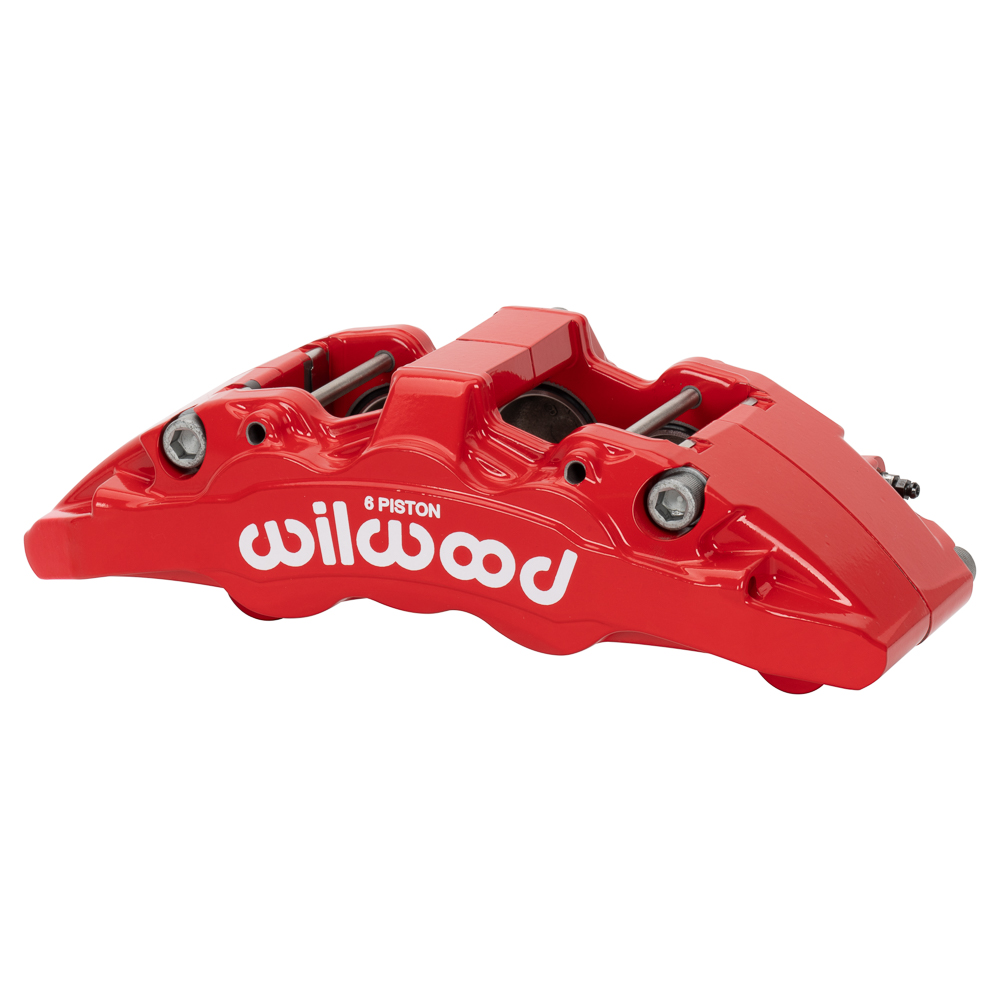

AeroDM Lug Mount

Wilwood · Bremssättel

AeroDM Lug Mount

The new AeroDM forged six piston calipers deliver heavy duty stopping power for the street and off road. The caliper incorporates race technology into a body design with widespread adaptability. With variable lug geometry the AeroDM offers direct spindle mounting with proprietary 13.38” diameter rotors on many late model trucks with multiple options for piston volume give this caliper the versatility necessary to suit all types of heavy weight braking requirements. The new AeroDM the latest innovation to the Aero4/6 series of calipers. It has been designed with internal fluid ports that eliminate the external fluid cross-over tubes and massive center bridge assembly for extra rigidity.

€ 964,25 € 1.041,37

inkl. MwSt.

Teilenummer: 120-16826-RD

Diese Nummer bestellen Sie.

Gewicht: 3,97 kg

Technische Daten

Modell
AeroDM Lug Mount
Oberfläche
Red Powder Coat
Befestigung
Lug Mount
Kolbenzahl
6
Kolbendurchmesser
44,5 mm / 41,2 mm
Kolbenfläche
4.206,4 mm²
Befestigungsmaß
192 mm
Scheibenstärke
31,8 mm
Max. Scheibendurchmesser
339,9 mm
Belagvolumen
85,2 cm³
Belagform
6617
Kolbenmaterial
Stainless
