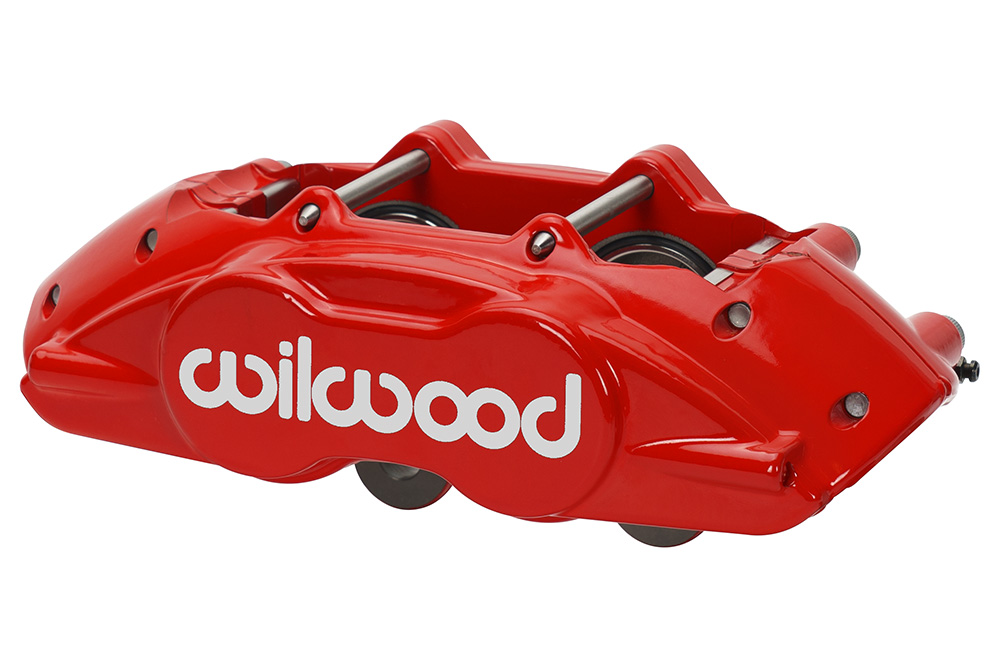

D11 Caliper
Wilwood's D11 four piston calipers are a direct bolt-on replacement for the original equipment Kelsey-Hayes calipers on all 1965-67 Ford Mustang, Fairlane, Ranchero, Falcon, Comet, and Mercury Cougar. Forged billet aluminum bodies, internal fluid crossover, stainless steel pistons, and high-temperature seals put an end to the rust, leaking, bore pitting and seal failures that plague the OE caliper design. D11 calipers can use factory-style brake pads, and fit in stock location with original brackets and rotors.
inkl. MwSt.
Teilenummer: 120-16510-RD
Diese Nummer bestellen Sie.
Gewicht: 2,36 kg
Technische Daten
- Modell
- D11 Caliper
- Oberfläche
- Red Powder Coat
- Befestigung
- Lug Mount
- Kolbenzahl
- 4
- Kolbendurchmesser
- 41,2 mm
- Kolbenfläche
- 2.658,1 mm²
- Befestigungsmaß
- 69,8 mm
- Scheibenstärke
- 23,9 mm
- Max. Scheibendurchmesser
- 287 mm
- Belagvolumen
- 95 cm³
- Belagform
- Brake Pad Plate # D11
- Kolbenmaterial
- Stainless
Revision & Ersatzteile
Laut Wilwood gehören diese Teile zu diesem Bremssattel.
-
Dichtsatz (Revisionssatz) 130-17057
SQ-Ring & Seal Kit - 1.62/1.62" — Square Seal & Dust Seal- 8 pk.
€ 34,35€ 37,10inkl. MwSt.
O-Ringe Crossover 130-10540
O-Ring Kit - .19 DL/DP Crossover — Round Seal - 6 pk.
€ 15,22€ 16,44inkl. MwSt.
Kolben Ø 41,2 mm 200-7519
Piston - 1.62" x 1.03" SS
€ 18,98€ 20,51inkl. MwSt.
Belaghaltestifte 180-17958
Retaining Pin Kit-Pad -2.36 x 3.46 — 4 Pack (for 2 calipers)
€ 26,70€ 28,85inkl. MwSt.
Entlüftungsschrauben 220-0627
Bleed Screw Assy / 4 pk.
€ 19,78€ 21,37inkl. MwSt.
