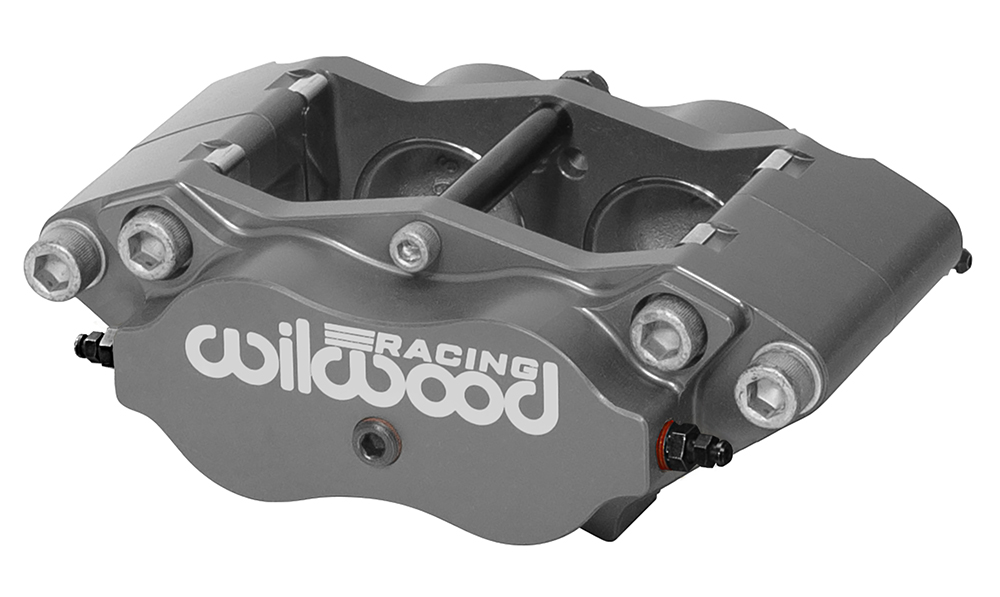

Billet Narrow Dynalite Radial Mount

Wilwood · Bremssättel

Billet Narrow Dynalite Radial Mount

Wilwood's venerable DynaLite calipers are used in all forms of racing, and the latest Billet Narrow Dynalite Radial Mount (NDLR) series are better than ever. Starting at just 3.20 pounds, this compact and lightweight caliper now incorporates a more rigid radial mount design. Engineered with a spacer-less body specifically for .38”, .810” and 1.00" width rotors and a center bridge bolt adding to overall caliper strength and positive retention of the top-loaded pads. A durable aluminum-oxide ceramic Mil-Spec Type III hard-anodized finish further enhances the durability of the caliper by resisting bore wear and surface abrasion. Billet NDLR calipers can be directly mounted over studs on a 4.75" center, or used with a radial mount bracket kit in place of a tab-mount caliper. Internal damping springs, internal fluid crossover, controlled retraction in-bore seals, and 3/8” cross bolts for added strength and rigidity all adds up to consistent pedal feel from start to finish. Uses type 7816 brake pads with many Wilwood compound options to fine-tune your driving style and track conditions.

€ 349,19 € 377,12

inkl. MwSt.

Teilenummer: 120-15565-SI

Diese Nummer bestellen Sie.

Gewicht: 1,61 kg

Technische Daten

Modell
Billet Narrow Dynalite Radial Mount
Oberfläche
Type III Anodize
Befestigung
Radial Mount
Kolbenzahl
4
Kolbendurchmesser
41,2 mm
Kolbenfläche
2.658,1 mm²
Befestigungsmaß
120,6 mm
Scheibenstärke
20,6 mm
Max. Scheibendurchmesser
309,6 mm
Belagvolumen
49,2 cm³
Belagform
7816
Kolbenmaterial
Stainless

Passende Halter

Ausgewählt nach dem gleichen Befestigungsmaß (120,6 mm, Radial Mount). Bitte die Maße prüfen: Bolzen- oder Schraubendurchmesser und die Bohrungen im Bremssattel können abweichen.
