Wilwood · Bremssättel

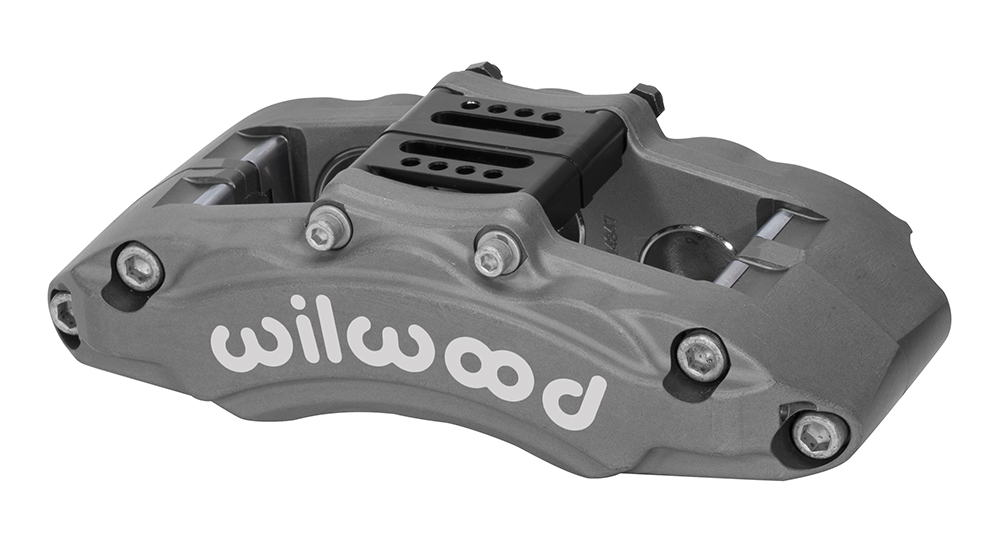

AT6 Lug Mount
Wilwood’s AT6 forged aluminum racing caliper is designed, engineered, and purpose built to endure the rigors of off-road truck and buggy racing. The AT6 combines the latest technologies in manufacturing materials and processes in the most popular mounting configuration built “tough enough for Baja.” The caliper covers a wide range of racing classes in SCORE, BITD, Ultra-4, Pre-Runner, and all similar sanctions of desert and off-road competition, and is well suited for both short course and endurance length events. AT6 calipers feature high-strength, lightweight forged aluminum lug mount body with the popular 6.88” mount centers. MIL-Spec Type III hard anodizing is applied to all surfaces on all models for long wear and abrasion resistance. A massive bolt-in center bridge support adds stiffness and top-side pad access. Thermlock pistons are also available as an upgrade.
inkl. MwSt.
Teilenummer: 120-14850
Diese Nummer bestellen Sie.
Gewicht: 2,81 kg
Technische Daten
- Modell
- AT6 Lug Mount
- Oberfläche
- Type III Anodize
- Befestigung
- Lug Mount
- Kolbenzahl
- 6
- Kolbendurchmesser
- 44,5 mm / 35,1 mm
- Kolbenfläche
- 3.483,9 mm²
- Befestigungsmaß
- 174,8 mm
- Scheibenstärke
- 18,3 mm
- Max. Scheibendurchmesser
- 312,4 mm
- Belagvolumen
- 81,9 cm³
- Belagform
- 7516
- Kolbenmaterial
- Stainless
